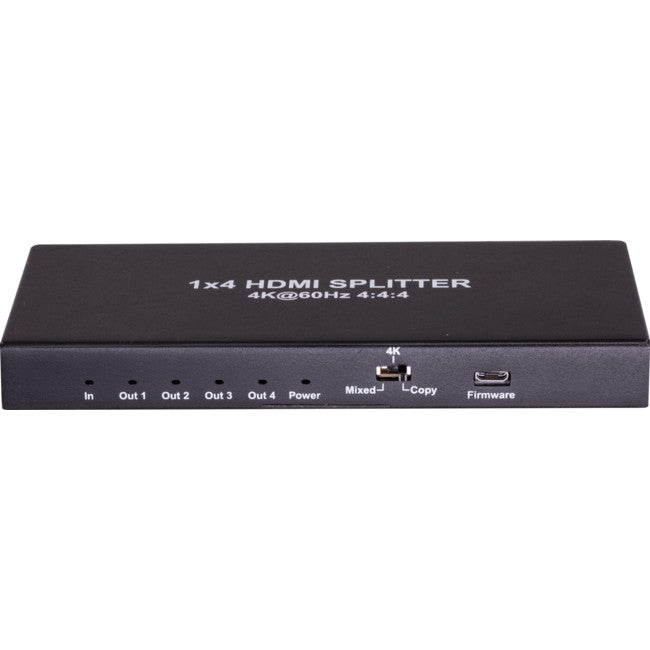

4 Way 18GBPS UHD 4K HDMI Splitter


Pro2's high quality HDMI splitters take a single input— Blu-ray, HD TV, PayTV (Foxtel), Xbox, PlayStation etc. — and split them to multiple outputs without any signal loss. This state of the art 4K HDMI 2.0 UHD splitter is capable of displaying resolutions up to 3840 x 2160 and is also ideal for today's 1080p 3D signals and is future proofed for many years to come.

Our range provides an ideal solution from a simple home scenario to a massive 8 monitor commercial installation. All models are built to last, constructed with a solid and robust metal casing. The Pro2 HDMI splitters are also powered, meaning they can help extend your cable runs by equalising your signals and re-clocking them before passing them onto the displays.


  • Slim design, great for hiding behind TVs
  • Up to 4K HDMI 2.0 UHD
  • Great for today's 1080p 3D
  • Supports 36 bit Deep Colour
  • Display resolutions up to 3840 x 2160
  • Powered for extended cable runs, equalising signals and re-clocking output
  • Built-in EDID simulator and HDCP key-set allows each output to work independently when connecting to an HDMI display
  • Robust metal case of solid construction


  • Supports HD TV resolutions up to 4Kx2K@30Hz 24bit RGB/YCbCr 4:4:4/YCbCr 4:2:2 and up to 4Kx2K@60Hz 12bit YCbCr4:2:0 & 3D up to 1080p@60Hz
  • Deep colour: 36 bit
  • Supports multi-channel digital audio formats: DTS-HD Master Audio, Dolby TrueHD, LPCM7.1 channel audio formats
  • Total transmission distances of 15m supported
  • Maximum bandwidth: 18 Gbps
  • Supports all the latest HDMI specs including 3D, HDR and more
HDCP Compliance v2.2
HDMI Resolutions

480p / 720p / 1080i / 1080p @ 60 Hz / 4K x 2K @ 24 Hz
4K x 2K out @60G YUV4:4:4

Audio Formats LPCM /Dolby-AC3 / DTS 7.1 / DSD
Data Transfer Speed 18 Gbps
Input Video signal 5.0 Volts P-P (TTL) Single Link
Video Amplifier Bandwidth 140 MHz
Transmission Distance 15 metres using standard 26AWG cable
Power Supply (included) 5V 1A DC
