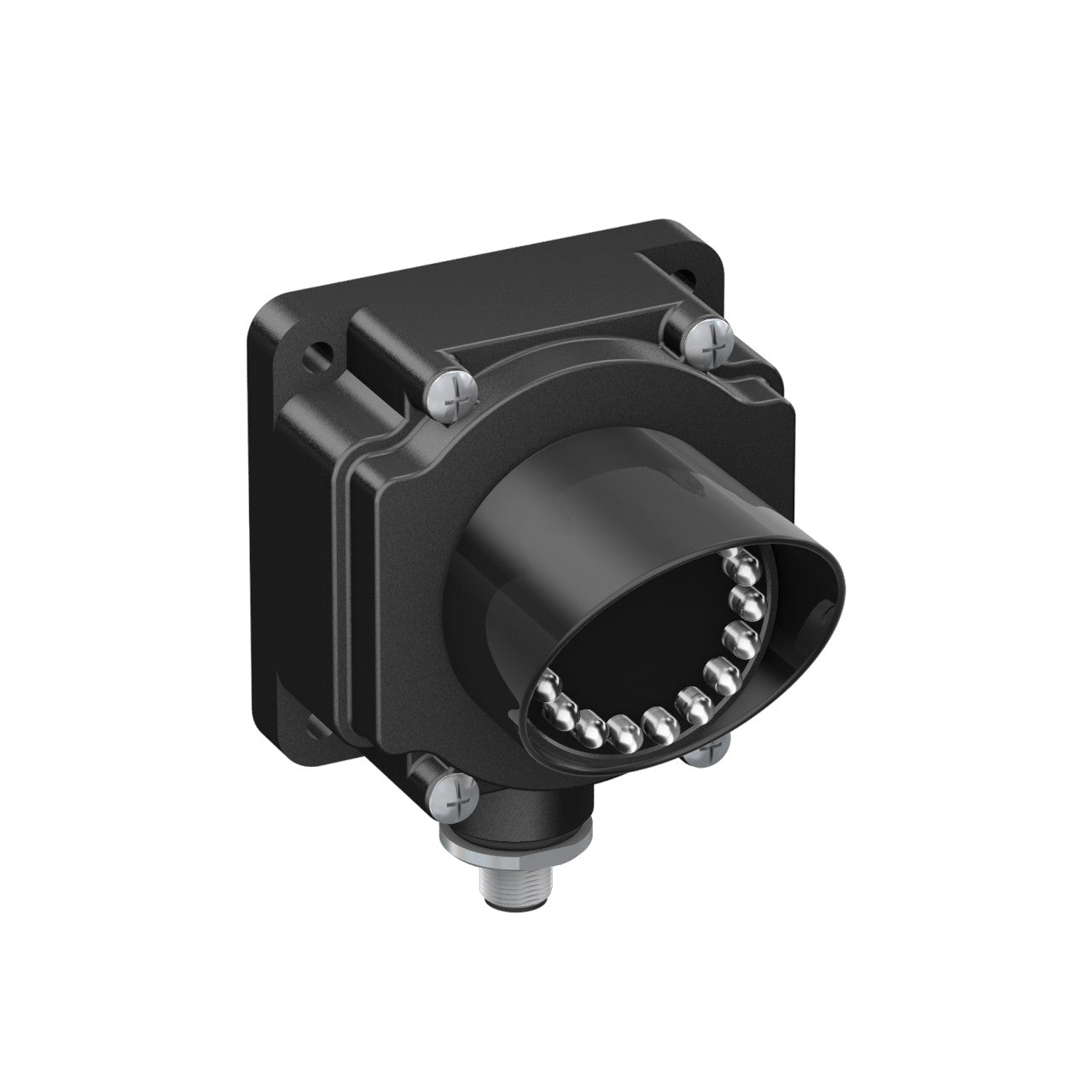

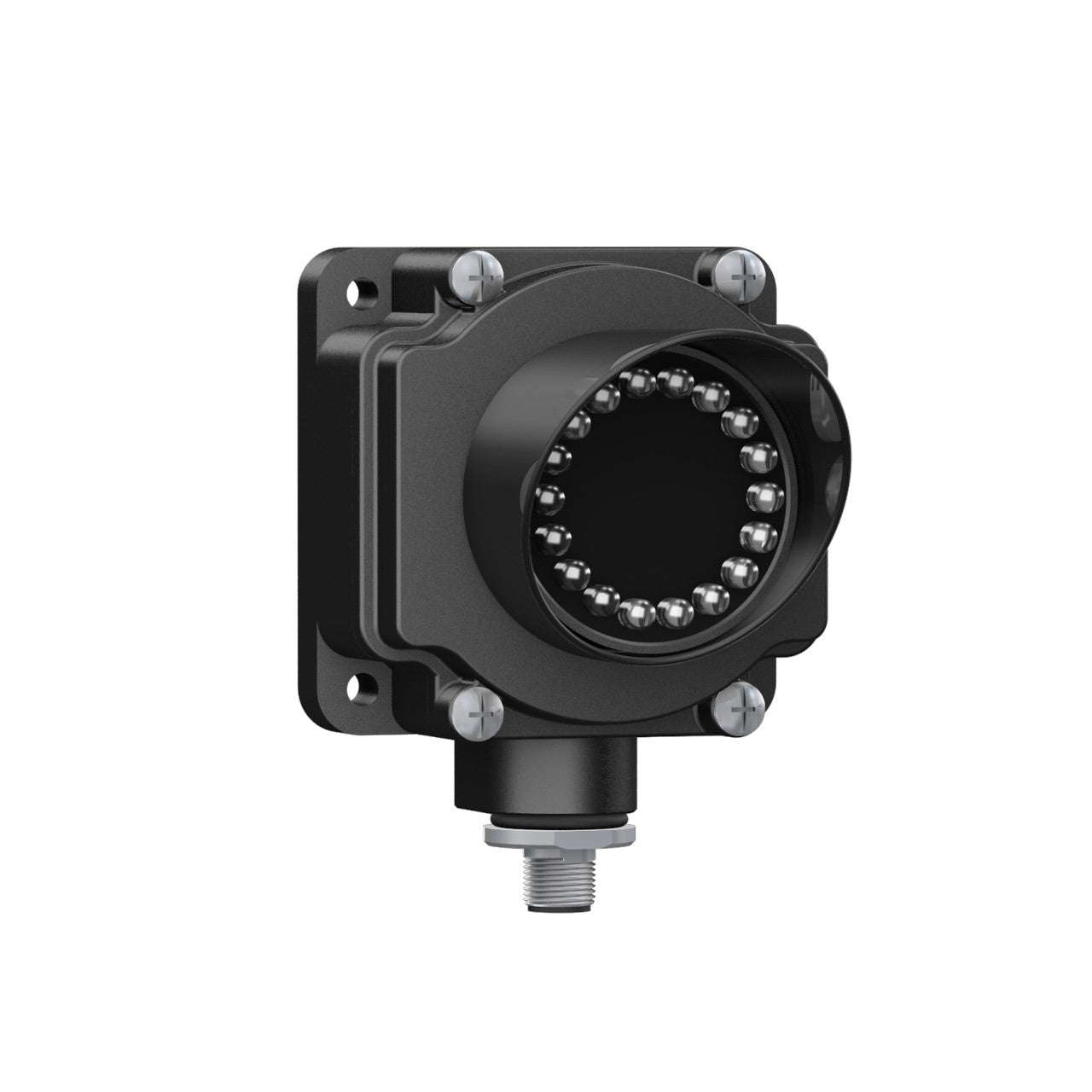

Banner SP150GRYPQ EZ-LIGHT 1 Aspect Multicolour Red/Yellow/Green Traffic Light, 15-30VDC, IP67

Indicators for signalling applications

• Preassembled indicators for signaling and traffic control
• Intense levels of light output for outdoor applications
• Sun shield included
• Controlled field of view for signage and narrow lane use
• Rugged, cost-effective and easy-to-install
• Compact devices are completely self-contained — no controller needed
• Immune to EMI and RFI interference

Specifications

• IP67
• 15-30VDC
• Multi Colour Red/Yellow/Green in 1 module

• 120mA
• Connection type: Integral M12 4pin
• Input Type: PNP
• Operating Temperature -40 to +50°C
• Meets Mil. Std. 202F requirements method 201A. Also meets IEC 947-5-2; 30G 11 ms duration, half sine wave.
• Polycarbonate body

To increase efficiency and safety at loading docks, it’s necessary for shipping companies to control traffic and communicate status at the various bays. A rugged, highly-visible solution is required.

Downloads

Data sheet (PDF)
