BNR Single Aspect 100mm LED Traffic Lights 12-24VDC or 85-265VAC - Colours with Flasher Module Option


Flasher Module (12-24VDC Model Only)

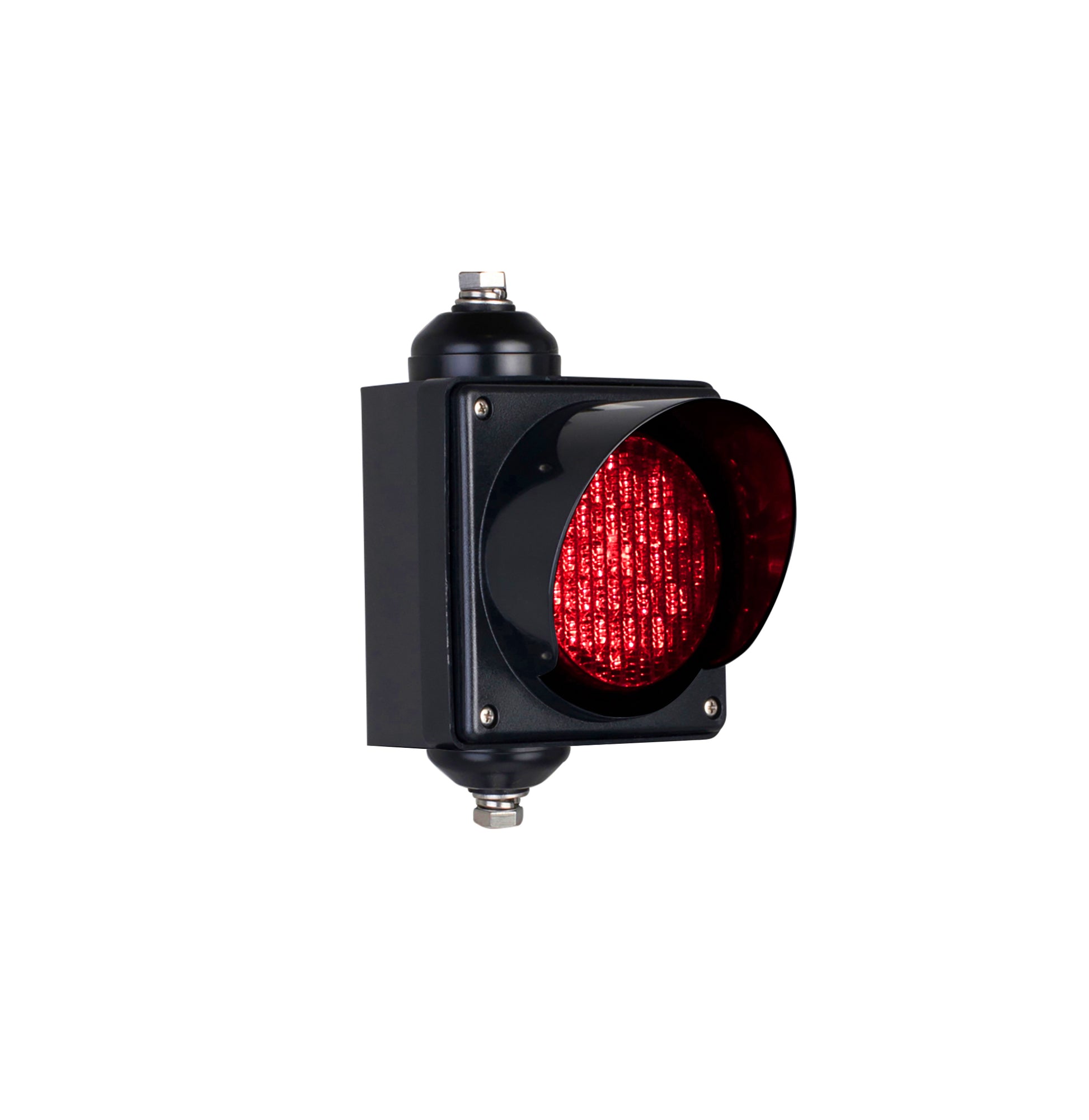

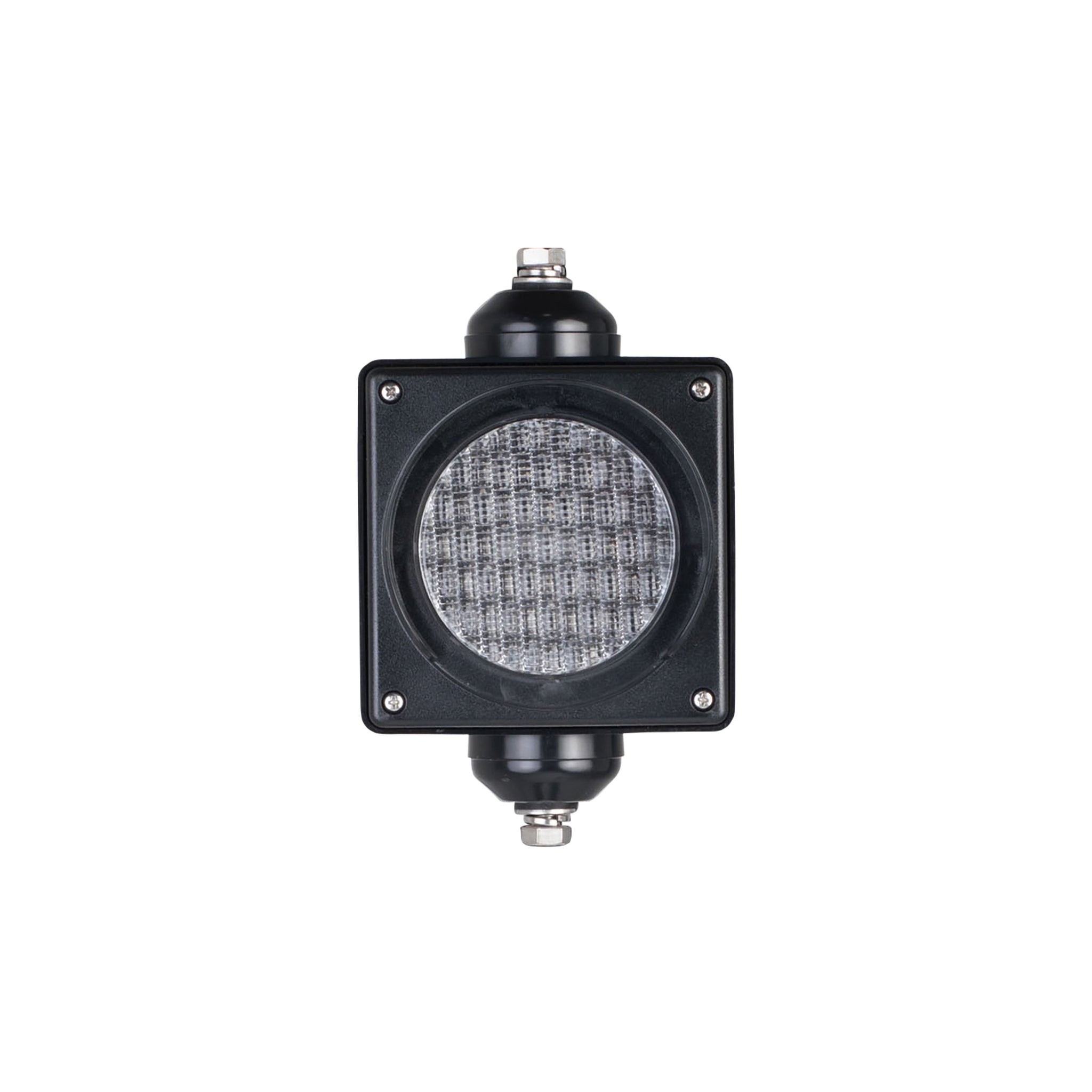

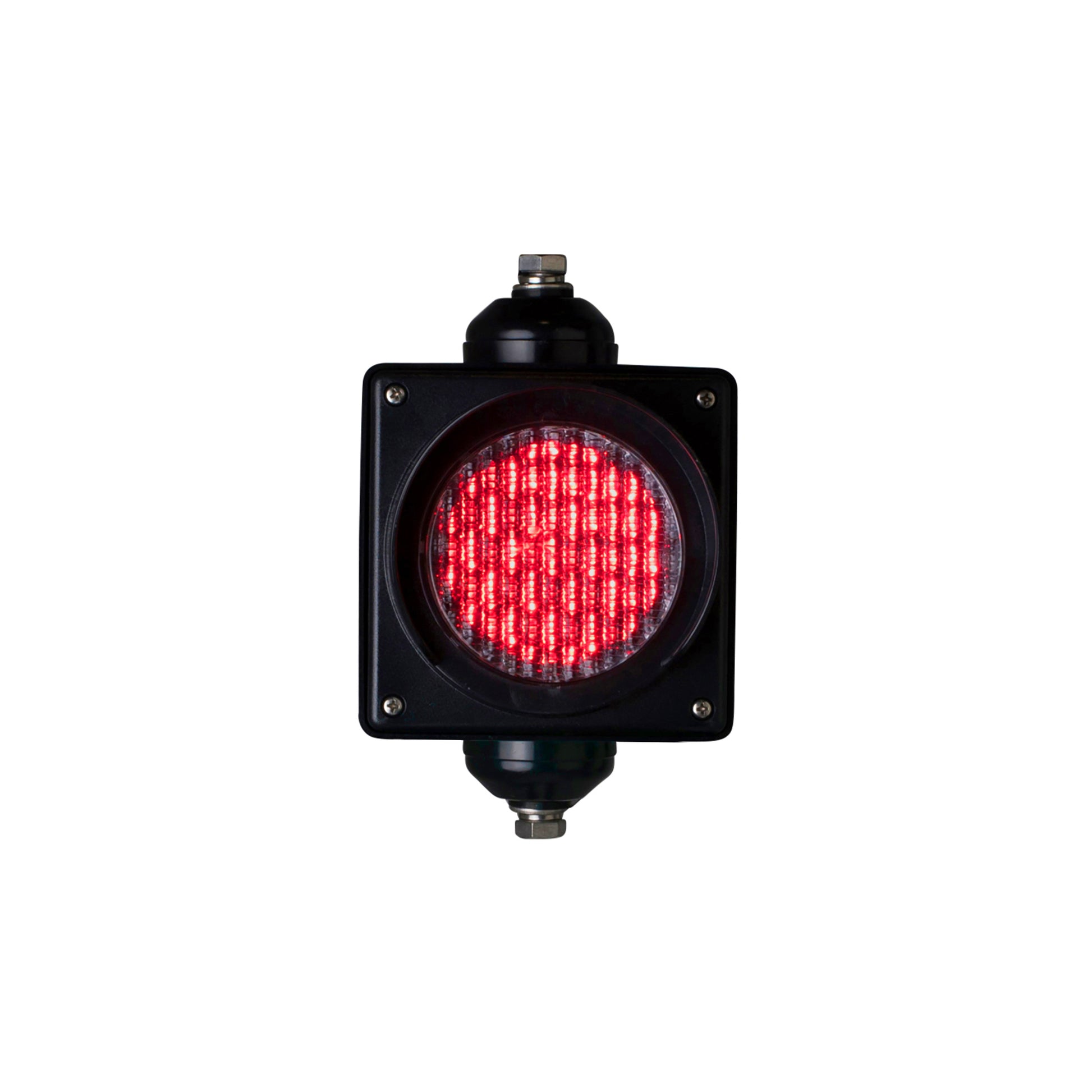

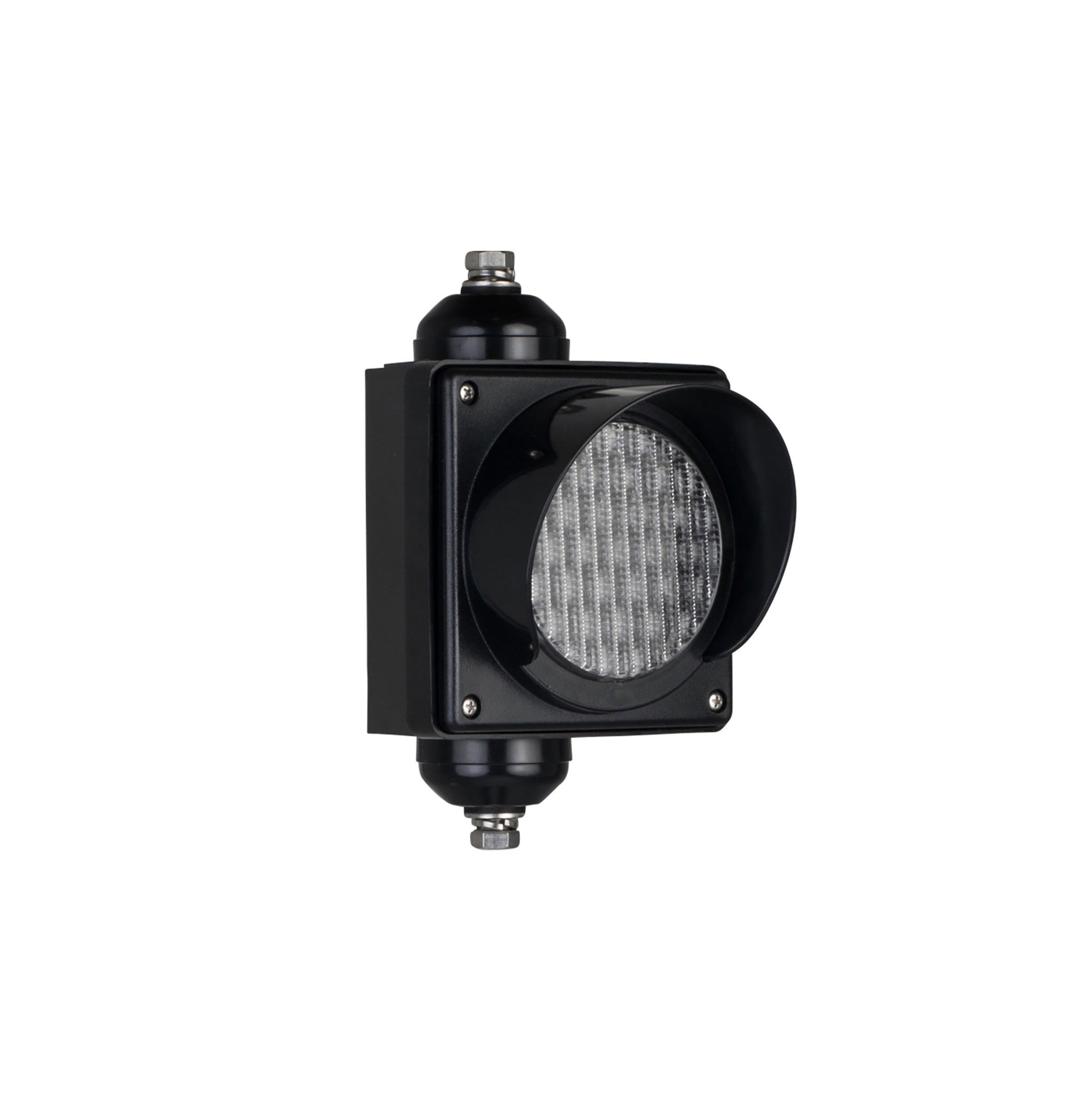

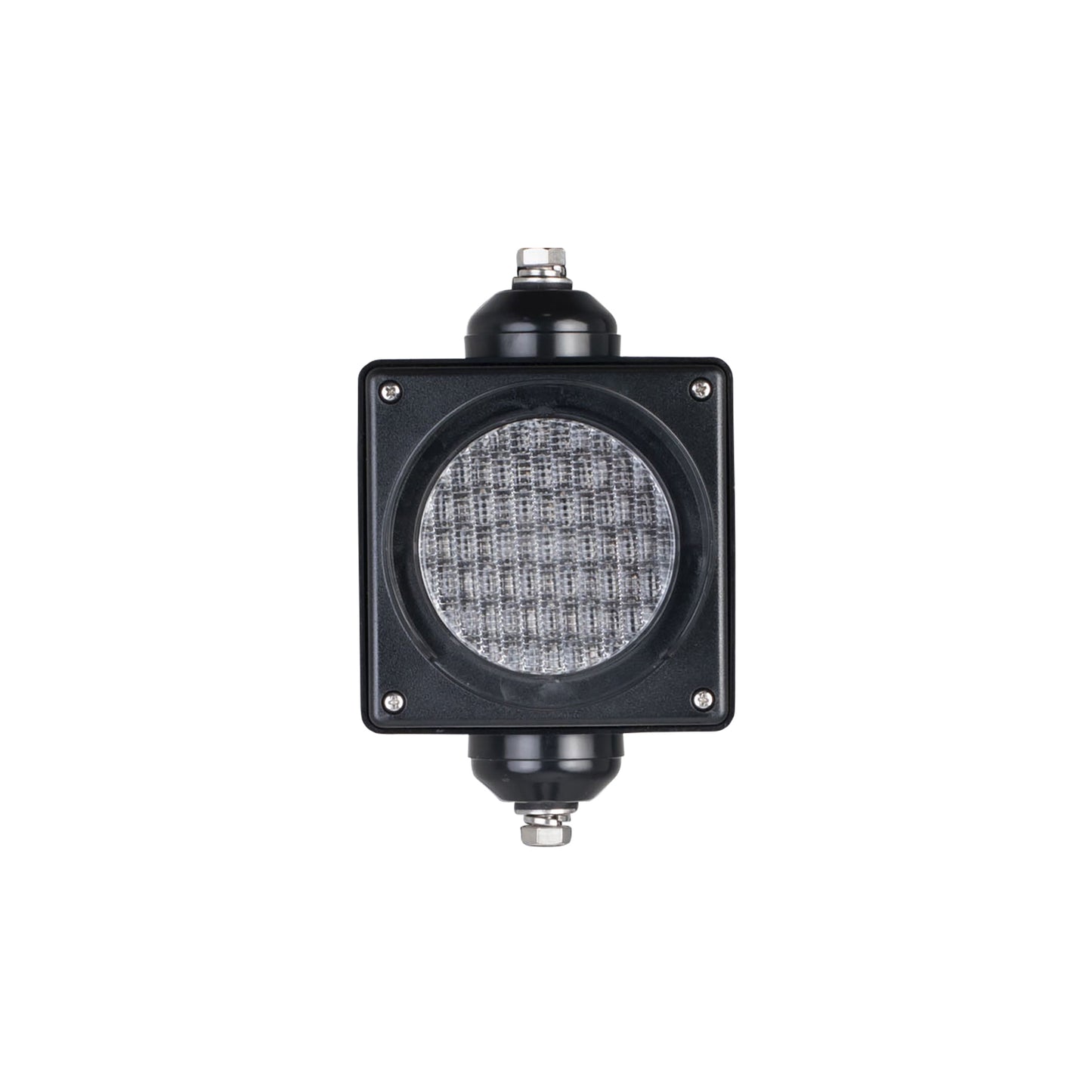

Single Aspect 100mm LED Traffic Light 12-24VDC or 85-265VAC

Single aspect 100mm LED Traffic light comes with sun visor and right angle mounting brackets to be easily mounted to a pole or wall. With optional solid state flashing module (12-24VDC only). Allows traffic light to flash at 60FPM, great for warning, caution area signalling and status indication.

The manufacturers quality management system is in compliance with GB/T19001-2008 and ISO9001:2008 standard. Our products are CE, RoHs and IP55 certified, comply with EN12368:2006 traffic control equipment regulation and come with 3 years warranty.


  • Comply with: CE, GB14887,EN12368, RoHS and other related international standards.
  • Double layer optical lens for even light distribution
  • Energy saving, power consumption 90% less than incandescent bulbs
  • High-intensity and efficient LED source, Life span more than 80,000 hrs.
  • Rational designed optical lens, anti-phantom effect, optimal viewing angle.
  • IP55 Dust-proof and weatherproof construction. Environmental friendly, RoHS compliant.
  • Assembled in Melbourne, Australia


Input Voltage: 12-24VDC or 85-265VAC
Power Consumption 12-24VDC:

90mA @ 12VDC, 50mA @ 24VDC (Red and Yellow Module)

150mA @ 12VDC, 90mA @ 24VDC (Green Module)

Power Consumption 85-265VAC: 1 watt
Lens Diameter: 100mm
Light Intensity: ≥150cd (Red and Yellow) ≥220 cd (Green)
Dominate Wavelength: Red 625nm +/- 5, Yellow 590nm +/- 5, Green 505nm +/- 2
Working Temperature: -40ºC ~ +80ºC
Rating: IP55 Weather Resistant
Housing: UV Resistant Poly-carbonate
Working Humidity: ≤0.97
Average Life of LEDs: 80,000 Hours
View Distance: ≤200m
Mass: 0.9kg
Sun Visors: Rotatable - can be mounting horizontal or vertical

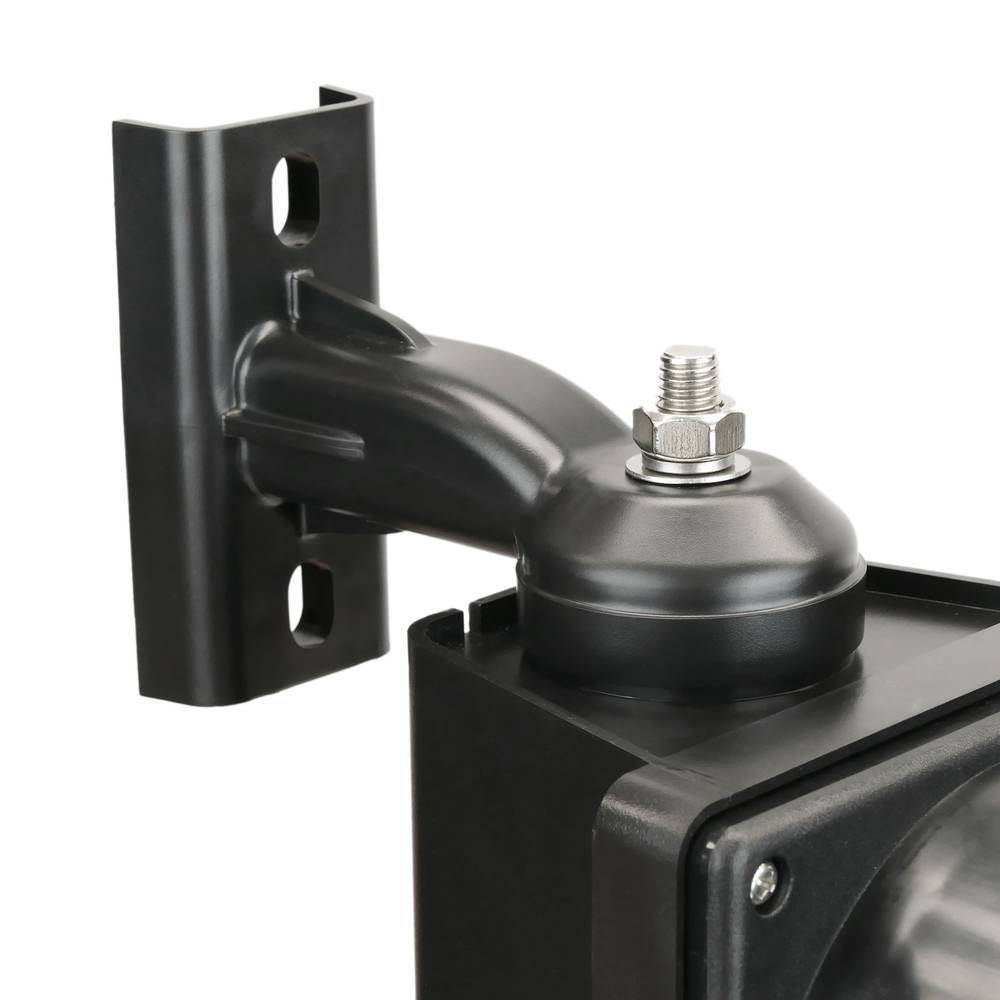

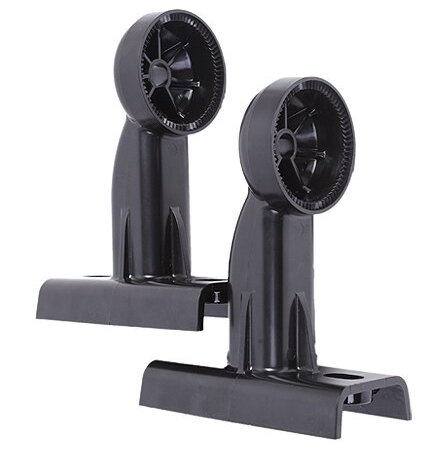

Right angle metal mounting brackets included


12-24VDC - Terminal 1: (Neg -), Terminal 2: (Pos +)

85-265VAC - Terminal 1: (Neutral N), Terminal 2: (Active L)
