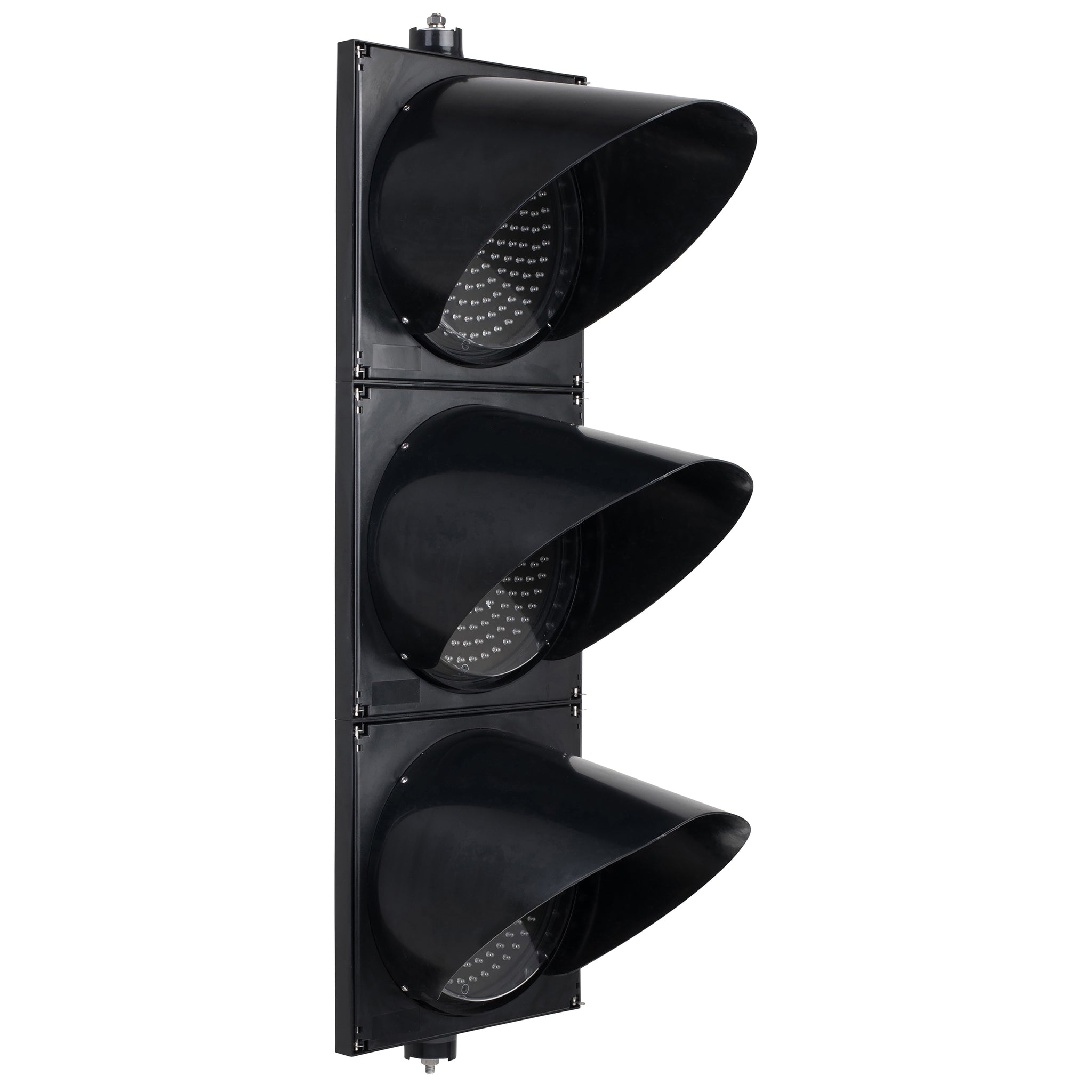

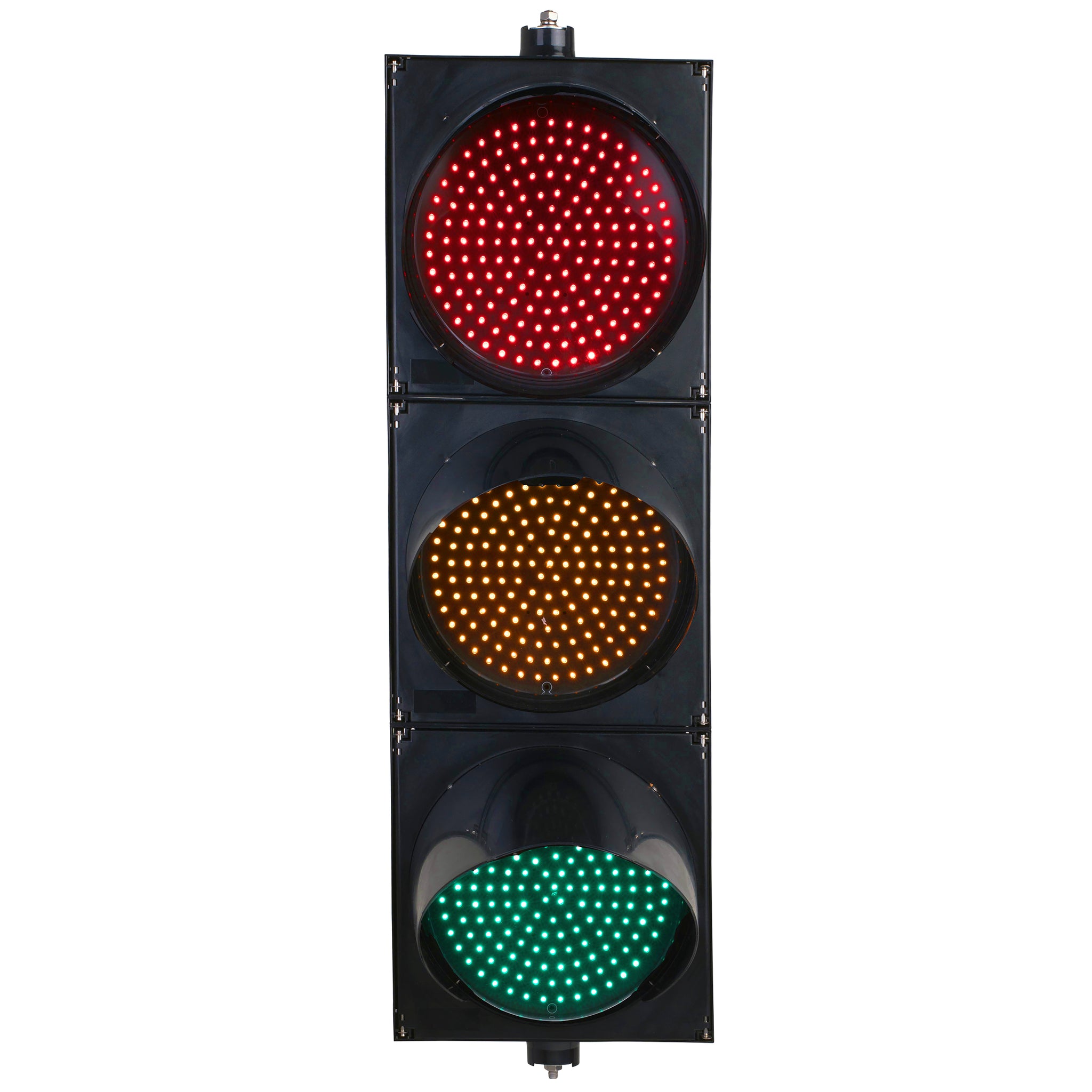

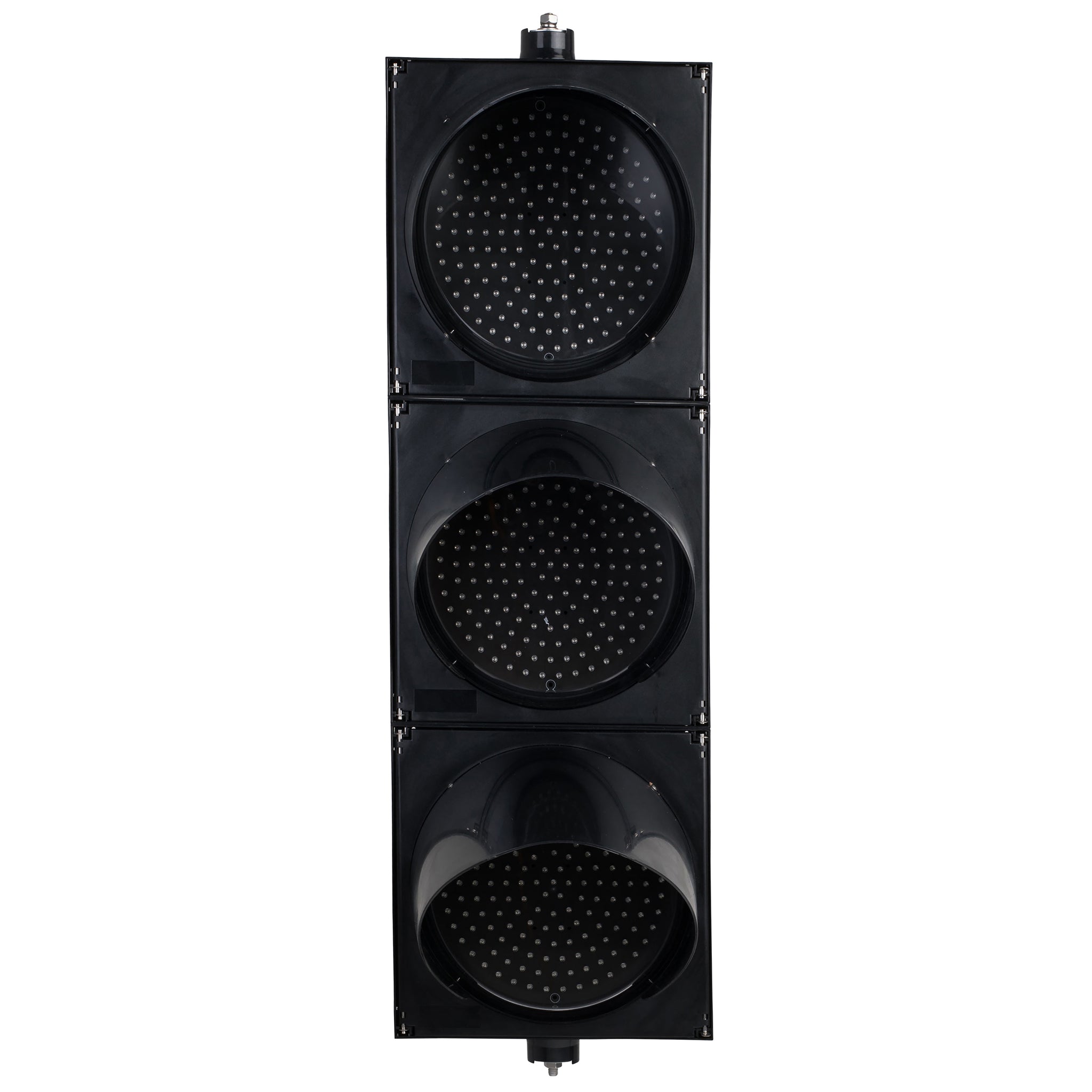

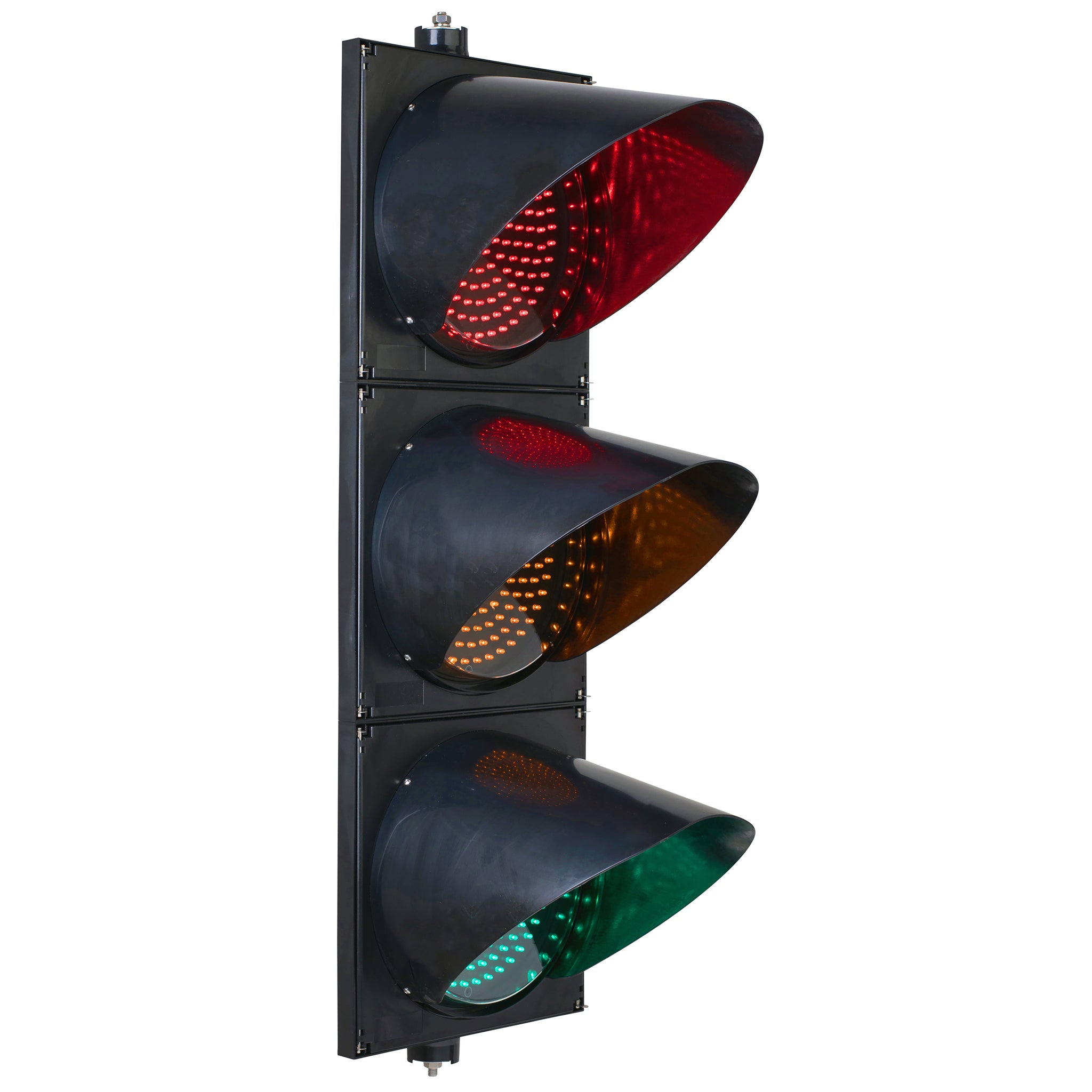

3 Aspect 300mm LED Traffic Light 12-24VDC or 85-265VAC
Ideal for traffic control, vehicle depots, garage, weighbridge applications, race tracks and mine sites where view distance needs to exceed 300 meters.

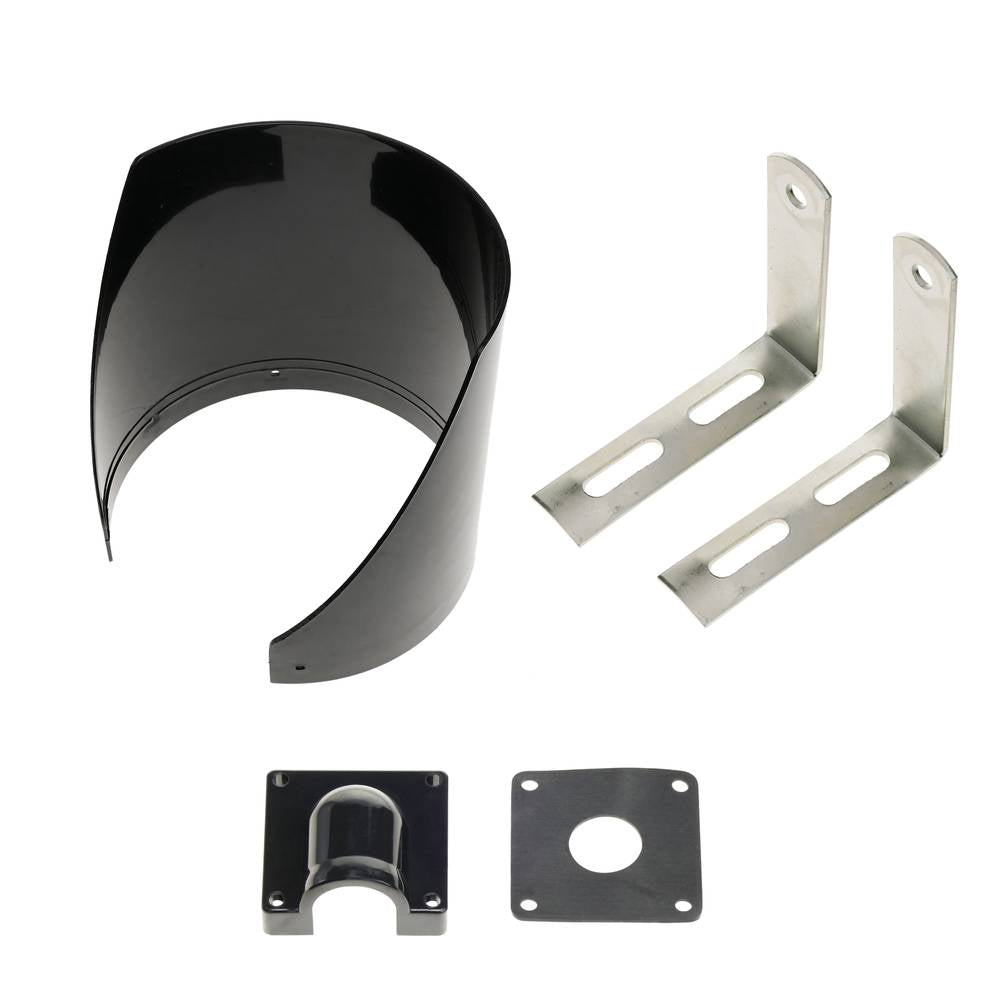

3 aspect 300mm LED Traffic light comes with sun visor and right angle metal mounting brackets which can be easily mounted to a pole or wall. M20 entry at the back for used with nylon gland or use the provided conduit hood for use with flexible conduit.
Wide range of different modules to choose from including Red X and coloured arrows. Arrow modules can be easily rotated to point desired direction. Target board options available to draw more attention to the traffic light.
The manufacturers quality management system is in compliance with GB/T19001-2008 and ISO9001:2008 standard. Our products are CE, RoHs and IP55 certified, comply with EN12368:2006 traffic control equipment regulation and come with 3 years warranty.
Comply with: CE, GB14887,EN12368, RoHS and other related international standards.
Energy saving, power consumption 90％ less than incandescent bulbs
High-intensity and efficient LED source, Life span more than 80,000 hrs.
Rational designed optical lens, anti-phantom effect, optimal viewing angle.
IP55 Dust-proof and weatherproof construction. Environmental friendly, RoHS compliant.
- For view distance up to 500 Meters
- Assembled in Melbourne, Australia
Input Voltage: 12-24VDC or 85-265VAC
Power Consumption 12-24VDC:
400mA @ 12VDC, 310mA @ 24VDC (Red and Yellow Module)
570mA @ 12VDC, 390mA @ 24VDC (Green Module)
Power Consumption 85-265VAC: 4 watts per module
Lens Diameter: 300mm
Light Intensity: >4000mcd/m
Dominate Wavelength: Red 625nm +/- 5, Yellow 590nm +/- 5, Green 505nm +/- 2
Working Temperature: -40ºC ~ +80ºC
Rating: IP55 Weather Resistant
Housing: UV Resistant Poly-carbonate
Working Humidity: ≤0.97
Average Life of LEDs: 80,000 Hours
View Distance: ≤500m
Sun Visors: Rotatable - can be mounting horizontal or vertical
Right angle metal mounting brackets included
12-24VDC - Terminal 1: (Neg -), Terminal 2: Module 1 (Pos +), Terminal 3: Module 2 (Pos +), Terminal 4: Module 3 (Pos +)
85-265VAC - Terminal 1: Common (Neutral N), Terminal 2: Module 1 (Active L), Terminal 3: Module 2 (Active L), Terminal 4: Module 3 (Active L)
