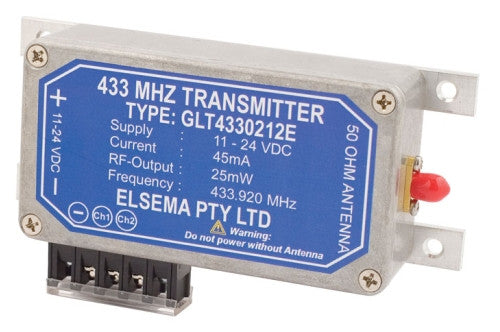

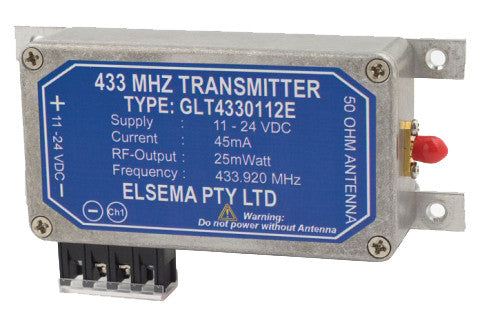

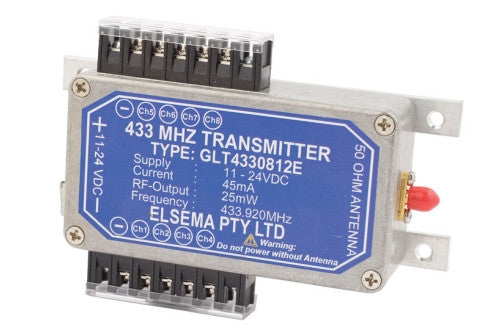

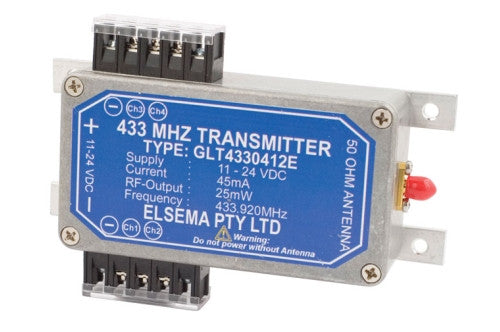

ELSEMA Long Range, GIGALINK™ Series 433MHz Base Station Transmitter

ELSEMA

Model

Allowing uses to install their own pushbuttons and antenna to unit for a more robust perminent option

These base station 433MHz GIGALINK™ transmitters can operate up to 1000 metres. These GIGALINK™ transmitters can be programmed to the 433MHz Gigalink receivers.

The transmitters are available with 1, 2, 4 and 8 inputs. The transmission is secure with over 4 billion code combinations.

Features

  • Available for 1, 2 ,4 and 8 channel applications
  • Over 4 billion code combinations
  • Wire in push buttons or switches easily on the terminal blocks
  • Built in LED indicates transmission
  • Compatible with all GLR433 series receivers
  • Available with durable alloy metal case, E in the part number or no case, NC
  • Selectable transmission modes, off delay, continuous and one burst

Specifications

  • Operating range of up to 1000 metres (varies upon receiver antenna & location)
  • 25mWatt 433MHz transmission.
  • 20uA on standby and 45mA at 12VDC supply while transmitting
  • Operating frequency: 433.920 MHz (other frequencies available on request)
  • Selectable transmission modes, off delay, continuous and one burst

Click here for user manual
