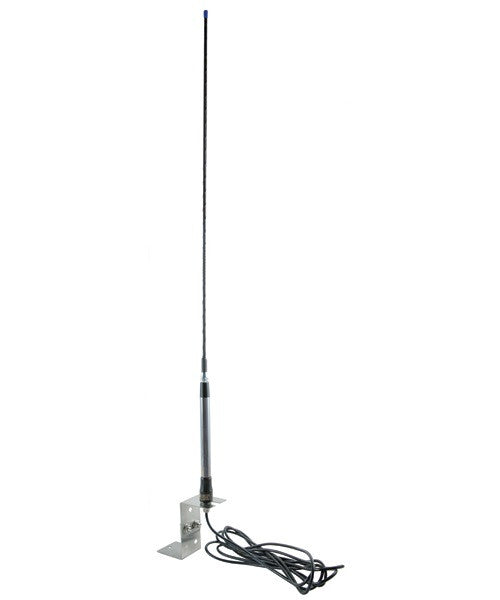

High Gain 433MHz antenna with coaxial cable and SMA connector

ELSEMA

To be used with 433MHz Gigalink Receivers

The ANT433M is a ground independent colinear antenna with a low angle of radiation. The term ground independent relates to its ability to be completely independent of the need for negative grounding (Earth). This feature allows the antenna to work effi ciently in a wide variety of applications. Its low VSWR and high gain makes this antenna suitable for applications that require extended range.

Features

  • Stainless steel construction
  • High gain at 6.0dBi
  • Tuned to the 433MHz band
  • Includes low loss cellfoil coaxial cable and mounting bracket
  • High quality SMA connector at the end of the coaxial cable

Specifications

Frequency - 428 to 437Mhz

Turned Bandwidth - 9Mhz

Gain - 6.0 dBi

Impedance - 50 Ohms

Maximum Power - 50 Watt

Radiated Pattern - Low Angle Omni Directional

Length - 1 metre

Weight - 420 grams

Coaxial Length - 3.6 Meters, with N-Connector Base

Termination - SMA, Standard
