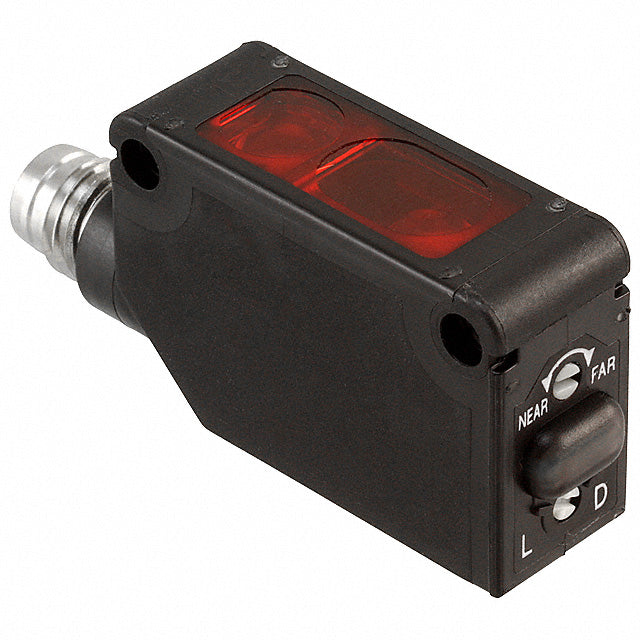

Panasonic Diffuse Photoelectric Sensor, Block Sensor, 800 mm Detection Range - CX-442-P-Z
$149.00 $185.00
The CX-400 series of photoelectric sensors is a wide-ranging lineup of 116 different models. Whatever your application entails, Panasonic has covered it with this series. Built to IP-67 standards, the CX-400 series is designed for the most demanding environments. The Adjustable range reflective sensors are available in 50, 100, and 300m detecting distance models, with the addition of a 2mm diameter small beam spot type. These sensors also incorporate foreground suppression and background suppression functions to limit the effect of unwanted detection.
| Panasonic | |
| Sensor Style | Block |
| Detection Type | Diffuse |
| Detection Range | 800 mm |
| Output Type | PNP |
| Electrical Connection | M8 4 Pin Connector |
| Maximum DC Voltage | 24V |
| Light Source | LED |
| IP Rating | IP67 |
| Maximum Current | 20 mA |
| Response Time | 1 ms |
| Housing Material | PBT |
| Minimum Operating Temperature | -25°C |
| Series | CX-400 |
| Maximum Operating Temperature | +55°C |
