E2S SON4 Sounder/Beacon - XENON

E2S

Housing Colour
Red
White
Beacon Colour
Amber
Blue
Green
Red
Voltage

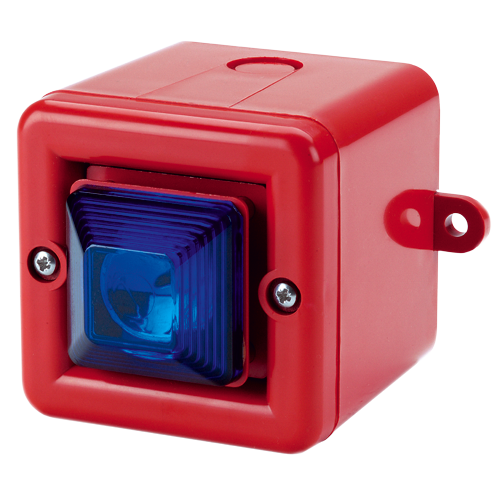

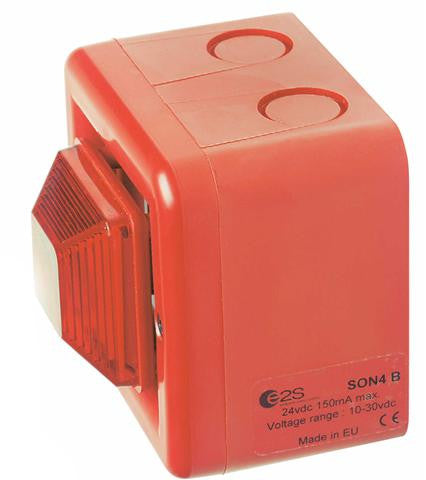

The SON4 is a compact, high output, 104dB(A) alarm sounder with integral Xenon strobe beacon.

The robust fire retardant housing ensures the SON4 is suitable for all general signalling applications including fire, security and process control.

  • Electronic sounder with xenon or LED beacon
  • 32 tones (xenon), includes ISO tones to Australian Standards
  • Automatic synchronization on multi-sounder systems**
  • Volume control (3 volume levels on xenon version)
  • Three stage alarm (reverse polarity stage switching on DC units)
  • Available in red or white housing
  • IP66
  • Dimensions 100mm x 86mm x 102mm

Specifications

Sound output: SON4 104dB @ 1m

Sound frequency: Xenon 32 tones

Light output: Xenon 11cd(e)

Flash rate: Xenon 60fpm

Protection: IP66

Temp rating (°C): -25 to +55

Cable entry: 4 x M20 knockouts

Rating: Continuous

Construction: Flame Retardant ABS

Weight: 0.30kg (DC), 0.40kg (AC)
