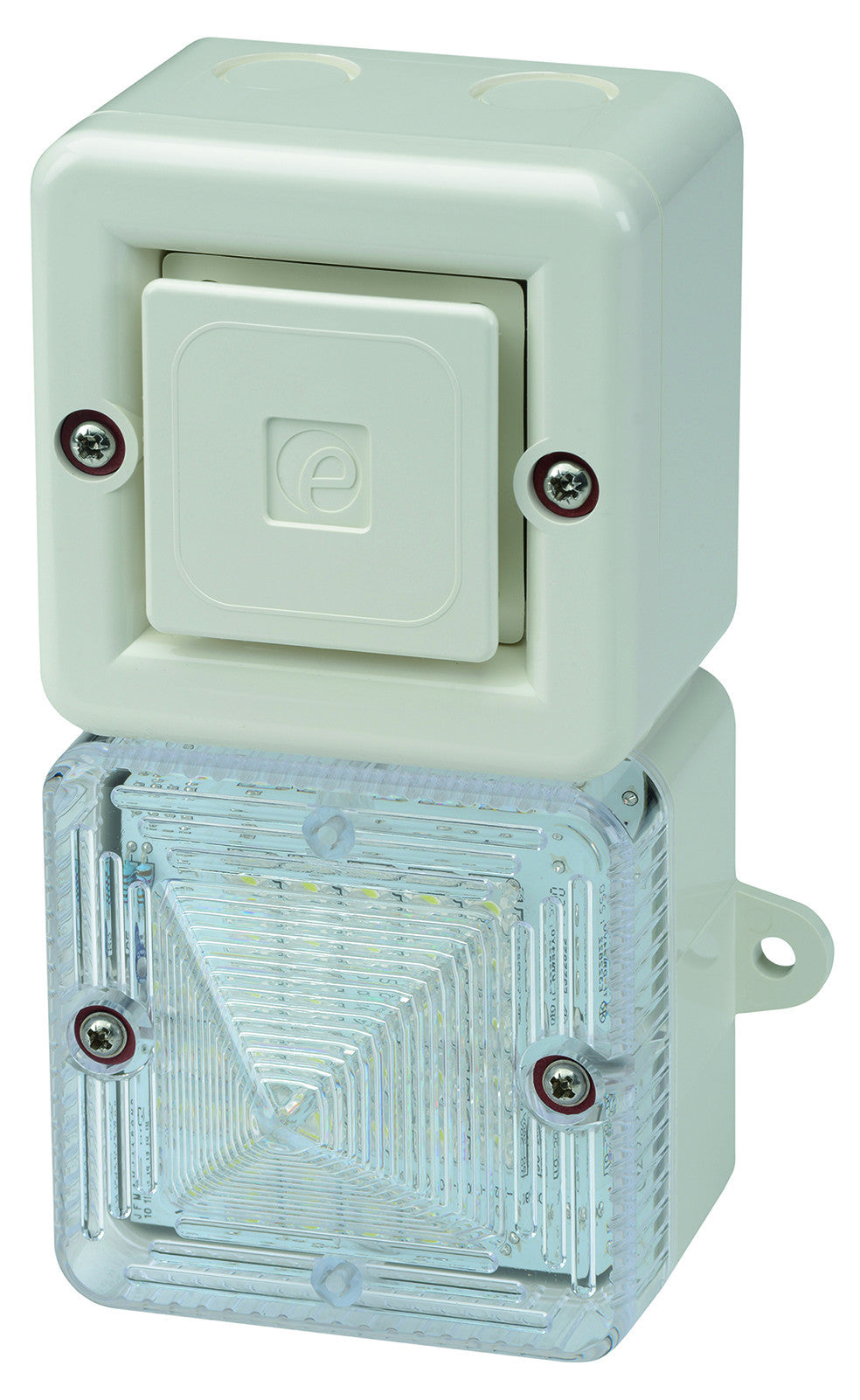

SONFL1H Alarm Sounder & LED Beacon
The SONFL1H features the 100dB(A) SONF1 alarm sounder combined with the L101H high output L.E.D. beacon. The compact, robust housing is ideal for all general signalling applications including fire, security and process control.
The array of 24 Superflux type high output L.E.D's generates over 120 candela of light output and can be user set to either steady of flashing mode. Sounder & beacon may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.
- 10 tones (includes ISO tones to Australian Standards)
- Automatic synchronization on multi-sounder systems**
- Sounder and beacon controlled independently
- Volume control
- Two stage alarm (DC voltage only) by reversing polarity
- Available in red or white housing
- Sound Output: 100dB @ 1m
- Sound frequency: 10 Tones
Temp rating (°C): -25 to +55
Cable entry: 4 x M20 knockouts
Construction: Flame Retardant ABS
