Qlight SSL100M 1 Aspect 92mm Surface Mount IP68 Metal Body LED Traffic Light

Qlight

Voltage


Surface mount traffic light for easy installation. IP68 rating, great for wash down and loading bays. Provides excellent durability to extreme vibration and shock

Note: Special order in product, 5-6 week lead time

  • M type has excellent visibility from a distance with clear and distinctive layer colors
  • Suitable for container spreader, harbor loading equipment, and outdoor conveyor applications
  • Superior durability in extreme vibration and shock thanks to a molded assembly process instead of conventional bolt fastened assembly method
  • Customized color arrangement available(Lens color configuration is initiated from the side of cable entry)
  • Materials : Housing-Al, Lens-PC
  • Protection rating : IP68 (IEC60529)

Click Here for PDF Data Sheet

Click Here for Operating Manual

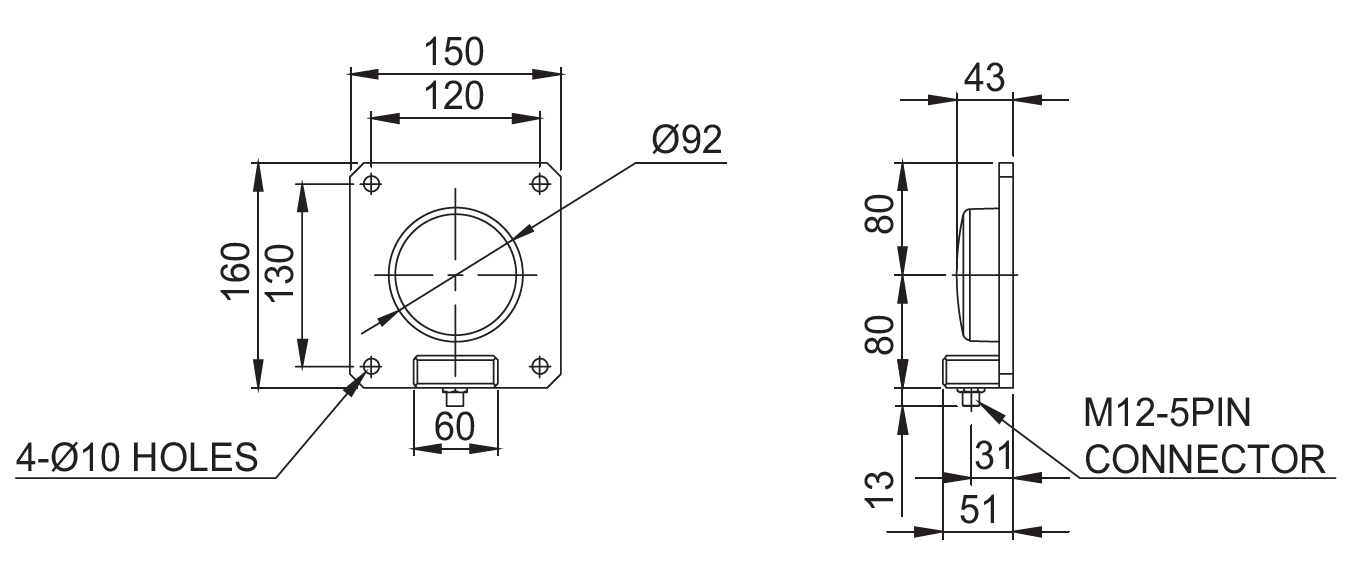

Click Here for Dimensional Drawings

Click Here for CAD Drawings

Specifications

Model number Voltage Current Weight Cable Entry Color
SSL200M DC12V 0.280A 1.80kg M12-5PIN

(Standard)

 R-Red

DC24V 0.151A 1.80kg
AC220V 0.040A 1.85kg


SSL series Vibration and Shock Test Conditions

Axial direction Direction X Direction Y Direction Z
Vibration test conditions 10-38 Hz, 3.5mm
38-500 Hz, 20g
1 oct/min, 2 hours
10-38 Hz, 3.5mm
38-500 Hz, 20g
1 oct/min, 2 hours
10-38 Hz, 3.5mm
38-500 Hz, 20g
1 oct/min, 2 hours
Shock test conditions 50g
6 ms
±1000 shocks
50g
6 ms
±1000 shocks
50g
6 ms
±1000 shocks
