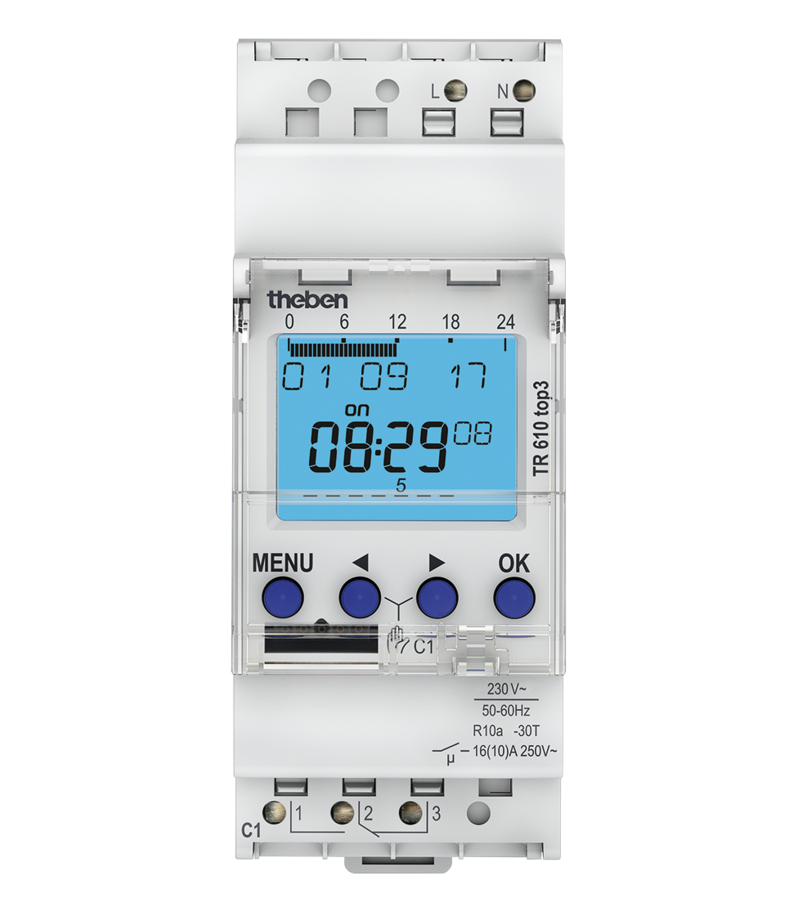

theben TR610 top3 Digital time switch with weekly program - 6100130

theben

Made in Germany

Function Description

  • Digital time switch with weekly program
  • DuoFix spring terminals
  • For 2 conductors each
  • Wire or strand (with or without wire end sleeve)
  • Wire diameter: 0.5 - 2.5 mm²
  • Button for releasing plug-in connection
  • Text-oriented user guidance in display
  • Preset date and time
  • fully operable without mains connection
  • 56 memory locations
  • Interface for OBELISK top2 memory card (PC programming)
  • 2. insertable switching program
  • Copying programs
  • Storing programs
  • 10 year power reserve (lithium battery)
  • Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
  • ON-OFF switching times
  • Switching pre selection
  • Permanent switching ON/OFF
  • Integrated operating hour counter
  • Reset option
  • Service function for monitoring maintenance intervals
  • Holiday program
  • Display back light (can be turned off)
  • Permanent switching ON/OFF
  • PIN coding
  • Automatic summer/winter time changeover
  • can be deactivated
  • Date rule options are already stored for Europe, the USA and other countries
  • own date rule options or changeover around set dates are available

    Click Here for PDF Data Sheet

    Accessories

    Bluetooth OBELISK top3 - 9070130

    • Bluetooth low-energy dongle for the transfer of switching programs and direct commands from the app to the time switch
