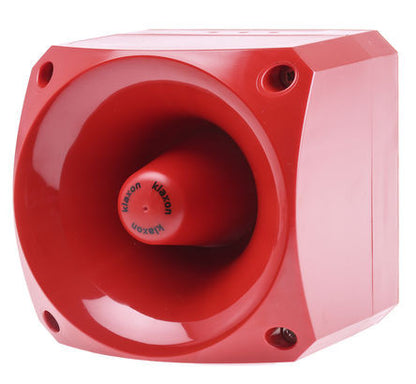

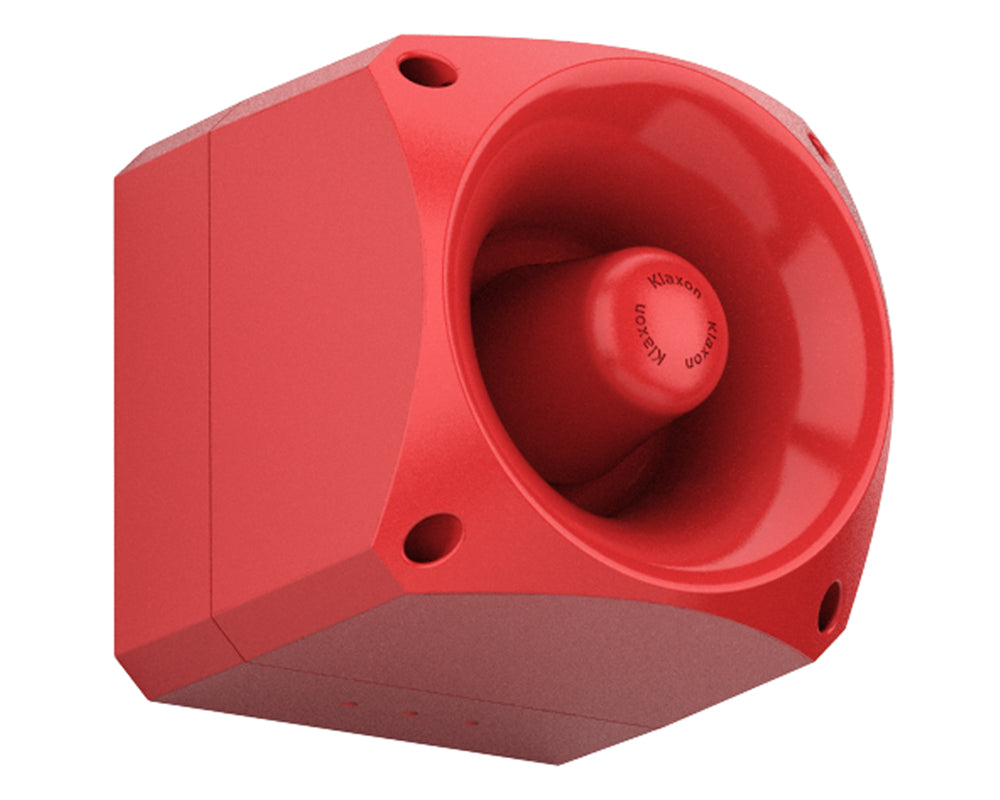

Klaxon Nexus 105, 110 and 120 Industrial Sounders
Klaxon Nexus 105, 110 and 120 Industrial Sounders
Regular price
$286.00
Sale price
$286.00
Regular price
Unit price
per
Tax included.
PNS-0001
The Klaxon Nexus high output sounders are designed for industrial applications.
Connections are made to the base during the initial wiring phase which results in faster and more reliable installation. In addition, the head is fixed by quarter turn fasteners enabling faster installation and accurate seal compression for weatherproofing. IP66 as standard means that Nexus can be installed in almost any location.
Applications - Fire alarm; conveyors; process control alarm; cranes; moving machinery; general signalling
- Three alarm stages
- First-fix, wire to base technology
- IP66 rated
- Volume control for greater flexibility - 20dB
- 64 tones
- Operating Temp: -25ºC to +70ºC
Audio Tone Sample Chart - Click Here
Specifications
10-60VDC
| Model | Colour | Audibility at 1m | Tones | Current |
| Nexus 105 | Red | Up to 113dB | 64 | 8-40mA |
| Nexus 110 | Red | Up to 116dB | 64 | 10-50mA |
| Nexus 120 | Red | Up to 120dB | 64 | 120-550mA |
110/240VAC
| Model | Colour | Audibility at 1m | Tones | Current |
| Nexus 105 | Red | Up to 113dB | 64 | 40mA |
| Nexus 110 | Red | Up to 116dB | 64 | 40mA |
| Nexus 120 | Red | Up to 120dB | 64 | 200mA |
24-48VAC
| Model | Colour | Audibility at 1m | Tones | Current |
| Nexus 110 | Red | Up to 116dB | 64 | 10-50mA |
Instruction Manuals
Klaxon Nexus 105 DC - Klaxon Nexus 105 AC
Dimensions
Dimensions
