MOFLASH LED80 LED Beacons

MOFLASH

Colour
Red
Amber
Green
Blue
Voltage

BEACON LED 10-100VDC and 115-230VAC STATIC OR FLASHING 12 LEDS

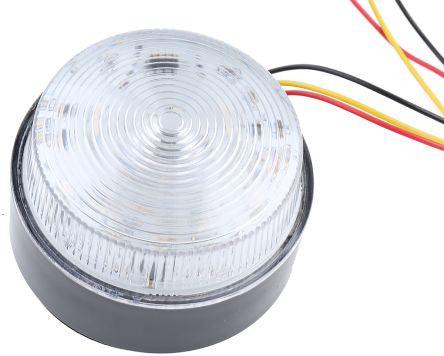

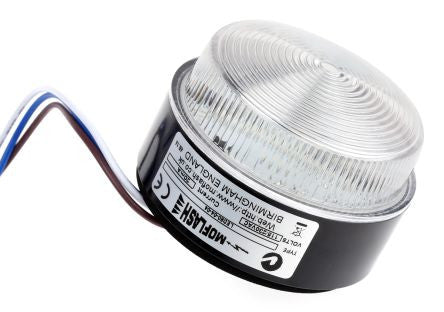

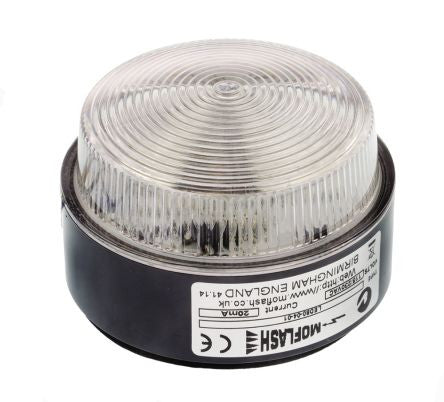

The LED80 dual function beacon incorporates 12 ultra bright Surface Mount LEDs offering an economic solution for a wide range of general signalling solutions.

Ideally suited for local indication the beacon is controlled by either two wires (flashing mode or three (static mode). The beacons are supplied fully assembled and ready for immediate installation.

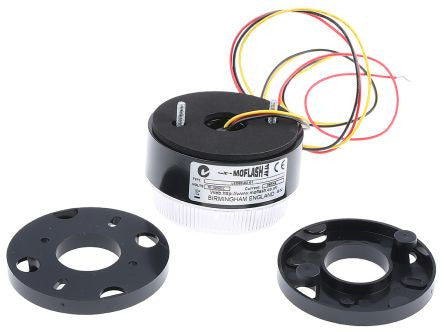

The unit offers two mounting options, either Stud Mount or Surface Mounting using the two piece fixing plate supplied. One plate is fixed to the appropriate surface the other to the beacon, the two plates then ‘Snap Fit’ together.

  • Multiple colour varieties available including Red, Green, Amber and Blue to convey whichever message is required.

Specifications

  • Number of LEDs: 12
  • Colours: Red, Amber, Green or Blue
  • Voltage: 10-100VDC or 85-265VAC
  • IP67 rated
  • Steady or Flashing Mode
  • PC - UV Stabilised
  • 0.15kg
  • -20 °C min to 55 °C max
