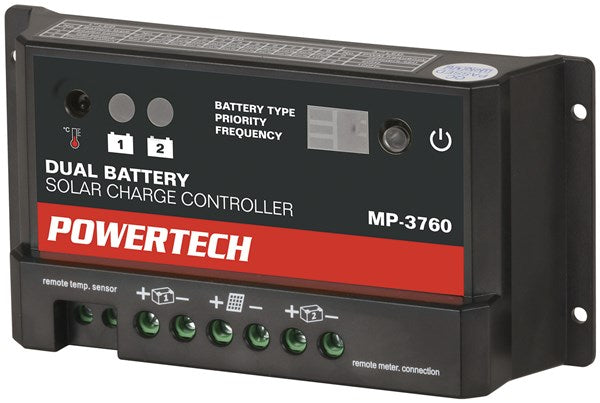

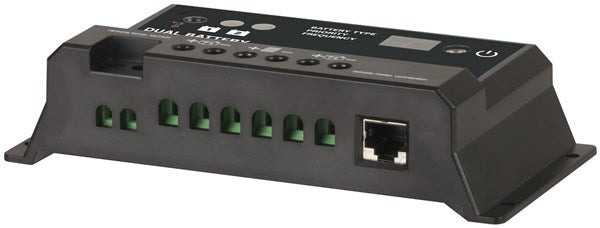

12/24V 10A Dual Battery PWM Solar Charge Controller with LED Indicator


Powertech 10A Solar Regulator ensures that the power supplied by 12 volt or 24 volt solar panels is regulated to the right voltage to charge auxiliary batteries.


  • Will charge 2 completely separate battery banks at the same time
  • Works with 12V or 24V systems
  • Highly efficient PWM (Pulse-width modulation) charging system
  • Provides up to 10A charging current (Limited by size of your solar panels)
  • Electronic protection from over charging short circuit or accidental reverse battery connection


  • Max solar input voltage: 30V (12V system), 55V (24V system)
  • Battery input voltage range: 8-15V (12V system), 8-30V (24V system)
  • Max output current (both channels): 10A
  • Overnight self-consumption: 4mA
  • Dimensions: 153 (W) x 76 (H) x 37 (D) mm,
  • Weight: 240g

Click Here for Installation Manuel
