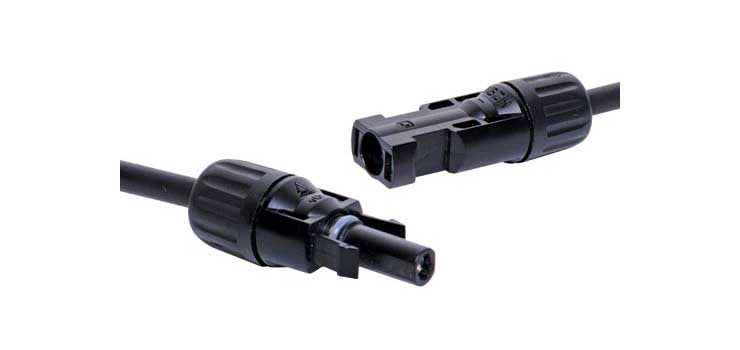

2m Solar MC4 Style Male to Female Lead

2m Solar MC4 Style Male to Female Lead

BNR

$26.50
$26.50
Tax included.

P8615B

Genuine Staubli® MC-4 connectors. Water & dust proof - IP68 rated.

This lead can be used for connections in photovoltaic solar panel arrays. The fully sealed design is suitable for use in exposed installations. EN50521:2008 approval suitable for AS/NZS 5033:2012 standard.

Specifications

  • Rated Current： 30A
  • Rated Voltage： 1000V DC (TUV) / 600V DC（UL）
  • Test Voltage: 6KV(50Hz,1min)
  • Contact resistance of blug connectors: ≤0.5mΩ
  • Safety Class： Class Ⅱ
  • Protection Degree,mated： IP68
  • Protection Dearee,Unmated IP2X
  • Wire Size Range： 4-6mm2 (TUV) / 12AWG（UL）
  • Flame Class： UL94-V0(TUV) /5VA（UL）
  • Insulation Material： PC&PPO
  • Temperature Range： -40°C...+85°C (TUV)/ -40°C...+90°C (UL)
  • Certification： TUV & UL
