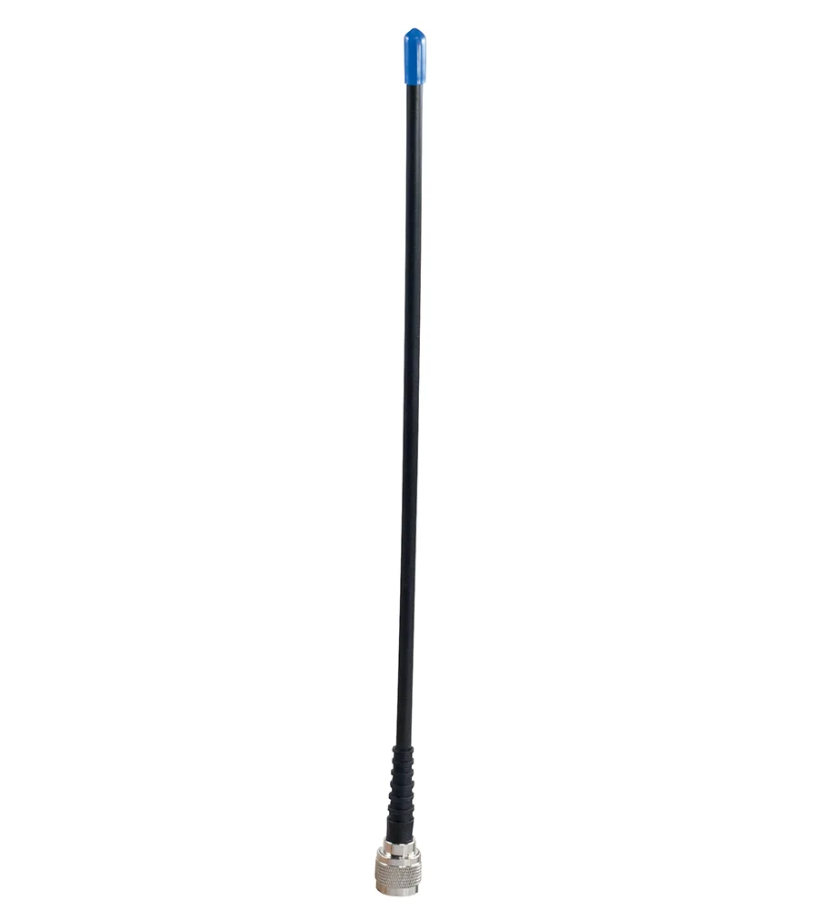

433MHz 38cm Antenna with N-Connector - 433S-N

433MHz 38cm Antenna with N-Connector - 433S-N

Regular price $57.00
Sale price $57.00 Regular price
Tax included.

433S-N

To be used with 433MHz Gigalink Receivers

The 433S-N is a Ground Independent Helical Whip antenna with a length of 38cm. The base is made from a high grade N-connector to allow the whip antenna to be disconnected from the base. The gain is better than the standard ANT433S to give an even better transmission range.

Features

  • Easy to remove whip from the mounting base with an N-connector.
  • High gain at 4.5dBi
  • Tuned to the 433MHz band
  • Includes low loss cellfoil coaxial cable and mounting bracket

Specifications

  • Frequency - 425.00 to 442.50Mhz
  • Turned Bandwidth - 17.50Mhz
  • Gain - 4.5 dBi
  • Impedance - 50 Ohms
  • Maximum Power - 25 Watt
  • Radiated Pattern - Omni Directional
  • Length - 38 cm
