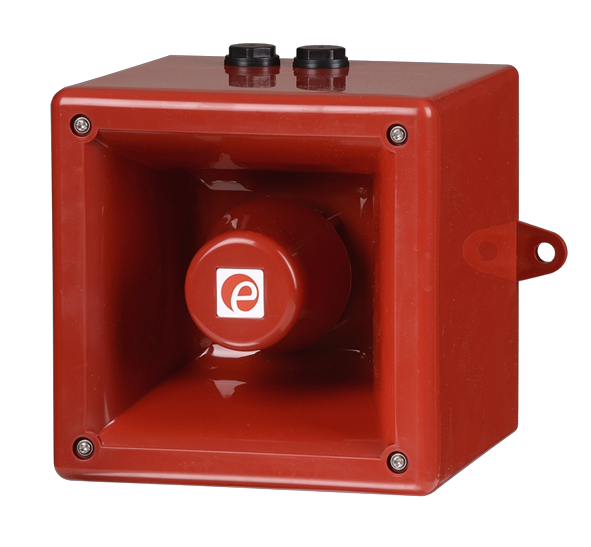

E2S A112N Electronic Sounder - High Output 120dB



The A112N is a high output, 119dB(A) alarm sounder.

Low current consumption and high SPL in a outdoor rated enclosure ensure the A112N is suitable for all applications including fire, security and process control. Designed to withstand the harshest of environments. Constructed from lightweight, impact and fire-resistant ABS, the A112N employs the latest in reliable D Class amplifier technology for superior sound output with low current consumption. The A112N is a member of the versatile AlertAlarm family of industrial alarm horn sounders – also available with Xenon, AL112NX or LED beacons, AL112NH. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010) as standard.

High SPL in a robust fire retardant IP66 housing ensure the A112N is suitable for all general signalling applications including fire, security and process control.


  • 45 tones, includes ISO tones to Australian Standards
  • Automatic synchronisation
  • Continuously rated
  • Dual M20 or 1/2"NPT clearance cable entries
  • Duplicate pluggable cable terminations – Class A
  • Ingress protection IP66 Type 4/4X/13/3R
  • Conformal coated (tropicalised) electronics
  • 64 alarm tone frequencies and 4 remotely activated alarm stages
  • Available with custom tone configurations and frequencies
  • Diode polarized for use in supervised circuits


Sound output: Max 120dB @ 1m

Sound frequency: 45 tones

Protection: IP66 (IP65 on AB112LDA)

Temp rating (°C): -25 to +55

Cable entry: 2 x M20 knockouts

Rating: Continuous

Construction: Flame Retardant ABS

Weight: DC: 1.80kg/3.96Ibs AC:2.10kg/4.62Ibs

Size: 168mm x 168mm x 154mm


For more information, please click here

E2S A112N Sounder Dimensions
