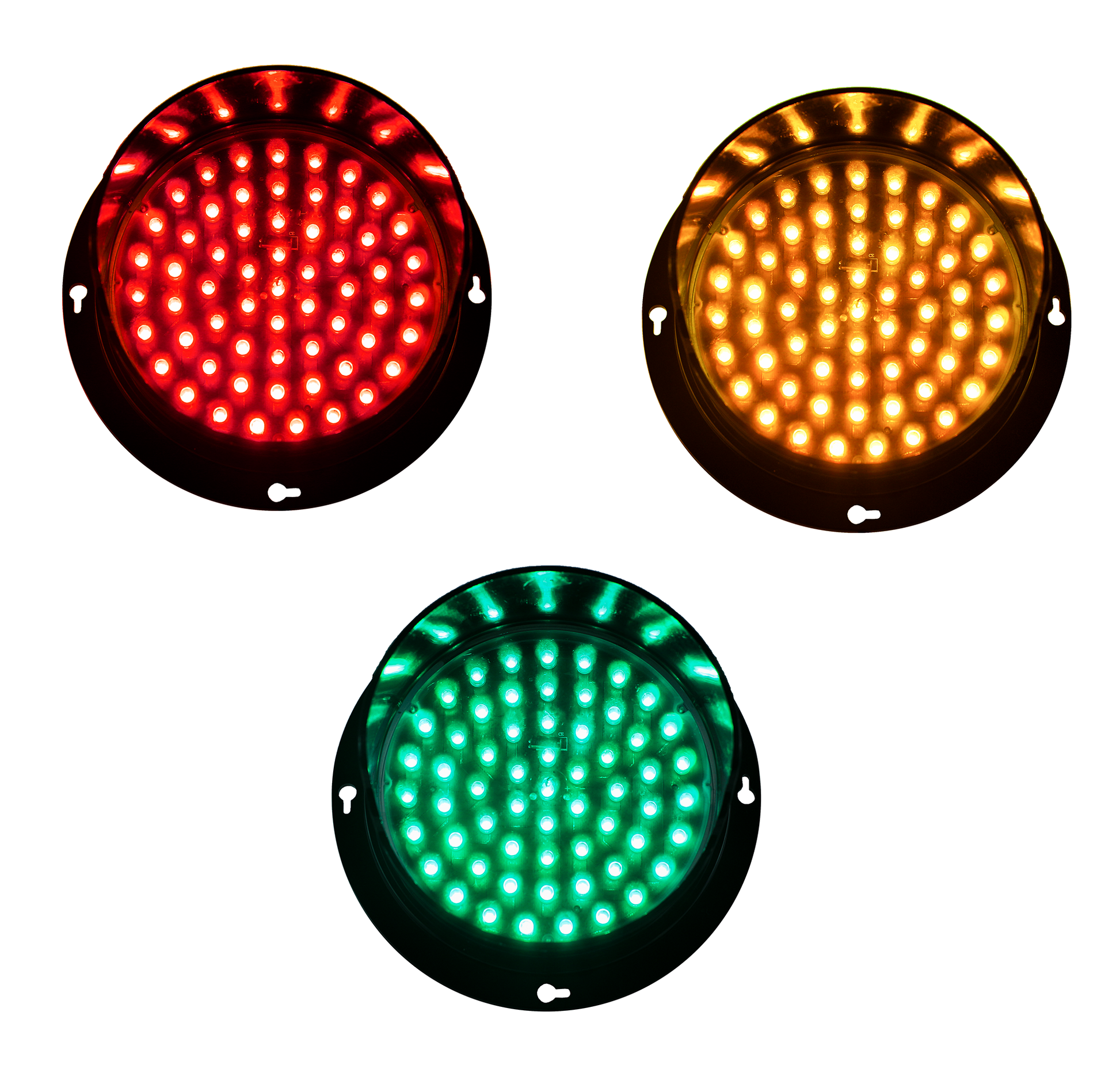

BNR 125mm Surface Mount IP65 LED Pixel Cluster Signal Lights



Surface mount LED pixel cluster signal lights ideal for mounting on traffic signs

Increase visual awareness of traffic signs by installing these LED cluster signal lights to the single. Comes with 80cm fly lead for easy installation.

Works with our solid state flasher relays for 60FPM flash rate operation, click here to view flasher.


 Voltage 12-24VDC
Power Consumption
12VDC: 0.18A 24VDC: 0.09A
IP Grade IP65
Working Temperature -40°C to +80°C
Housing Material UV resistant polycarbonate
View Angle L/R-30° U/D-30°
Vibration Resistance EN60068-2-64:2007
Impact Resistance IR 3 EN12368
Damp Heat Resistance EN60068-2-30
Warranty 3 year replacement

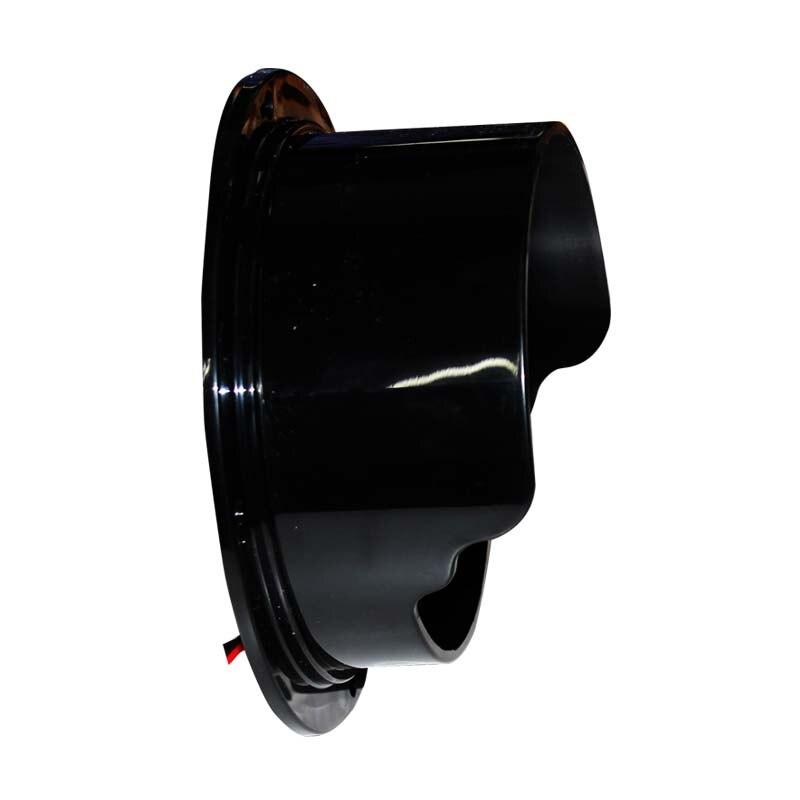

Size 163mm Dia, 150mm dia screw mounting holes, 125mm LED Dia, 70mm high sun visor.
