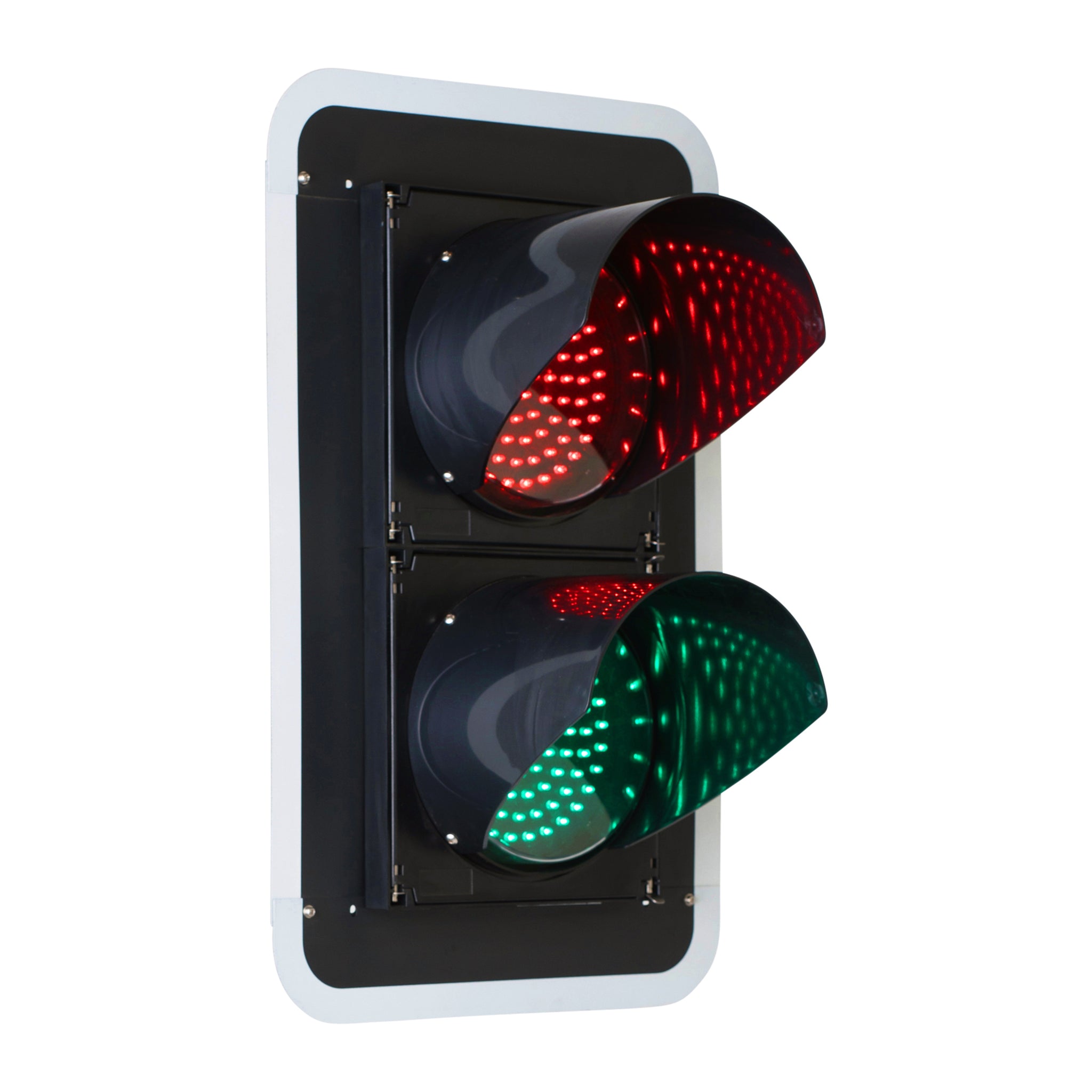

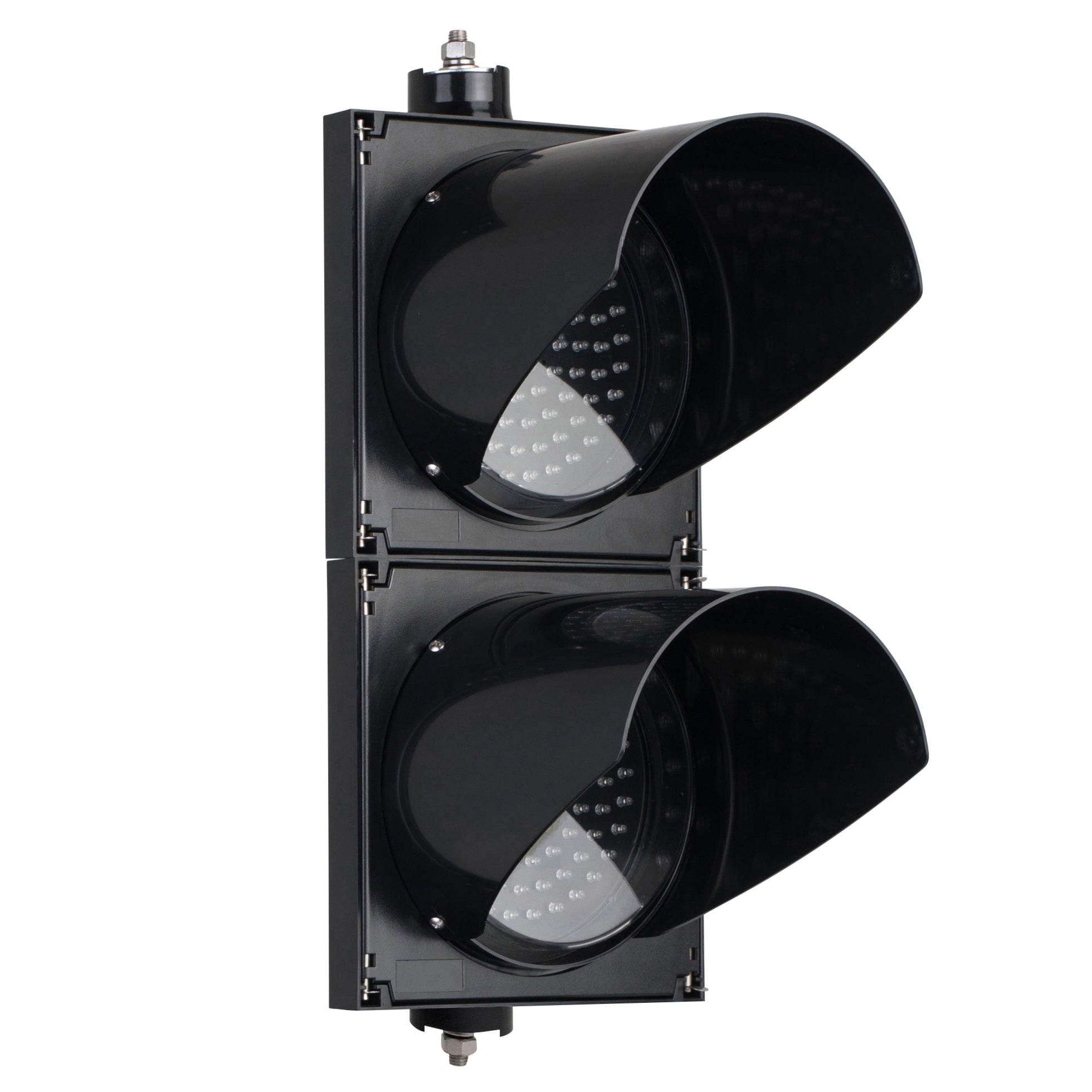

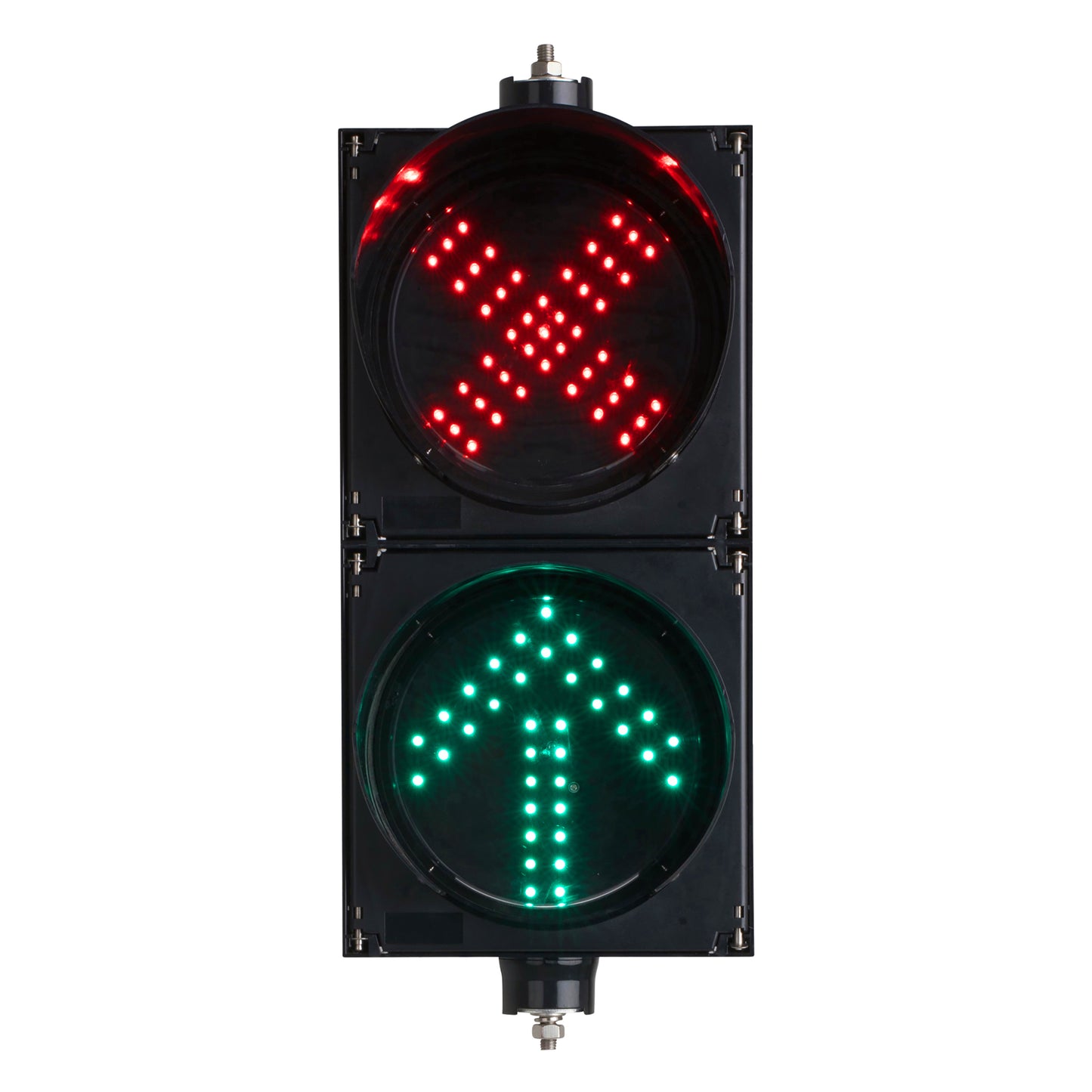

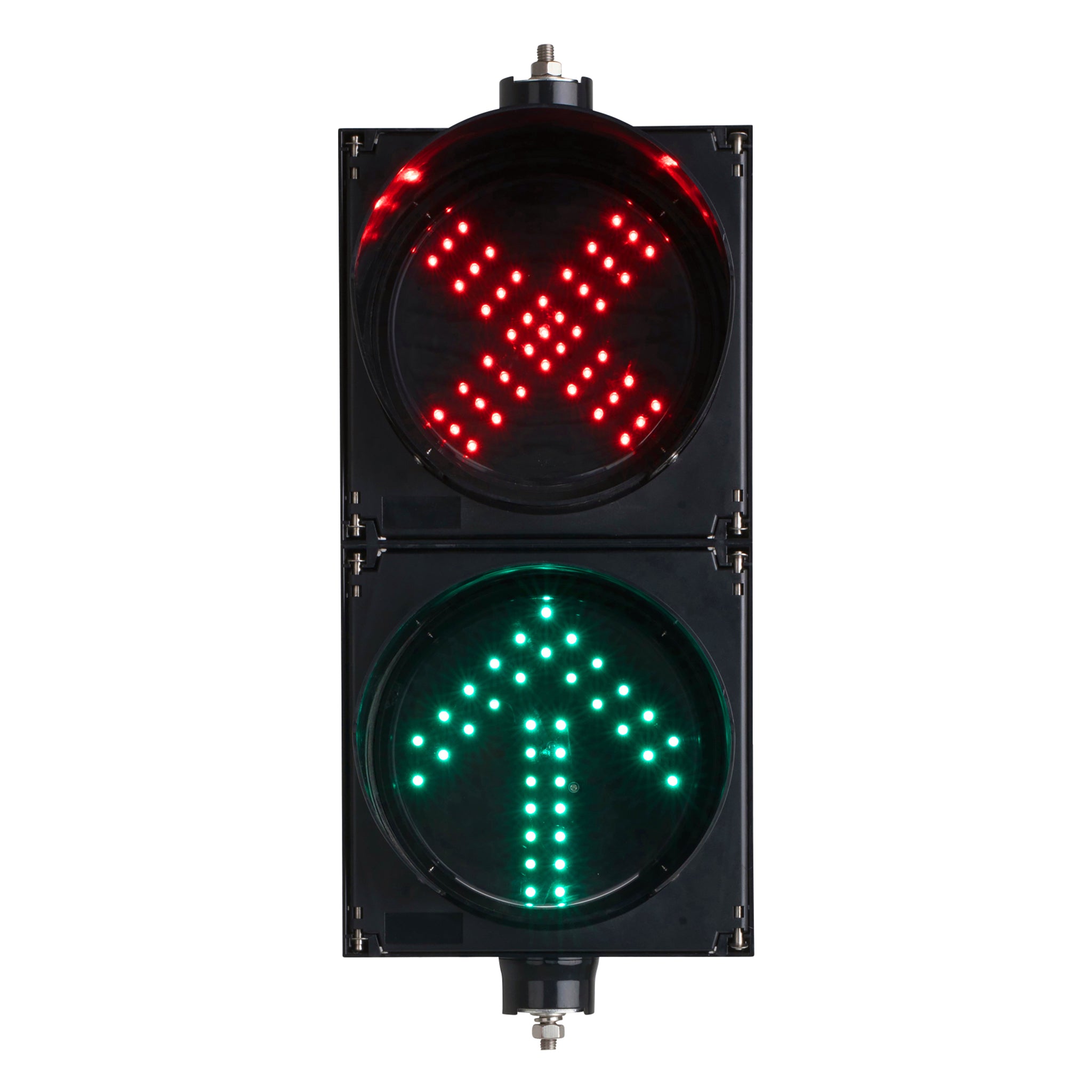

2 Aspect 200mm Lane Control LED Traffic Light 12-24VDC or 85-265VAC
Lane control traffic light, for toll stations, tunnels, access control points and multi lane control. 2 aspect 200mm LED Traffic light comes with sun visor and right angle metal mounting brackets which can be easily mounted to a pole or wall. M20 entry at the back for used with nylon gland or use the provided conduit hood for use with flexible conduit.
Target board options available to draw more attention to the traffic light.
Arrow modules can be easily rotated to point desired direction.
The manufacturers quality management system is in compliance with GB/T19001-2008 and ISO9001:2008 standard. Our products are CE, RoHs and IP65 certified, comply with EN12368:2006 traffic control equipment regulation and come with 3 years warranty.
Comply with: CE, GB14887,EN12368, RoHS and other related international standards.
Energy saving, power consumption 90% less than incandescent bulbs
High-intensity and efficient LED source, Life span more than 80,000 hrs.
Rational designed optical lens, anti-phantom effect, optimal viewing angle.
IP55 Dust-proof and weatherproof construction. Environmental friendly, RoHS compliant.
- Assembled in Melbourne, Australia
Input Voltage: 12-24VDC or 85-265VAC
Power Consumption 12-24VDC:
160mA @ 12VDC, 100mA @ 24VDC (Red X)
170mA @ 12VDC, 120mA @ 24VDC (Green Arrow)
Power Consumption 85-265VAC: 2 watts per module
Lens Diameter: 200mm
Light Intensity: ≥400 cd (Red) ≥600 cd (Green and Yellow)
Dominate Wavelength: Red 625nm +/- 5, Yellow 590nm +/- 5, Green 505nm +/- 2
Working Temperature: -40ºC ~ +80ºC
Rating: IP55 Weather Resistant
Housing: UV Resistant Poly-carbonate
Working Humidity: ≤0.97
Average Life of LEDs: 80,000 Hours
View Distance: ≤300m

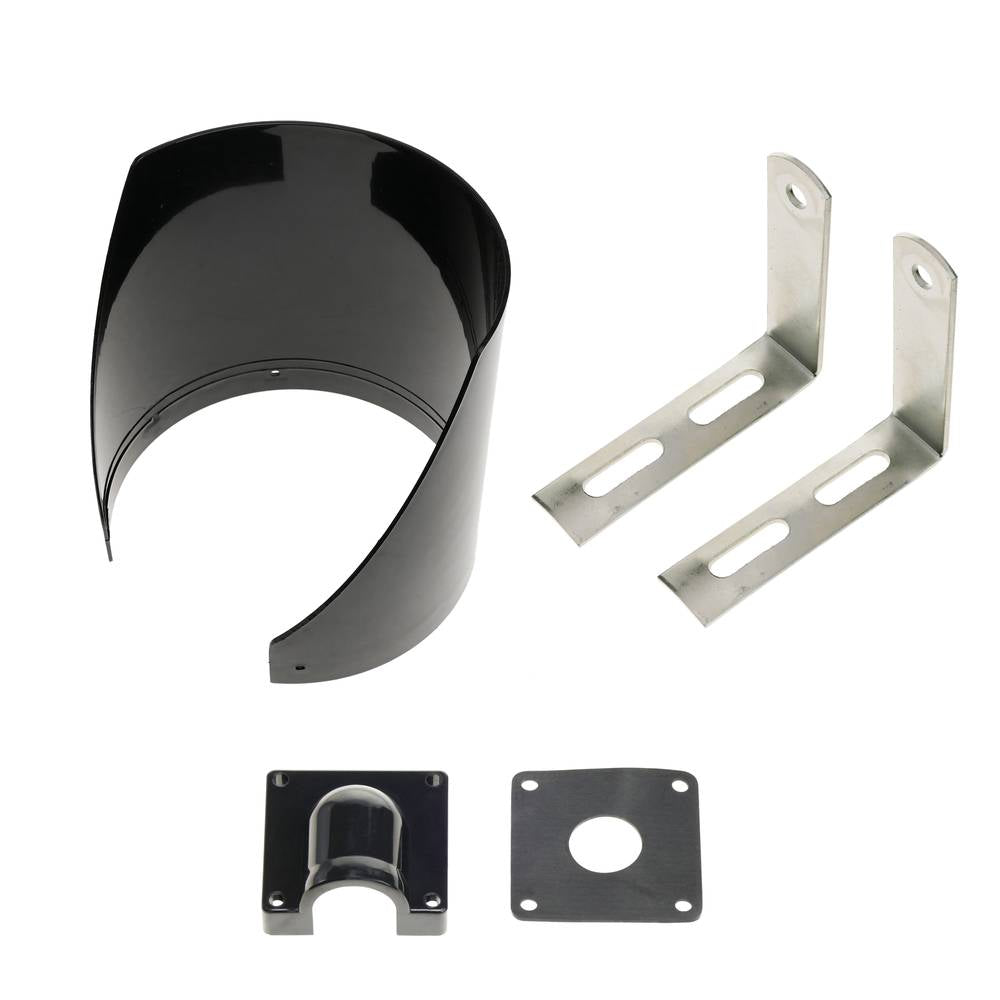

Sun Visors: Rotatable - can be mounting horizontal or vertical
Right angle metal mounting brackets included
12-24VDC - Terminal 1: (Neg -), Terminal 2: Red X (Pos +), Terminal 3: Green Arrow (Pos +)
85-265VAC - Terminal 1: Common (Neutral N), Terminal 2: Red X (Active L), Terminal 3: Green Arrow (Active L)
