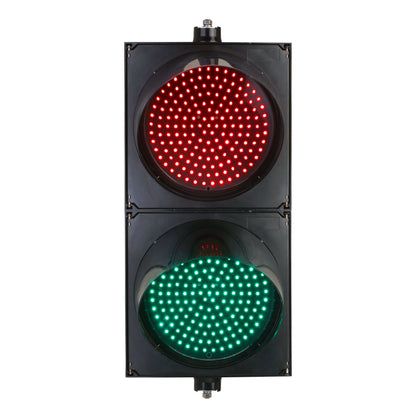

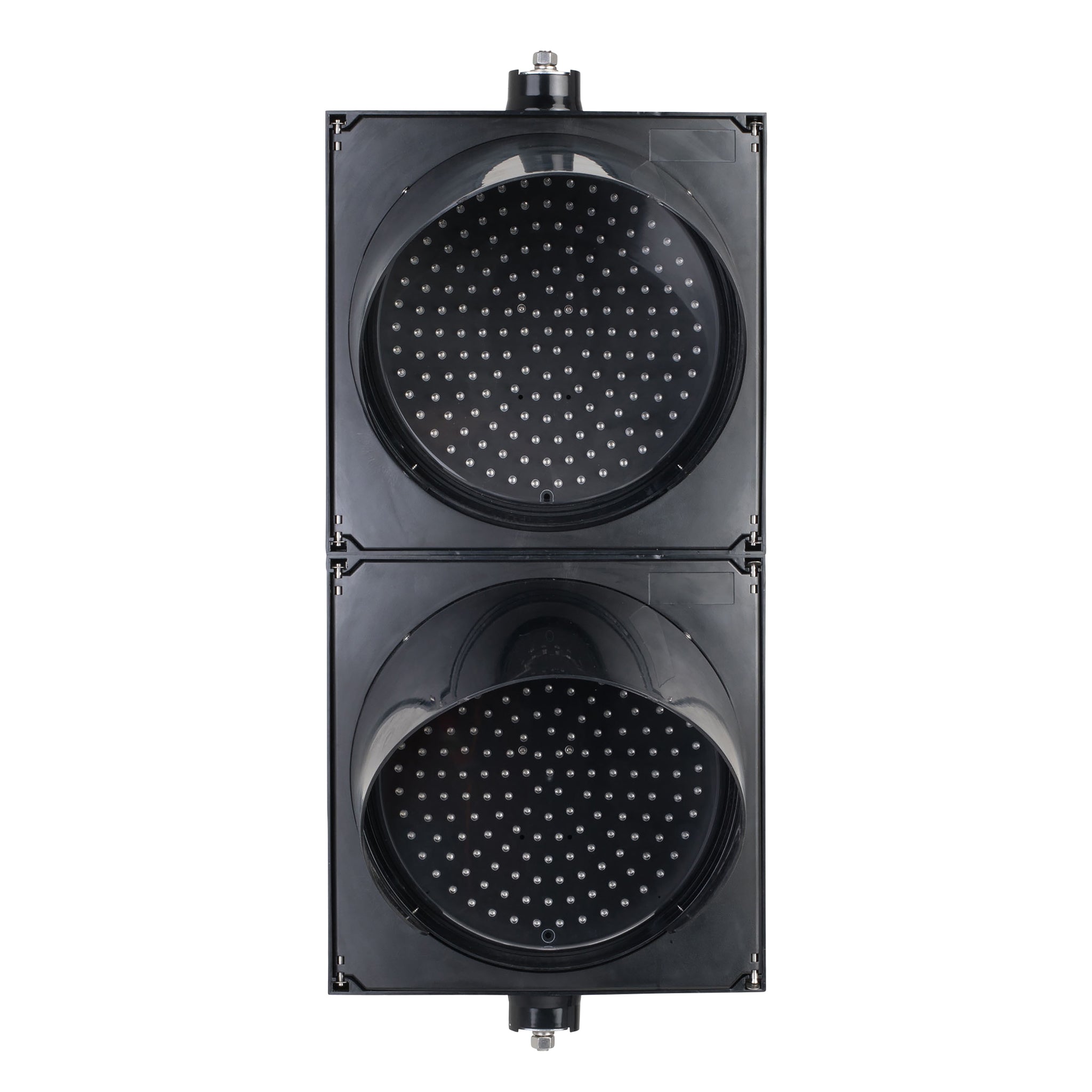

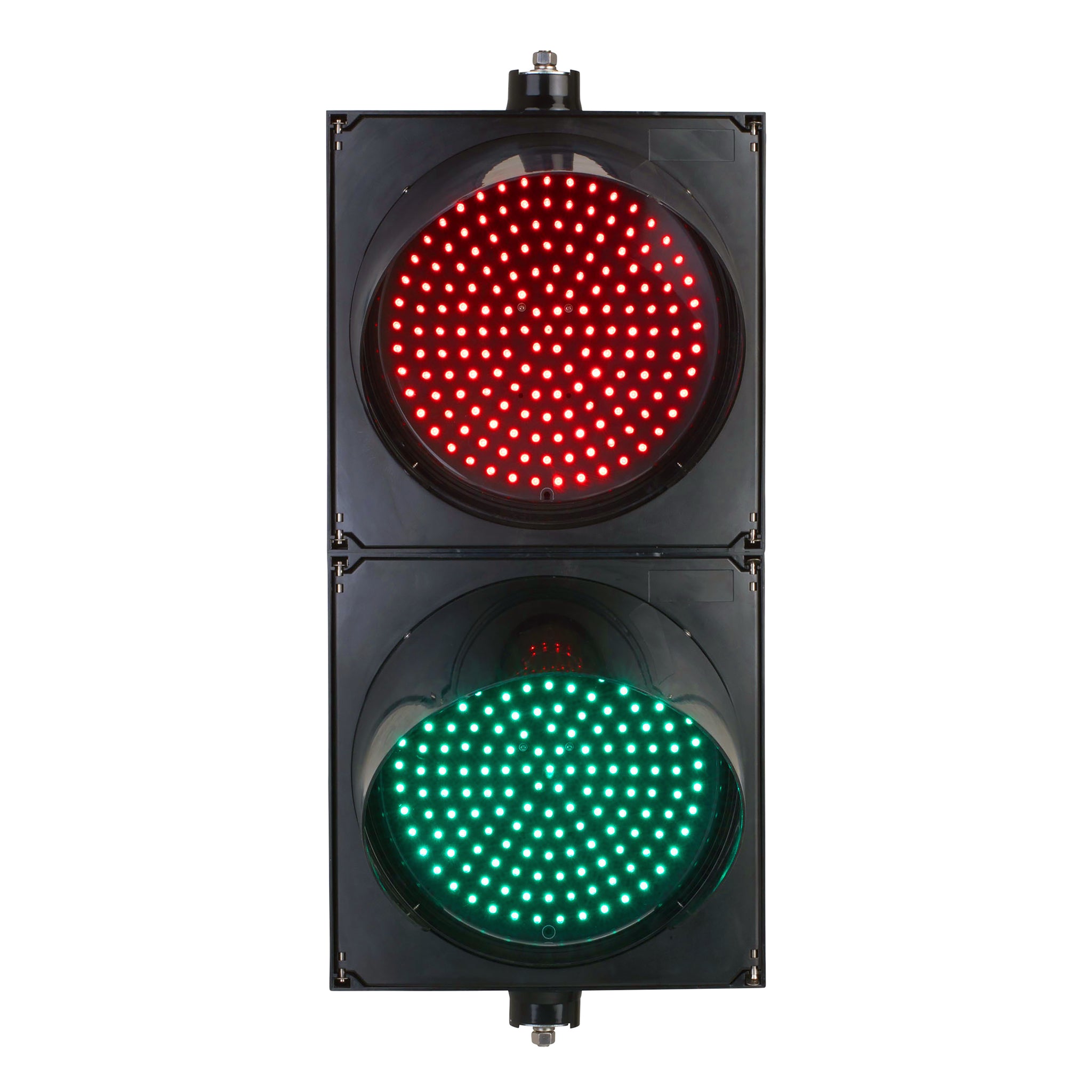

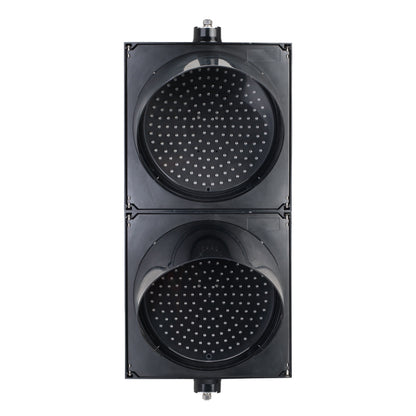

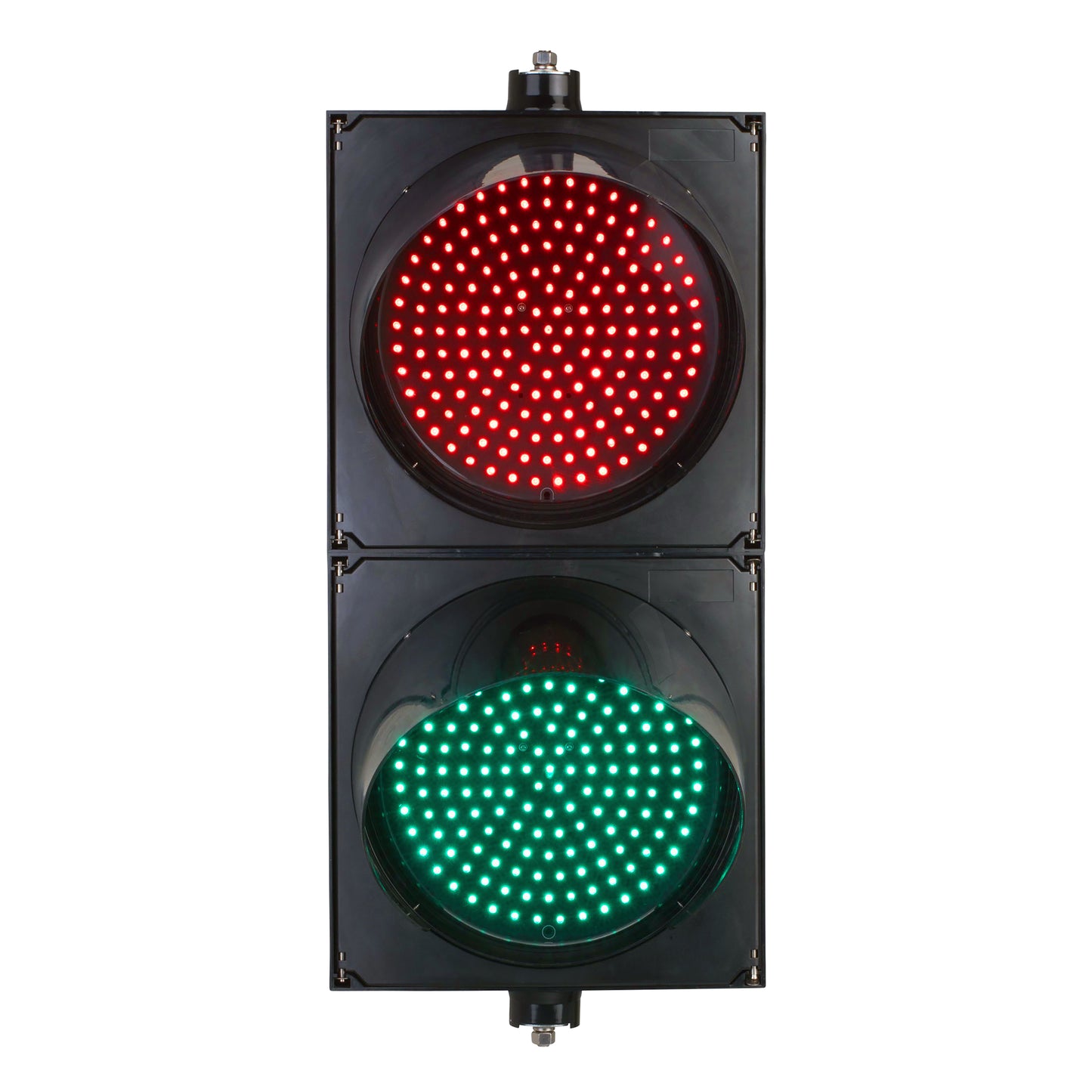

BNR 2 Aspect 300mm LED Traffic Lights 12-24VDC or 85-265VAC - Arrows and Colours

BNR

Voltage
Target Board

Custom order your Traffic light with the following modules to choose from

Directional Arrows (Can be installed in any direction):

Colour Modules:



Features

  • Comply with: CE, GB14887,EN12368, RoHS and other related international standards.
  • Energy saving, power consumption 90% less than incandescent bulbs
  • High-intensity and efficient LED source, Life span more than 80,000 hrs.
  • Rational designed optical lens, anti-phantom effect, optimal viewing angle.
  • IP65 Dust-proof and waterproof construction. Environmental friendly, RoHS compliant.
  • For view distance up to 500 Meters

Specifications

Power supply: 12-24VDC or 85-265VAC

Power Consumption:

400mA @ 12VDC, 310mA @ 24VDC (Red and Yellow Module)

570mA @ 12VDC, 380mA @ 24VDC (Green Module)

Average life of LEDS: 80,000 hours.

Lens diameter: 300mm.

Number of LEDs: 168 per aspect.

Light output: >4000mcd/m

Dominant wavelength: Red 625nm +/- 5, Yellow 590nm +/- 5, Green 505nm +/- 2

Housing: PMMA, UV stabilised.

Mass: 10.5kg (3 aspect)

IP rating: IP55

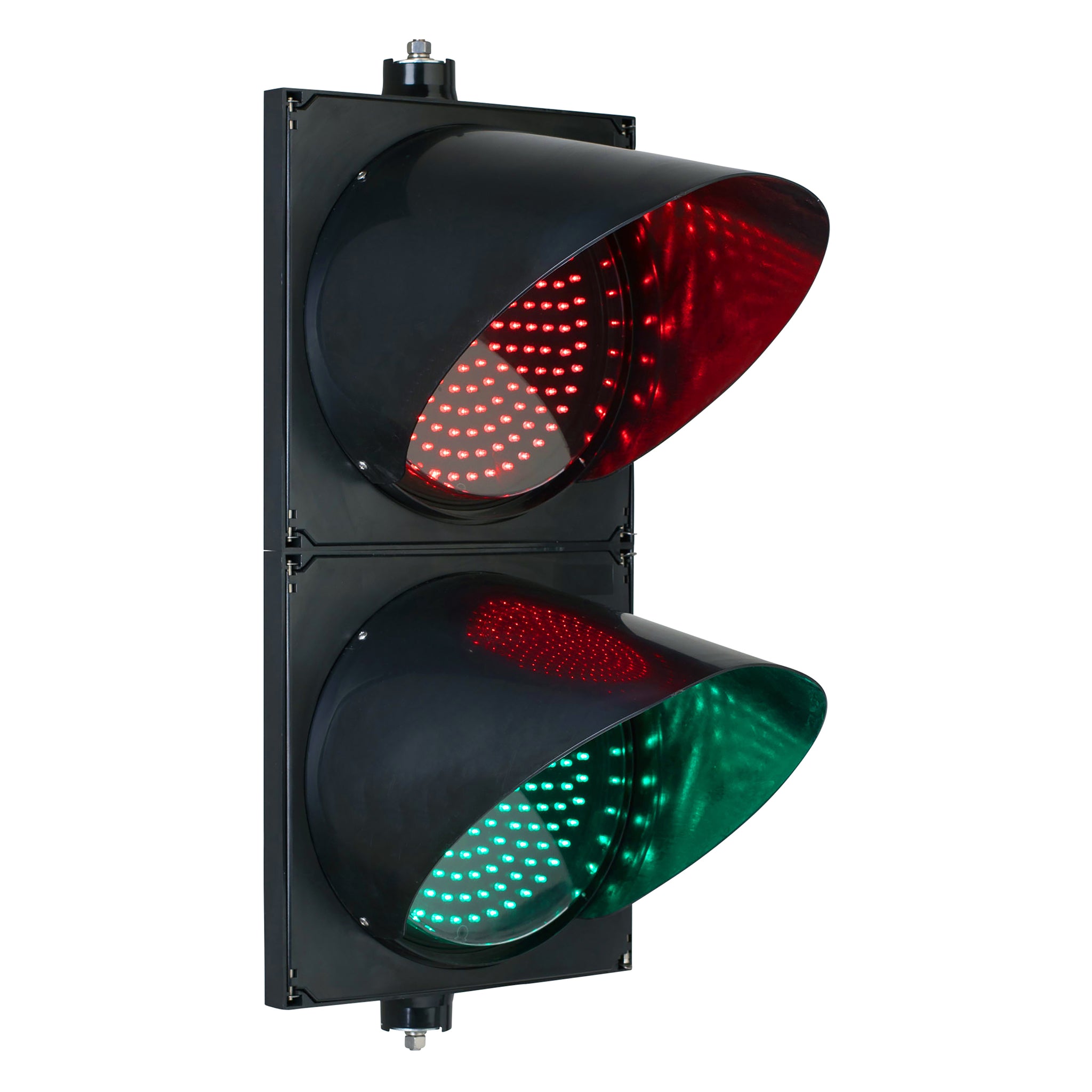

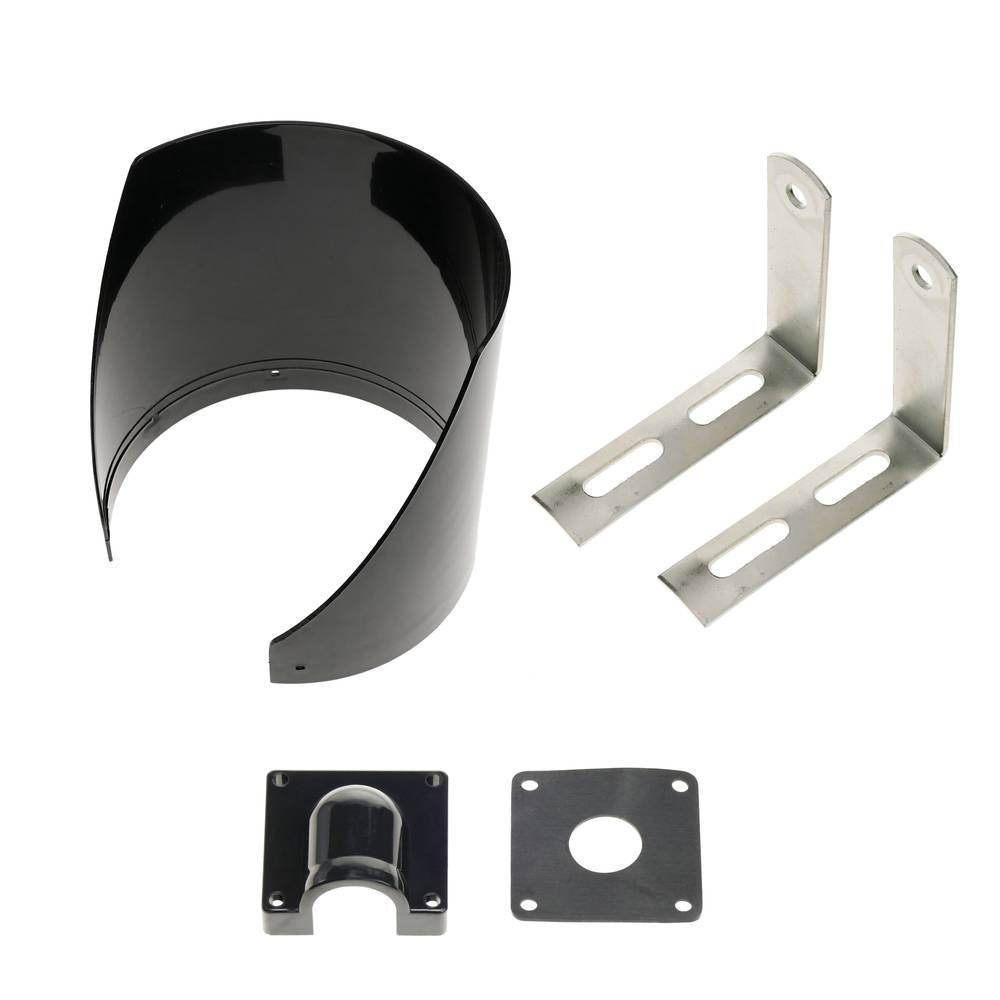

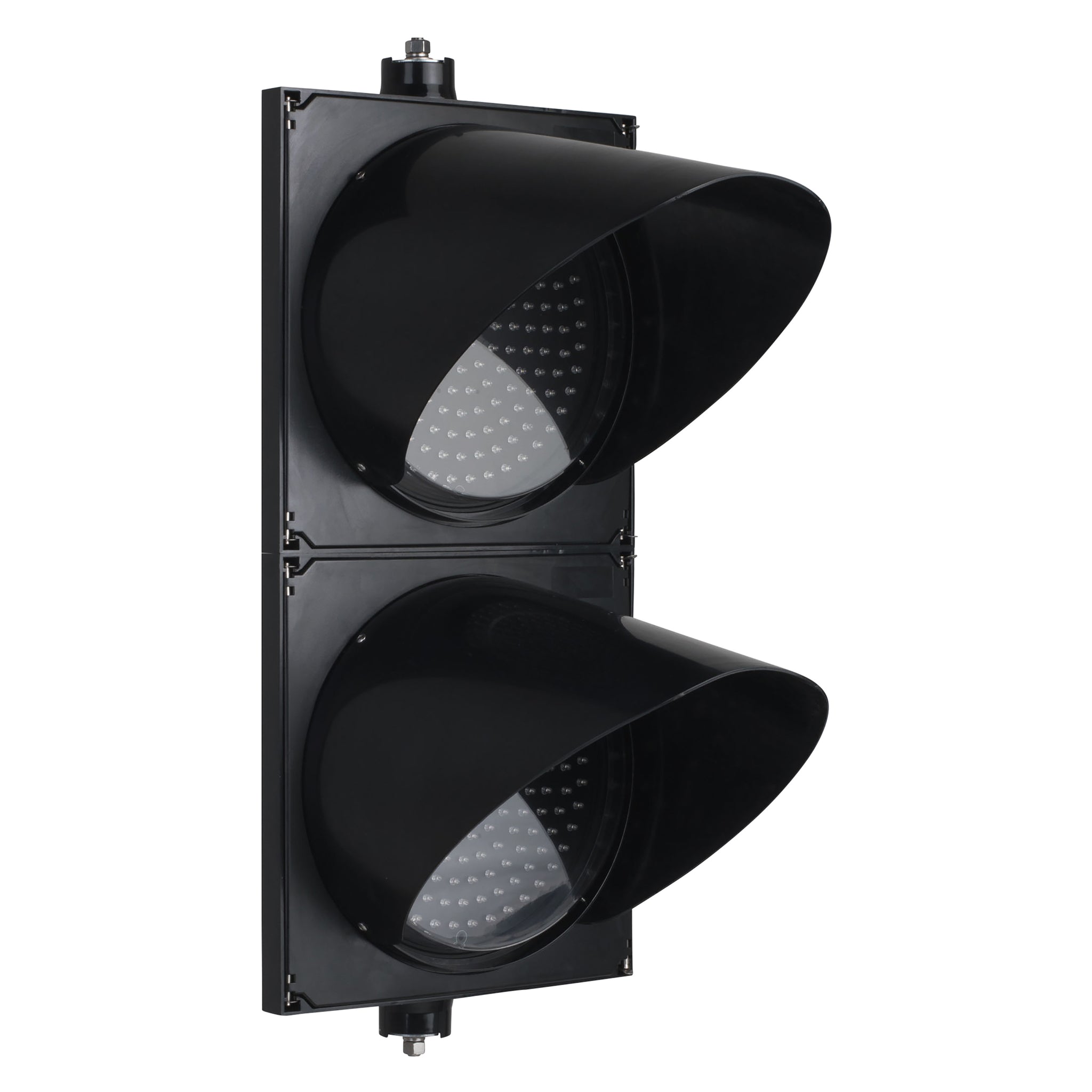

Sun visors: Separate, horizontal or vertical.

Operating Temp: -40ºC ~ +80ºC

Mounting: Adjustable wall brackets (incl)
