Single Aspect 200mm Traffic Lights 12-24VDC or 85-265VAC

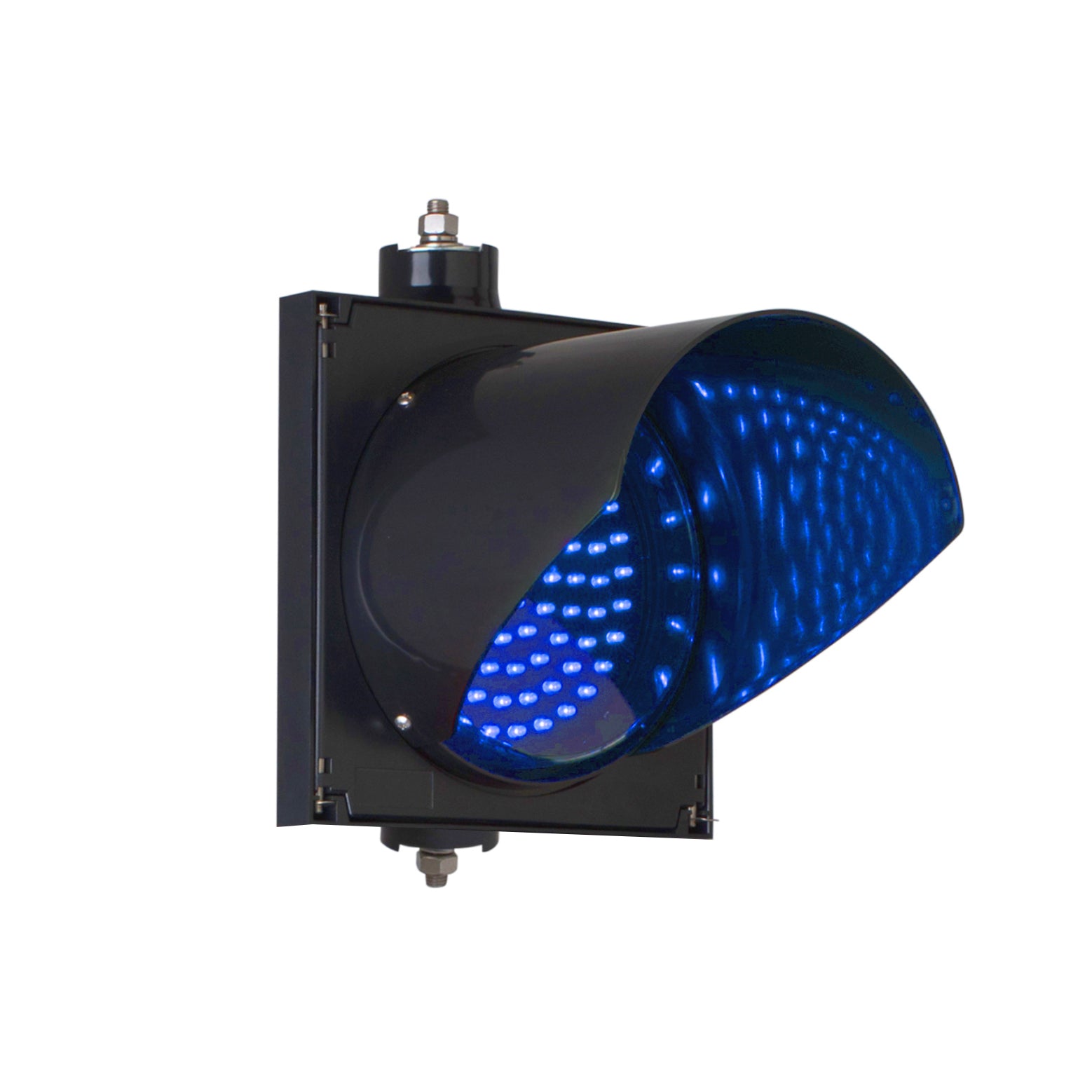

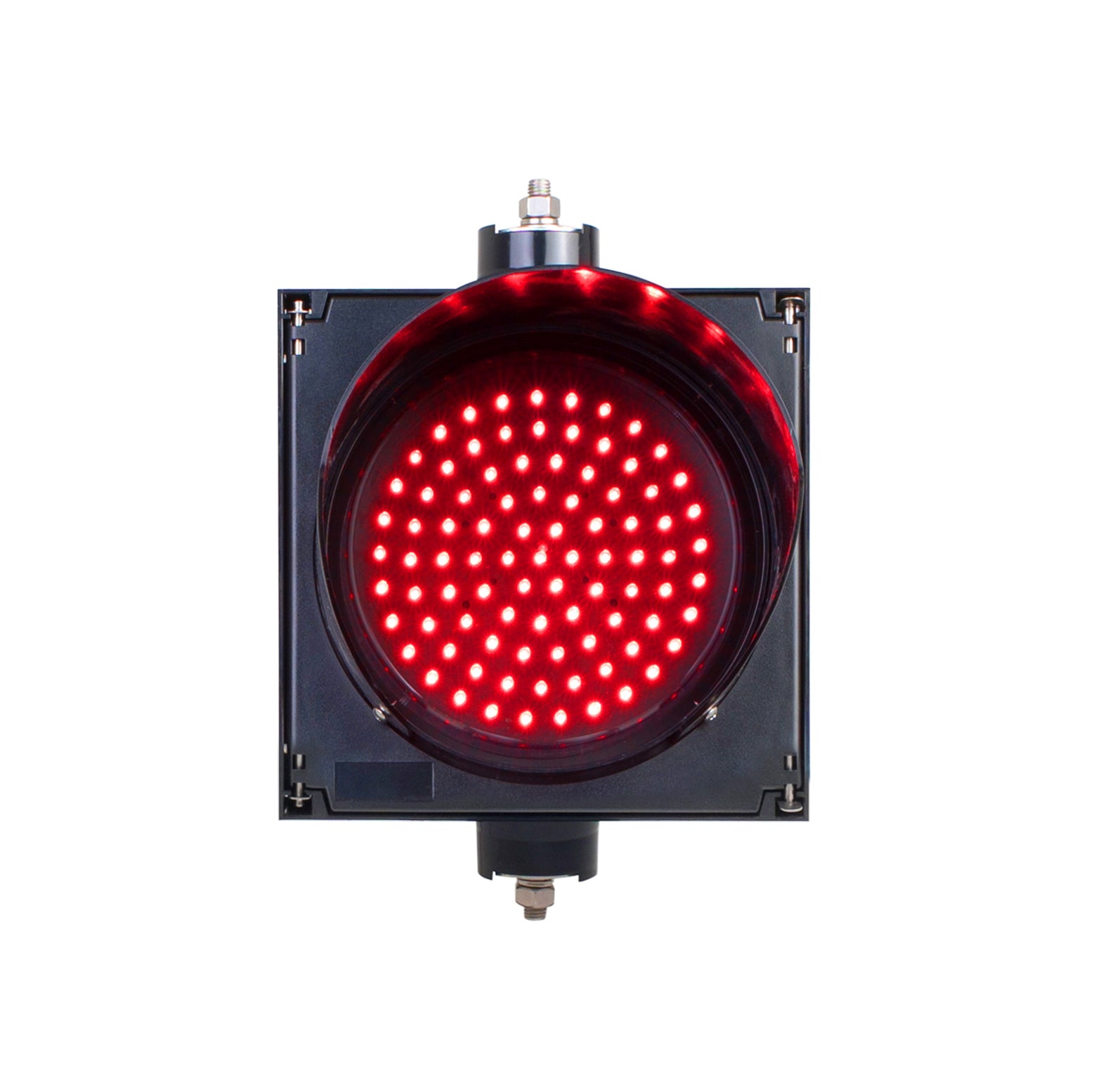

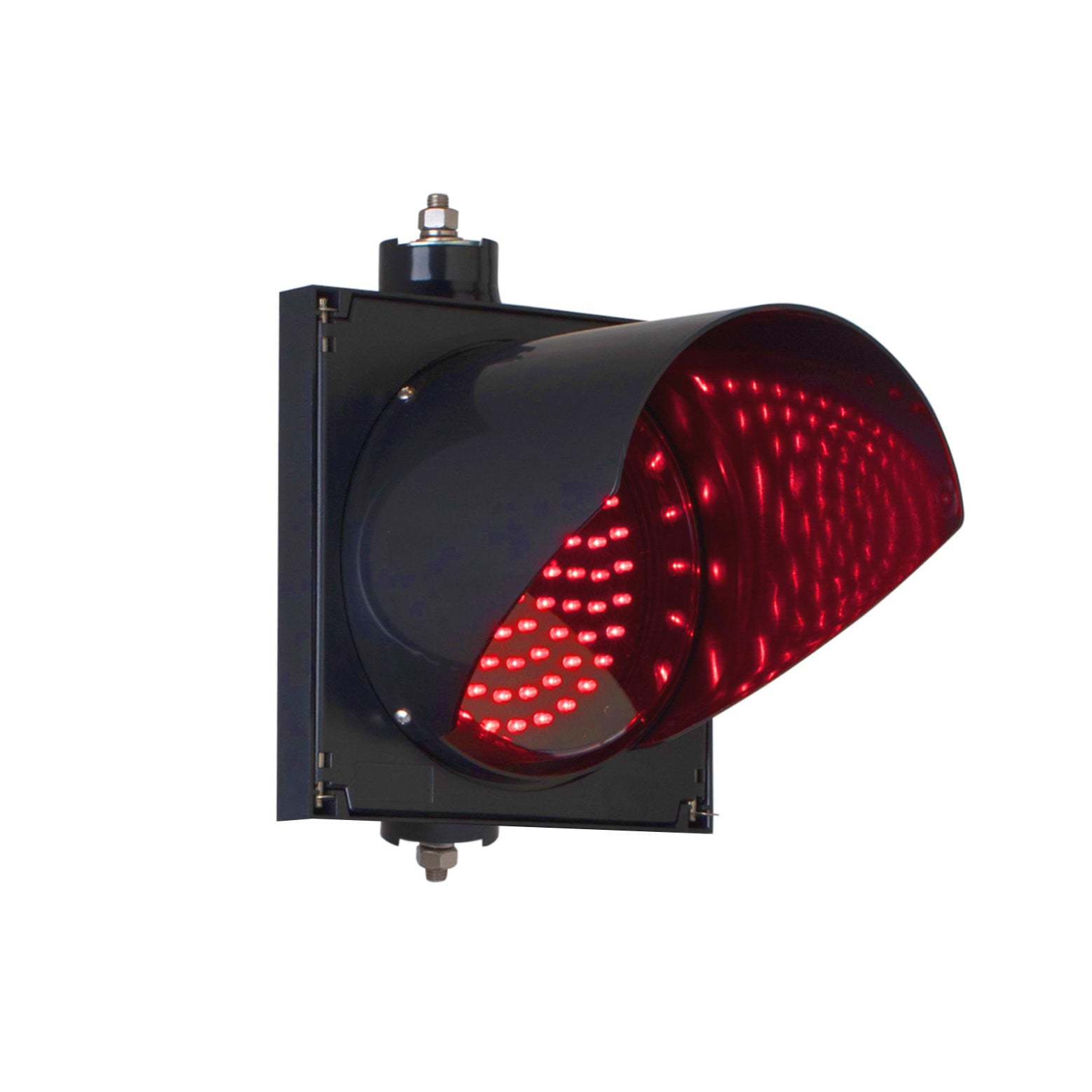

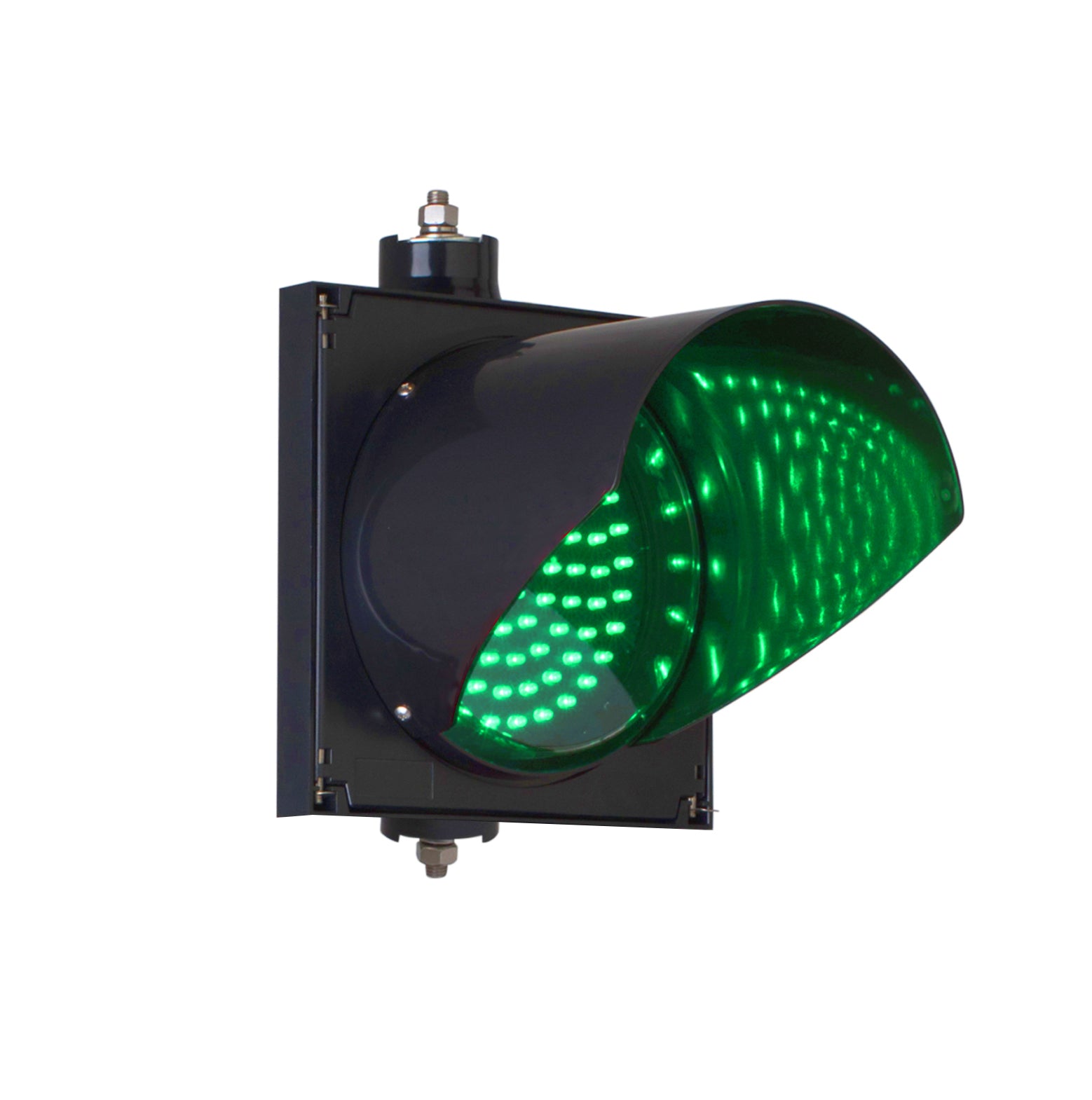

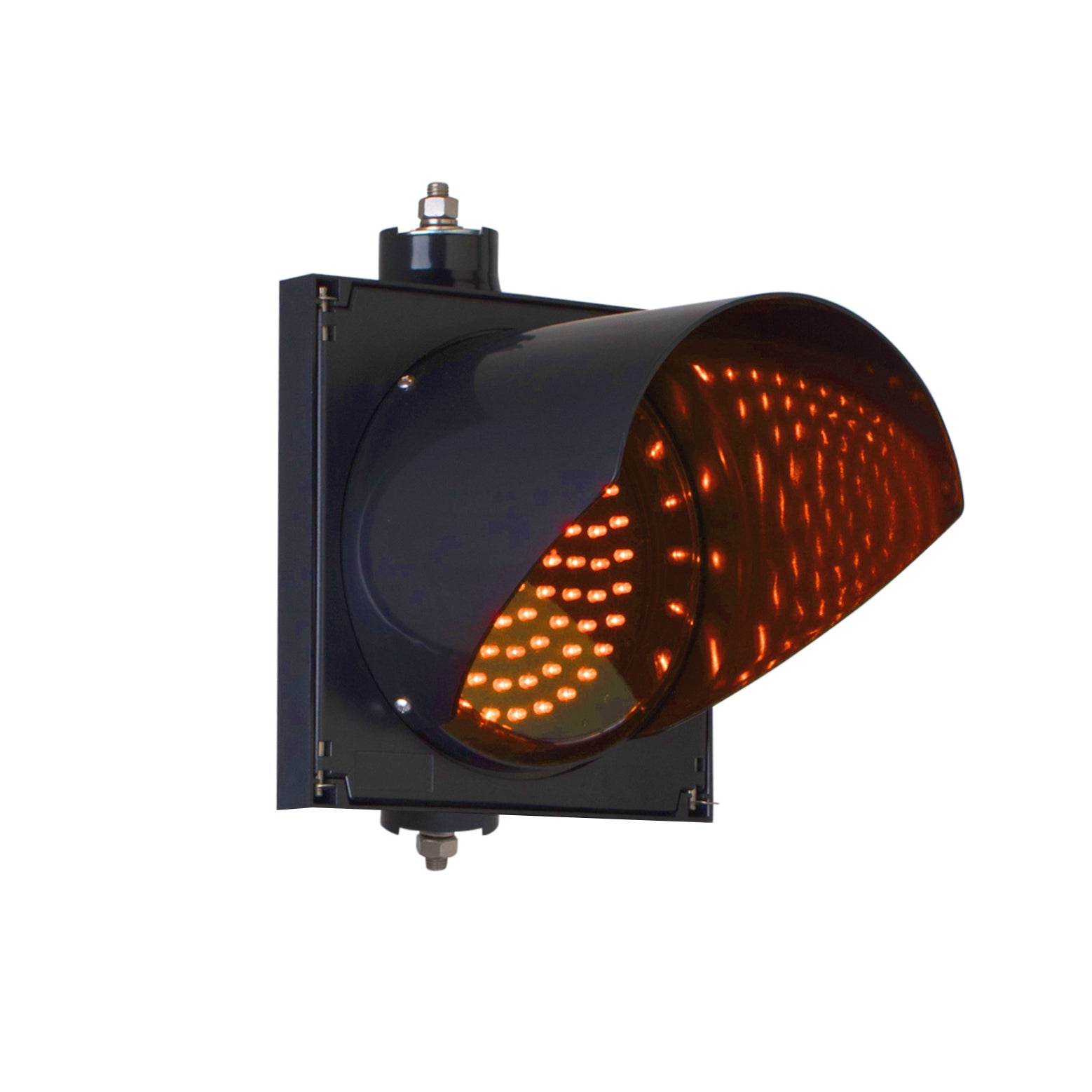

Single aspect 200mm LED Traffic light comes with sun visor and mounting brackets with the optional solid state flashing module. Allows traffic light to flash at 60FPM, great for warning, caution area signalling and status indication.

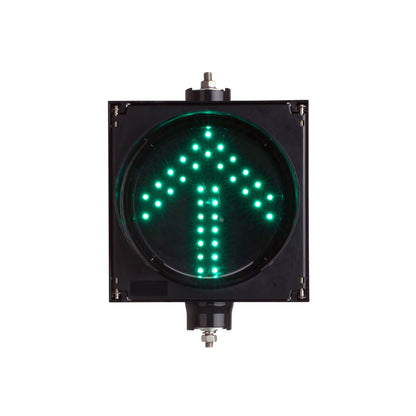

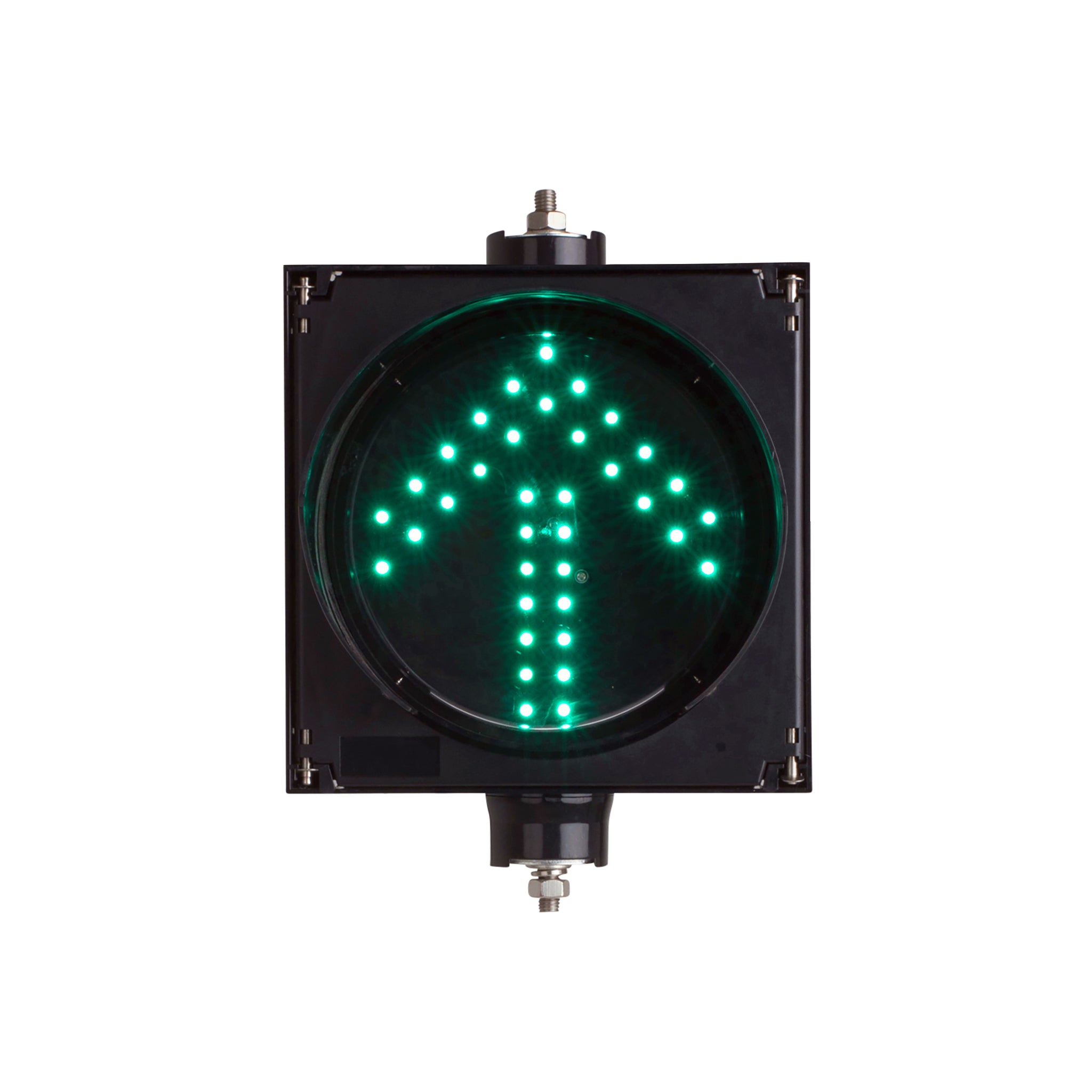

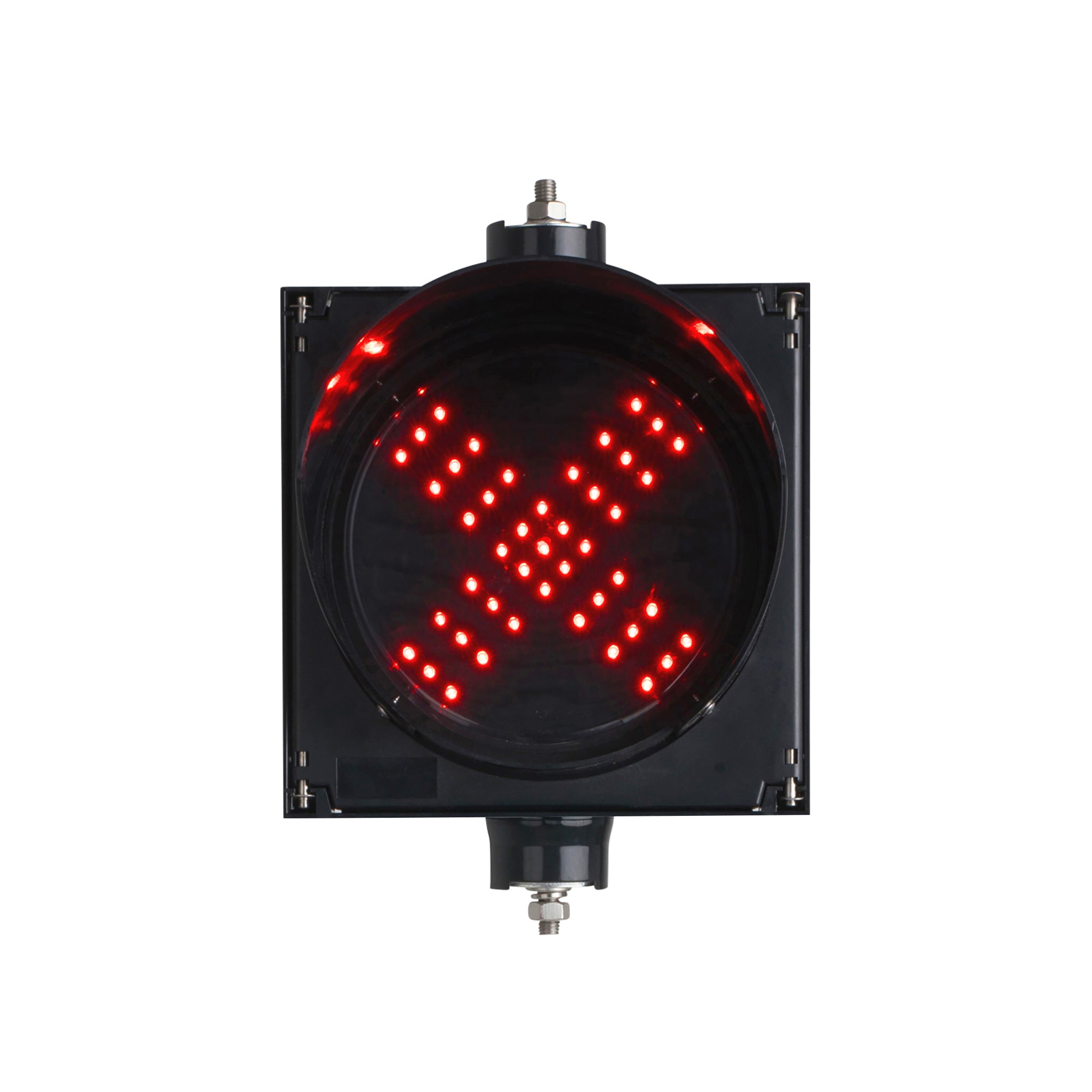

Wide range of different modules to choose from including Red X and coloured arrows. Arrow modules can be easily rotated to point desired direction.

The manufacturers quality management system is in compliance with GB/T19001-2008 and ISO9001:2008 standard. Our products are CE, RoHs and IP55 certified, comply with EN12368:2006 traffic control equipment regulation and come with 3 years warranty.





Features

  • Comply with: CE, GB14887,EN12368, RoHS and other related international standards.
  • Energy saving, power consumption 90% less than incandescent bulbs
  • High-intensity and efficient LED source, Life span more than 80,000 hrs.
  • Rational designed optical lens, anti-phantom effect, optimal viewing angle.
  • IP55 Dust-proof and weatherproof construction. Environmental friendly, RoHS compliant.
  • Flashing Module can be added for 60FPM flash rate.

Specifications

Input Voltage: 12-24VDC or 85-265VAC
Power Consumption 12-24VDC:

260mA @ 12VDC,160mA @ 24VDC (Red and Yellow Module)

420mA @ 12VDC, 220mA @ 24VDC (Green Module)

Power Consumption 85-265VAC: 2 watts
Lens Diameter: 200mm
Light Intensity: ≥400 cd (Red) ≥600 cd (Green and Yellow)
Dominate Wavelength: Red 625nm +/- 5, Yellow 590nm +/- 5, Green 505nm +/- 2
Working Temperature: -40ºC ~ +80ºC
Rating: IP55 Weather Resistant
Housing: UV Resistant Poly-carbonate
Working Humidity: ≤0.97
Average Life of LEDs: 80,000 Hours
View Distance: ≤300m
Mass: 5.2kg

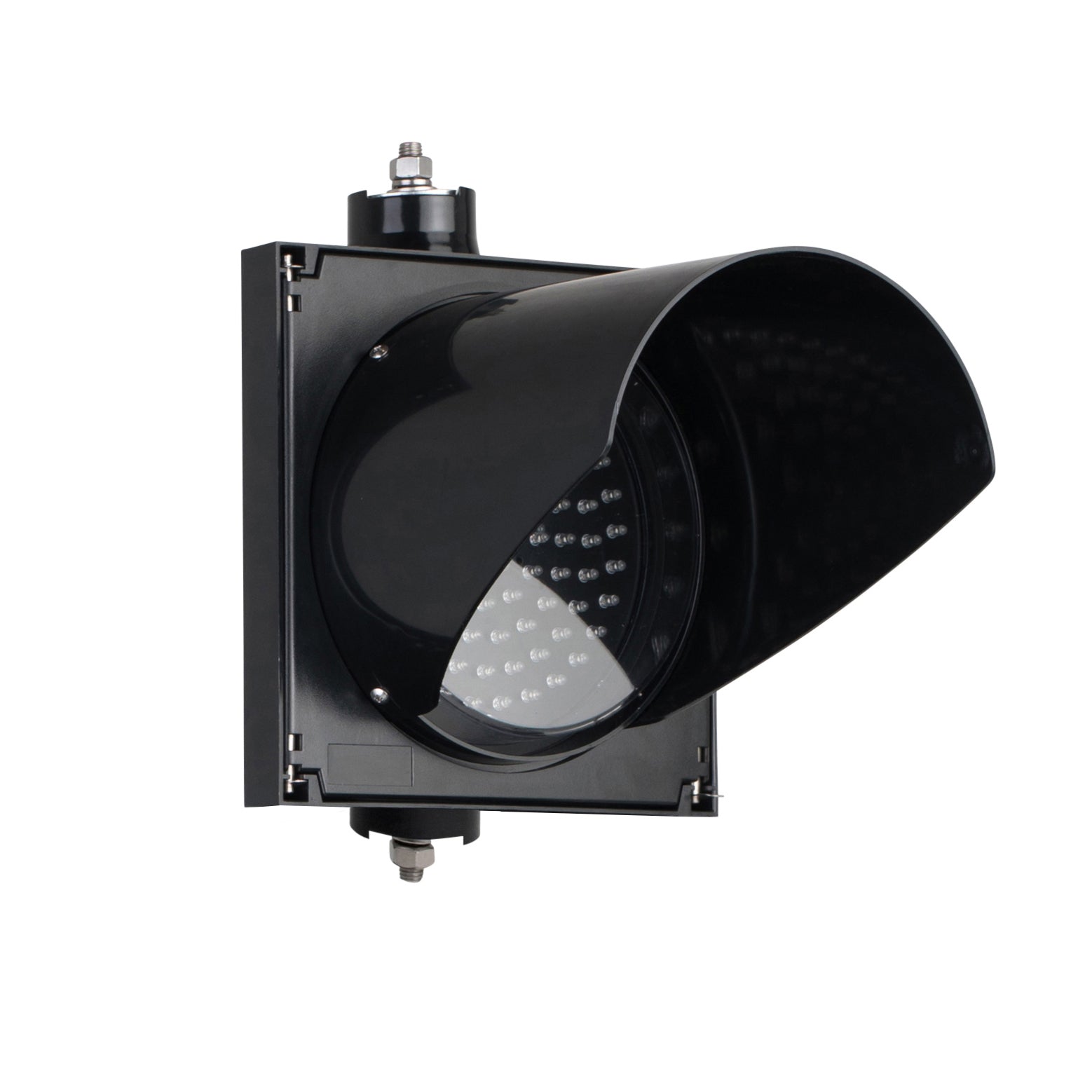

Sun Visors: Rotatable - can be mounting horizontal or vertical

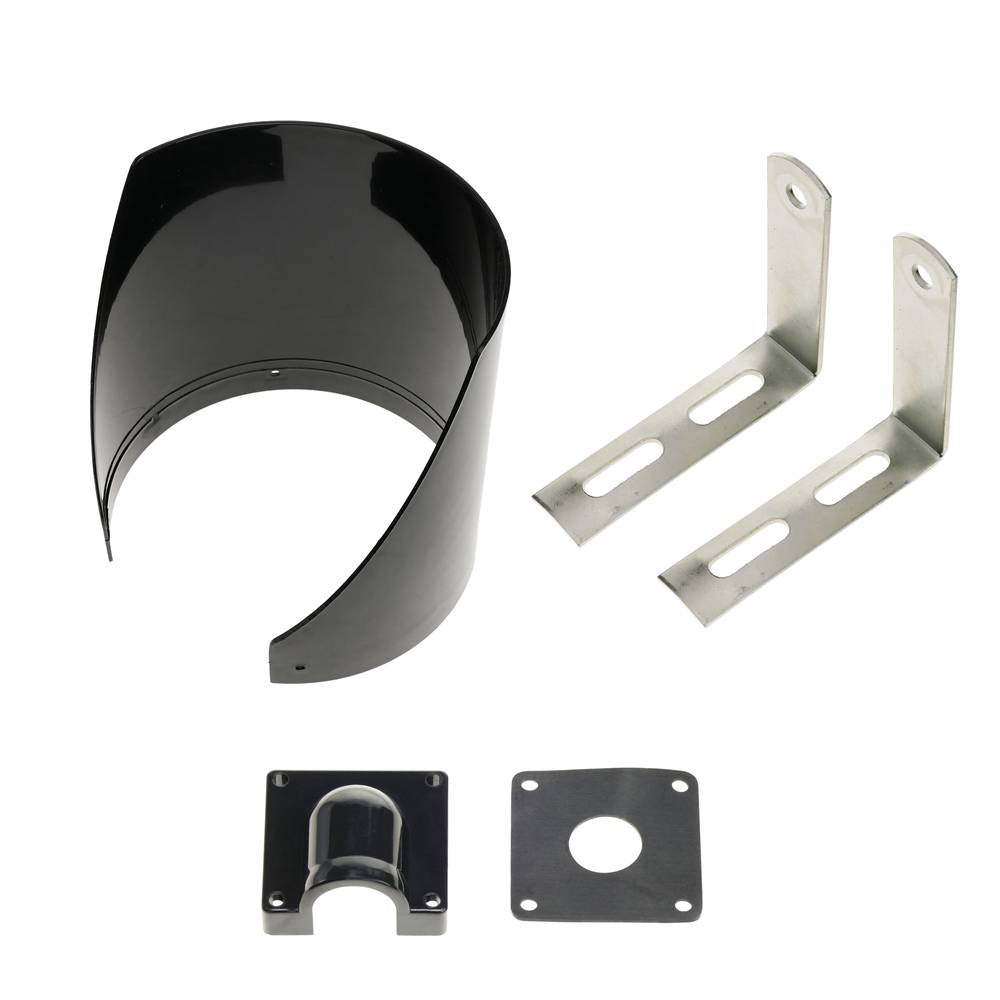

Right angle metal mounting brackets included

Wiring:

12-24VDC - Terminal 1: (Neg -), Terminal 2: (Pos +)

85-265VAC - Terminal 1: (Neutral N), Terminal 2: (Active L)

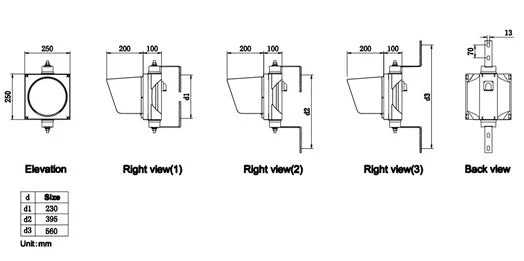

Dimensions
