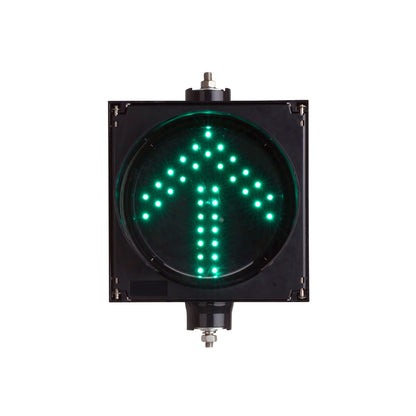

BNR Single Aspect 200mm Lane Control LED Traffic Light IP55 12-24VDC or 85-265VAC - Red X and Green Arrow Combination



Single Aspect 200mm Lane Control LED Traffic Light IP55 12-24VDC or 85-265VAC - Red X and Green Arrow Combination

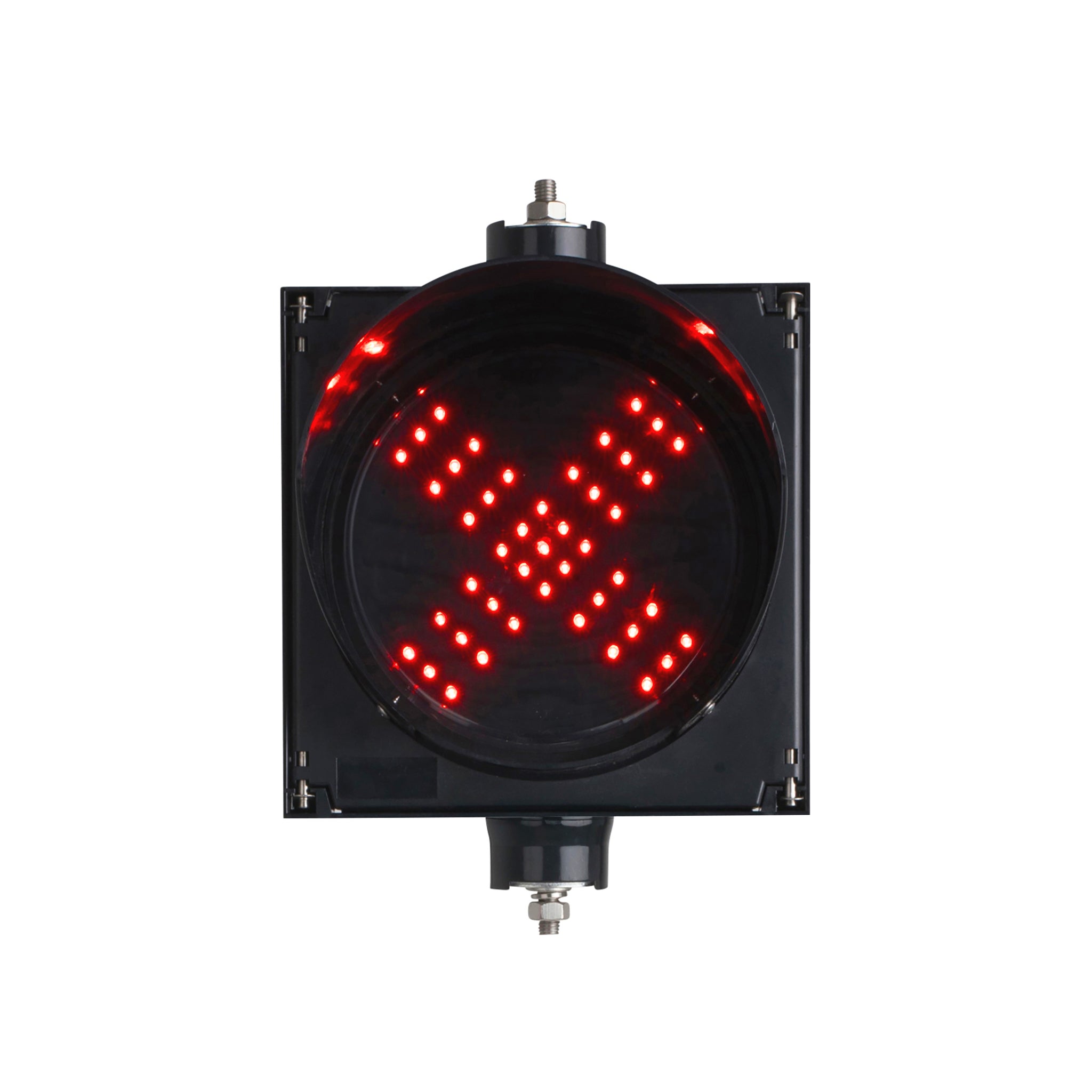

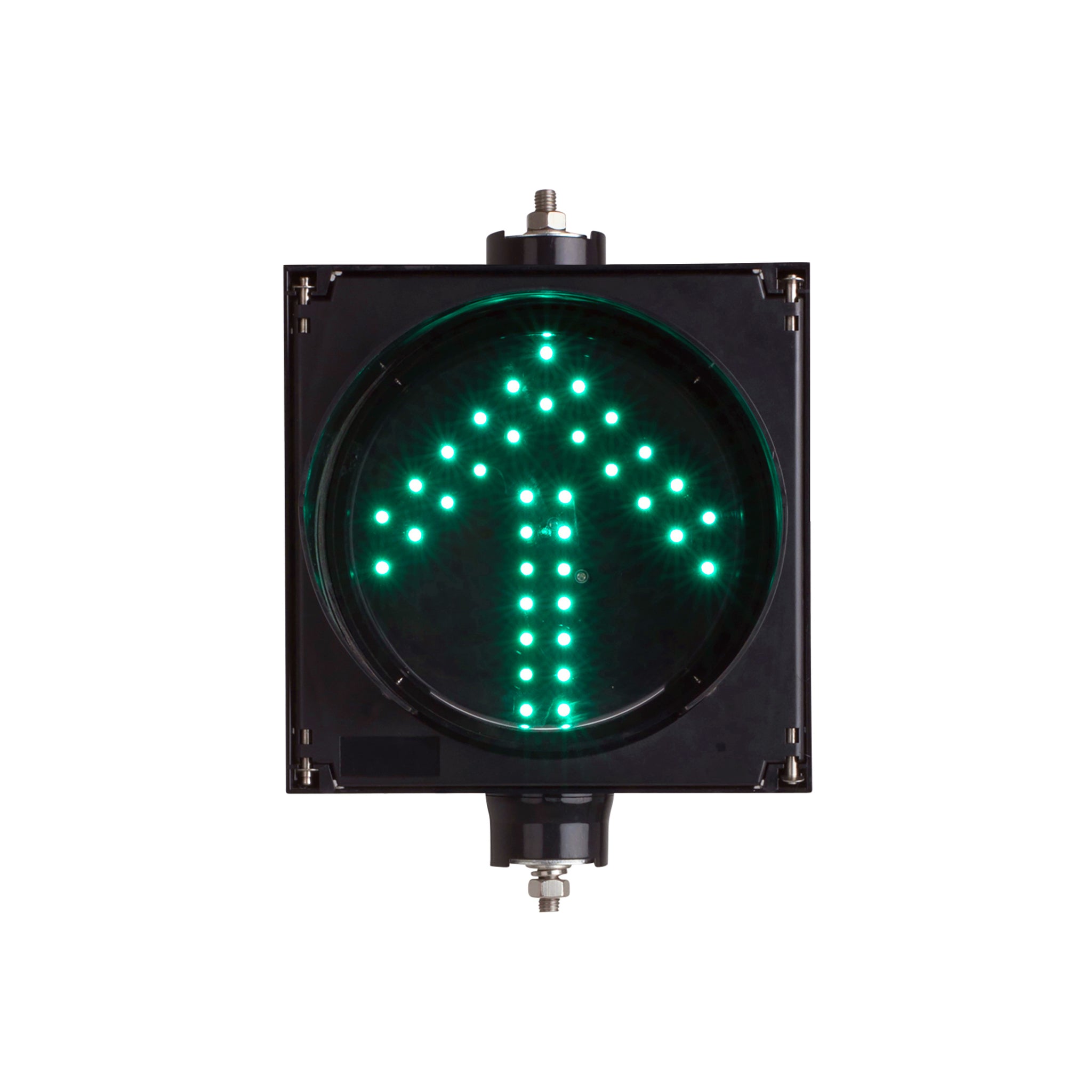

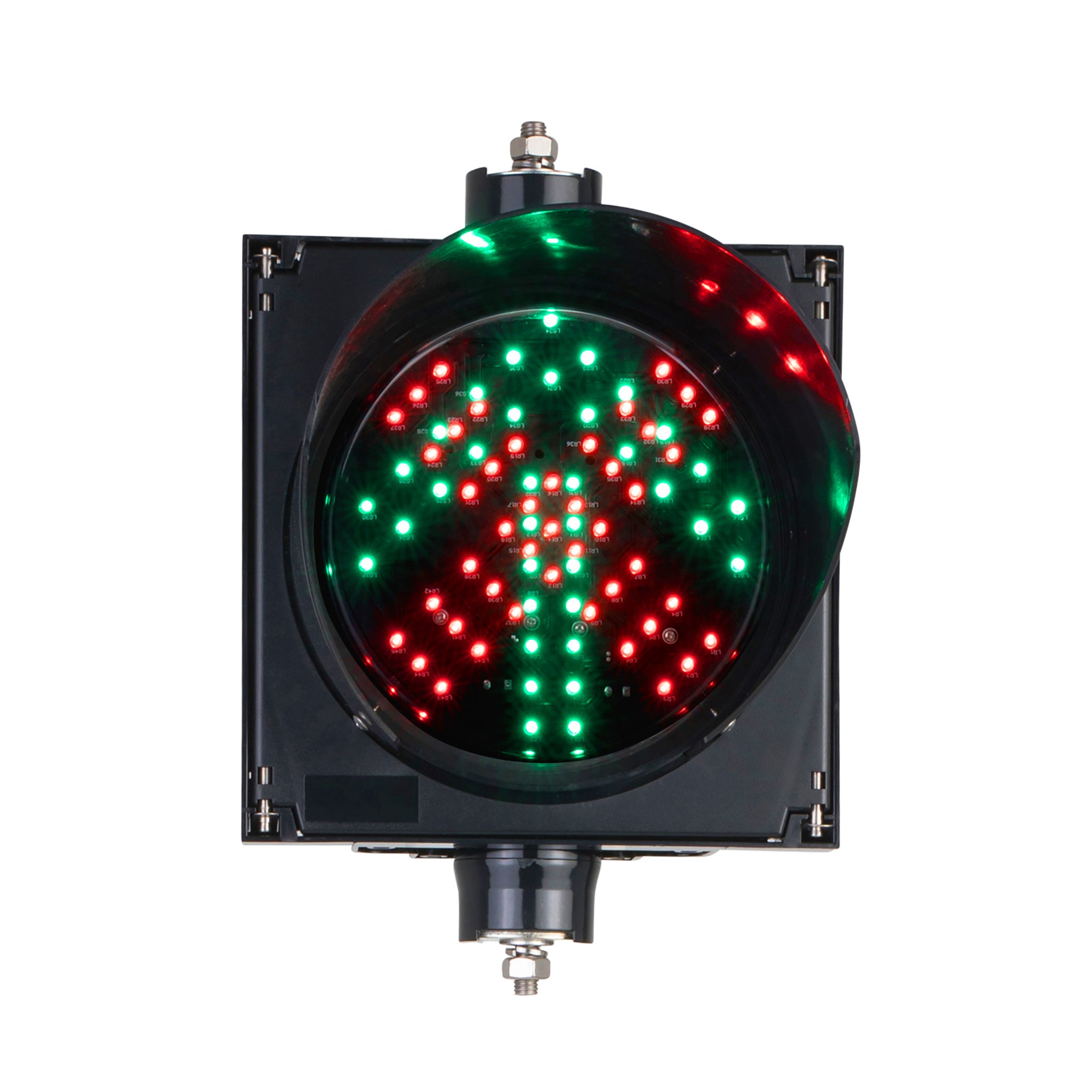

Lane control traffic light in one compact single module package, both Red X and Green Arrow in one unit. For toll stations, tunnels, access control points and multi lane control. Module can be easily rotated to point green arrow and desired direction.

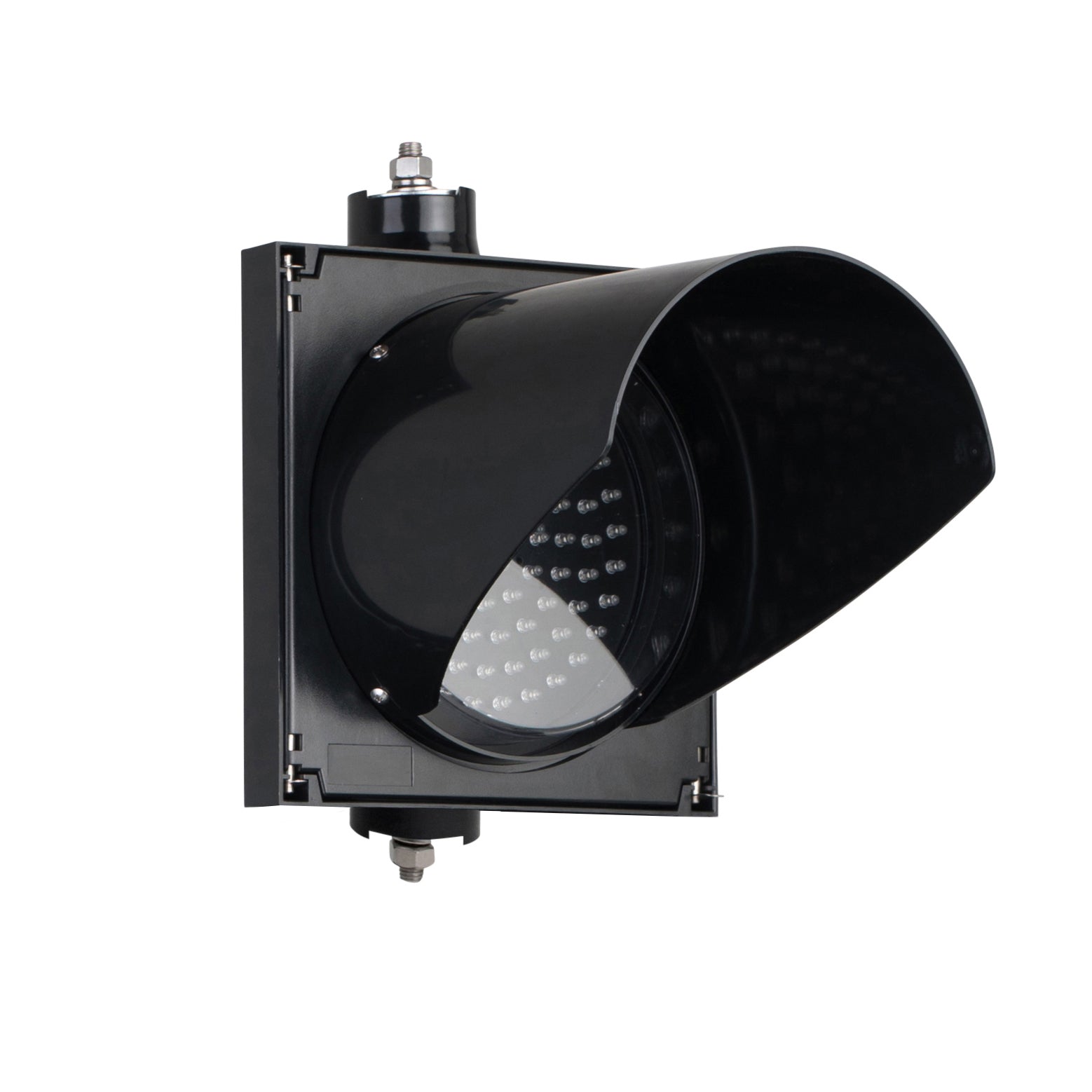

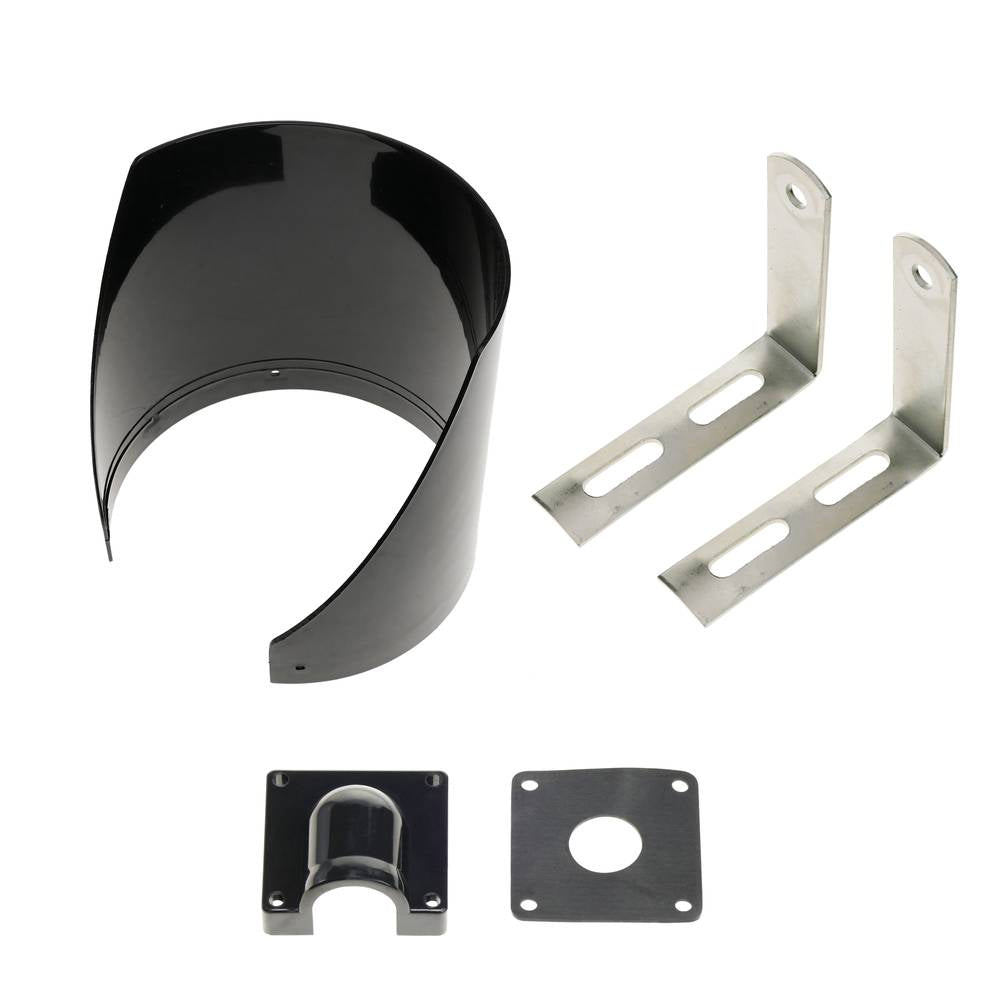

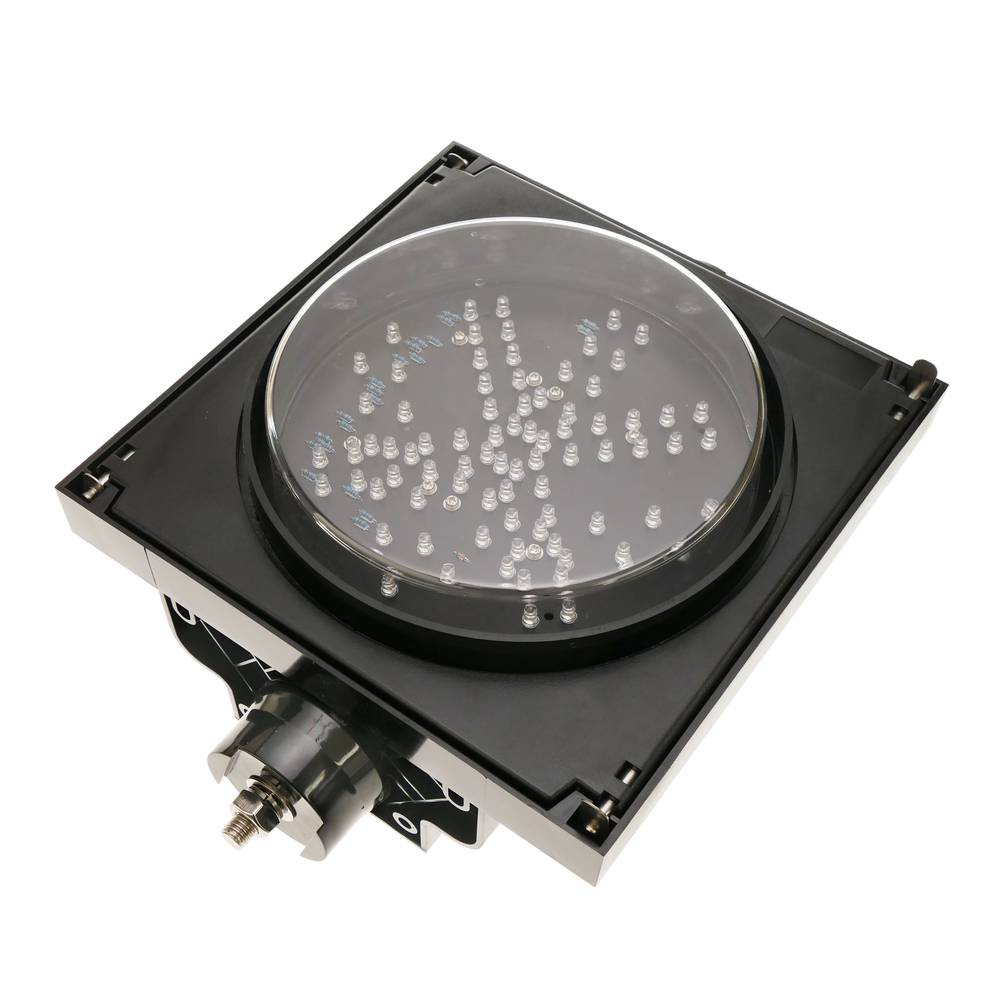

Single aspect 200mm LED Traffic light comes with sun visor and right angle metal mounting brackets which can be easily mounted to a pole or wall. M20 entry at the back for used with nylon gland or use the provided conduit hood for use with flexible conduit.

The manufacturers quality management system is in compliance with GB/T19001-2008 and ISO9001:2008 standard. Our products are CE, RoHs and IP55 certified, comply with EN12368:2006 traffic control equipment regulation and come with 3 years warranty.


  • Comply with: CE, GB14887,EN12368, RoHS and other related international standards.
  • Energy saving, power consumption 90% less than incandescent bulbs
  • High-intensity and efficient LED source, Life span more than 80,000 hrs.
  • Rational designed optical lens, anti-phantom effect, optimal viewing angle.
  • IP55 Dust-proof and weatherproof construction. Environmental friendly, RoHS compliant.
  • Assembled in Melbourne, Australia


Input Voltage: 12-24VDC or 85-265VAC
Power Consumption 12-24VDC:

160mA @ 12VDC, 100mA @ 24VDC (Red X)

170mA @ 12VDC, 120mA @ 24VDC (Green Arrow)

Power Consumption 85-265VAC: 2 watts per module
Lens Diameter: 200mm
Light Intensity: ≥400 cd (Red) ≥600 cd (Green and Yellow)
Dominate Wavelength: Red 625nm +/- 5, Yellow 590nm +/- 5, Green 505nm +/- 2
Working Temperature: -40ºC ~ +80ºC
Rating: IP55 Weather Resistant
Housing: UV Resistant Poly-carbonate
Working Humidity: ≤0.97
Average Life of LEDs: 80,000 Hours
View Distance: ≤300m
Mass: 3kg
Sun Visors: Rotatable - can be mounting horizontal or vertical
Right angle metal mounting brackets included


12-24VDC - Terminal 1: (Neg -), Terminal 2: Red X (Pos +), Terminal 3: Green Arrow (Pos +)

85-265VAC - Terminal 1: Common (Neutral N), Terminal 2: Red X (Active L), Terminal 3: Green Arrow (Active L)
