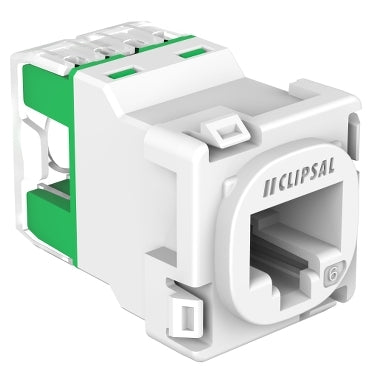

Clipsal CAT6 UTP RJ45 Modular Socket

Clipsal

30RJ45SMA6 Modular Socket, Category 6, UTP, RJ45

The Clipsal category 6 UTP solution provides the customer with a great value proposition. The system is designed to operate up to 250MHz and offers a solution for horizontal cabling, as well as backbone cabling where required. The product utilises lead frame technology, which delivers reliability above other PCB product. Clipsal category 6 UTP jacks are colour coded for both 568A and 568B standards. Clear wire retaining caps are supplied and can be used to provide additional cable strain relief

Features

  • 30 Mechanism non-shuttered
  • Fully compliant to AS/NZS 3080:2003, ISO/IEC 11801 Edition 2 2002 and ANSI/TIA/EIA-568-B Series connecting hardware standards
  • Backward compatible with category 5e products
  • UL 94V-0 Rated
  • Various colours for easier circuit identification
  • Can be used in multi-user teleco mmunication outlets
  • Flexible locking tabs for easy removal from wall plates
  • Clear IDC caps allow for termination verification and assist in cable retention
  • -40 to 70 deg C Temperature range
  • Nickel plating
  • 0.7 - 1.6 mm Insulation diameter
  • Fire retardant UL 94v-0, Plastic cover
