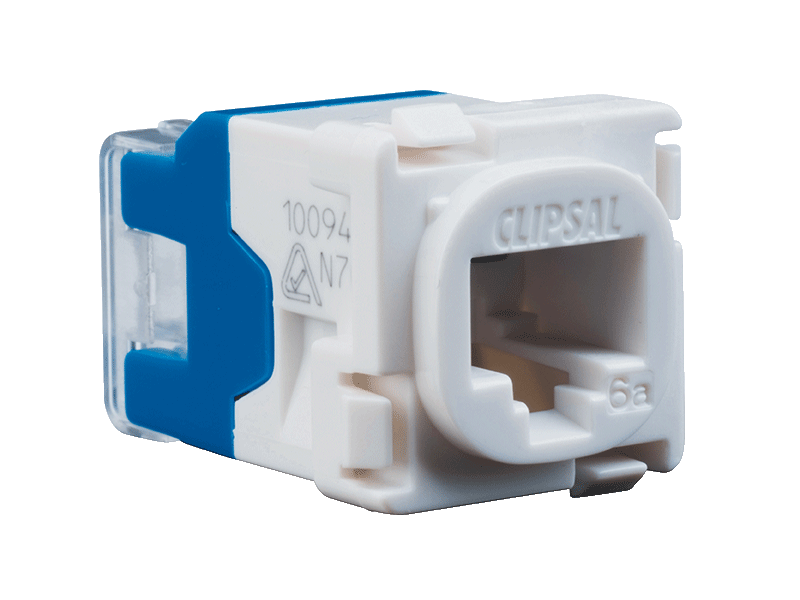

Clipsal CAT6A UTP RJ45 Modular Socket 30RJ45SMA6A

Clipsal

30RJ45SMA6A Modular Socket, Category 6A, UTP, RJ45

The Clipsal category 6A UTP system is designed to support 10G base tapplications, and offers a great solution for an installation requiring high speed and high bandwidth. This solution includes cable, patch panels, patch cables and modular jacks, as well as faceplates and cable management, and offers excellent headroom. The Clipsal range of products are the next generation of data communications solutions. These modular jacks are Colour coded for both 568A and 568B standards. Clear wire retaining caps are supplied and should be used to provide additional cable strain relief

Features

  • 30 Mechanism non-shuttered
  • Fully compliant to AS/NZS 3080:2003, ISO/IEC 11801 and ANSI/TIA/EIA-568-C Series
  • Backward Compatible
  • Flexible Locking Tabs
  • UL 940-0 Rated
  • Copper Shielded Shutter Cap to Eliminate alien Crosstalk Associated with Category 6A
  • Various colours for easier circuit identification
  • -40 to 70 deg C Temperature range
  • Nickel plating
  • Can be used in Multi-user teleco mmunication outlet applications (MUTO) and Consolidation points (CP)
  • Clear insulation displacement connector caps allow for termination verification and assist in cable retention
