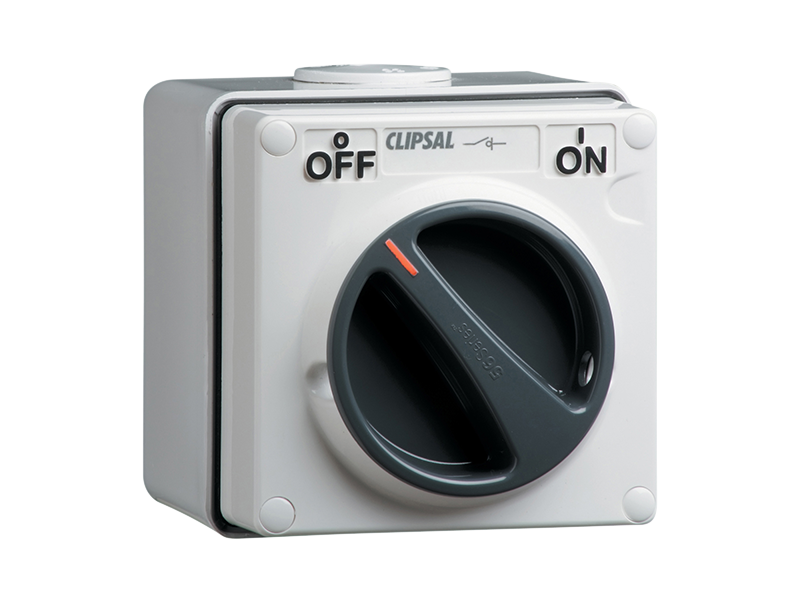

Clipsal 56SW115 Surface Isolating Switch, 1 Gang, 1 Pole, 15A 250V, IP66

56SW110 Surface Switch, 250V, 10A, 1 Gang

Switches, Surface Switches - IP66, Standard Range In Standard Enclosures, 250V 15A - Single pole 1 way 2 terminal 30 Series mechanism.

Designed to satisfy customer needs, precisely engineered and carefully manufactured. Clipsal industrial switchgear is as versatile as your requirements. The Clipsal 56 and 66 series satisfies these challenges with the use of durable engineering plastics

56SW115-GY replaces WISM116

Features

• 1 gang
• Two-terminal switch
• 107 mm Height x 101 mm Width x 83 mm Depth
• 8 mm hole diameter
• 1.5 - 6 sq mm conductor terminal
• M80 Motor rating

Downloads

Clipsal 56 & 66 Series catalogue (PDF)
