BNR 2 Aspect 200mm Wig-Wag LED Traffic Lights 12-24VDC or 110-240VAC

BNR

Voltage
Target Board

Alternating flashing traffic light, great for pedestrian crossing or caution areas

The Wig-Wag type LED traffic light is suitable for application where there is a need to warn drivers that they are approaching a possible hazard, such as pedestrian crossing. The two aspects flash alternately when power is applied.

Most common configured with yellow modules and can be configured with red modules to alert for more dangerous conditions.

The integrated flasher module is a solid-state unit, rated for 100% continuous duty cycle. It contains no relays and therefore is completely silent in operation.

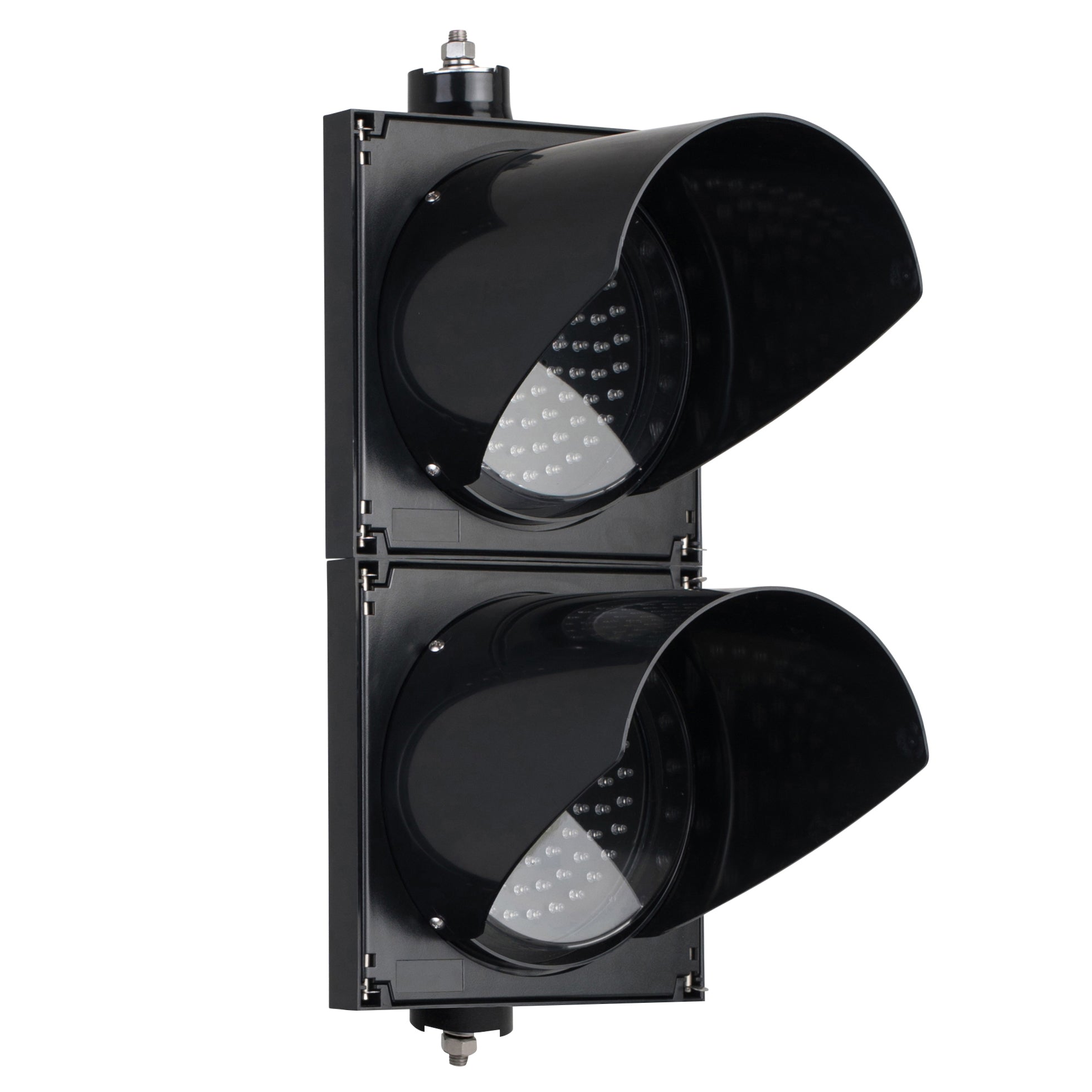

2 aspect 200mm LED Traffic light comes with sun visor and right angle metal mounting brackets which can be easily mounted to a pole or wall. M20 entry at the back for used with nylon gland or use the provided conduit hood for use with flexible conduit.

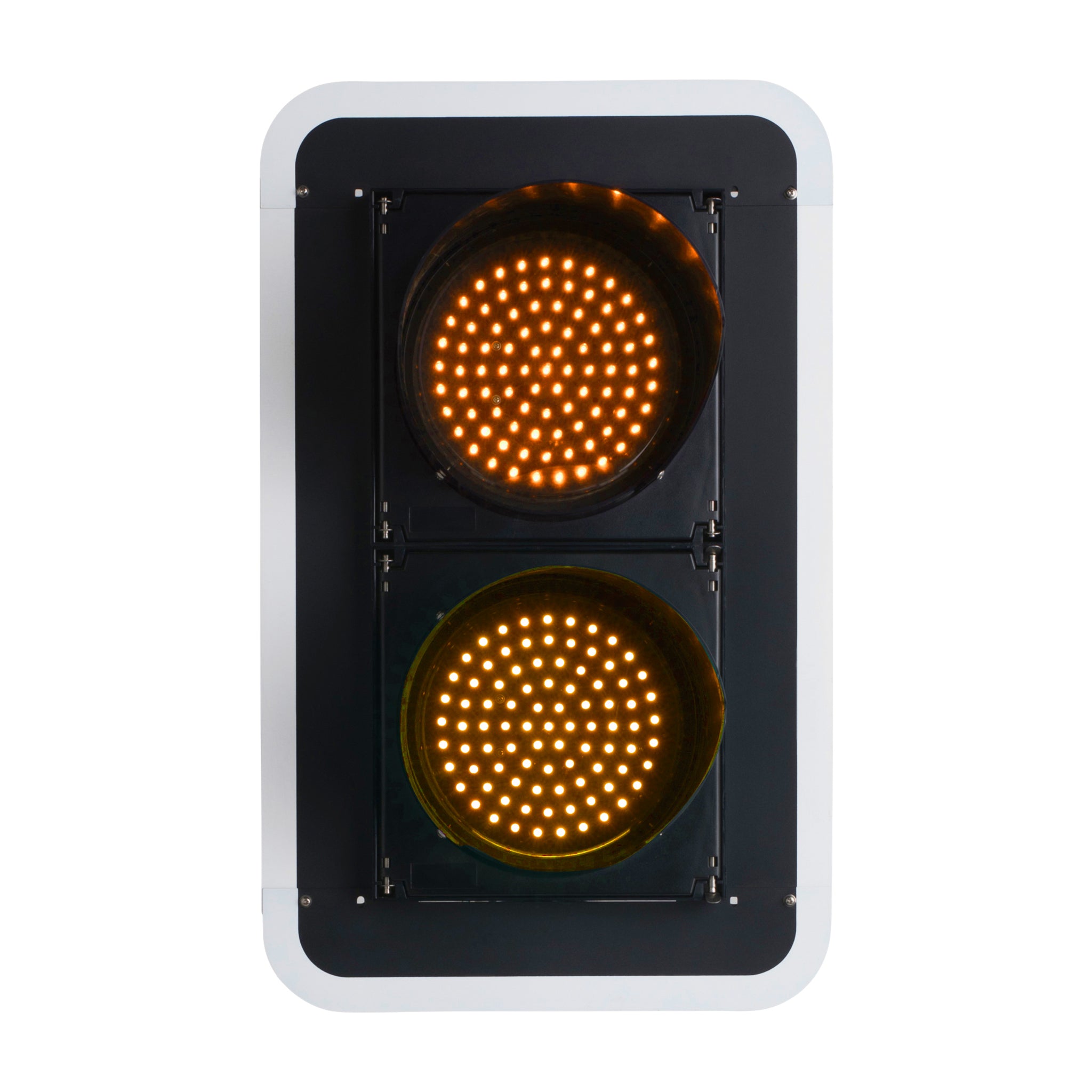

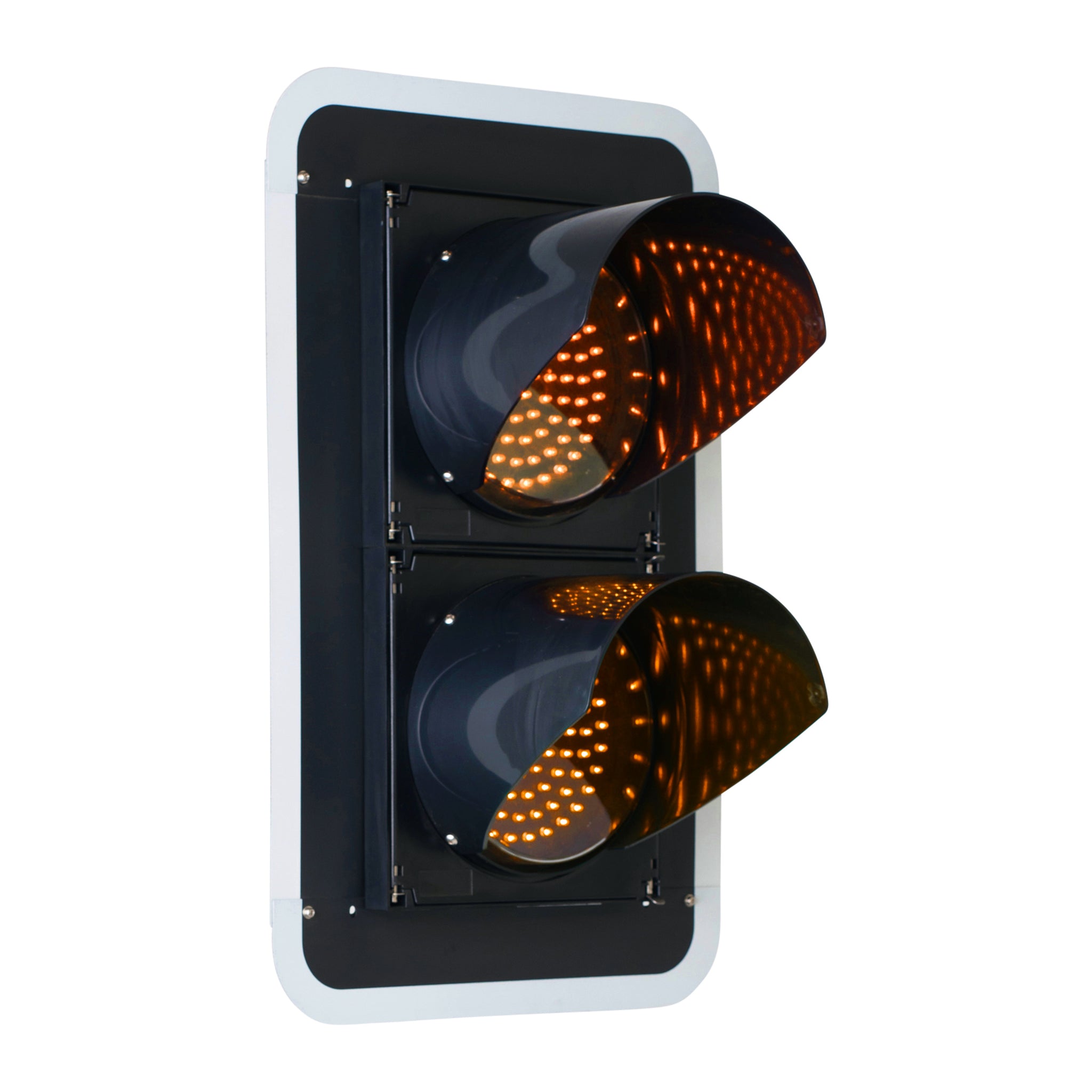

Target board options available to draw more attention to the traffic light.

Features

  • Comply with: CE, GB14887,EN12368, RoHS and other related international standards.
  • Energy saving, power consumption 90% less than incandescent bulbs
  • High-intensity and efficient LED source, Life span more than 80,000 hrs.
  • Rational designed optical lens, anti-phantom effect, optimal viewing angle.
  • IP55 Dust-proof and weatherproof construction. Environmental friendly, RoHS compliant.

Specifications

nput Voltage: 12-24VDC or 85-265VAC
Power Consumption 12-24VDC:

260mA @ 12VDC,160mA @ 24VDC (Red and Yellow Module)

Power Consumption 110-240VAC: 2 watts
Lens Diameter: 200mm
Light Intensity: ≥400 cd (Red) ≥600 cd (Green and Yellow)
Dominate Wavelength: Red 625nm +/- 5, Yellow 590nm +/- 5, Green 505nm +/- 2
Working Temperature: -40ºC ~ +80ºC
Rating: IP55 Weather Resistant
Housing: UV Resistant Poly-carbonate
Working Humidity: ≤0.97
Average Life of LEDs: 80,000 Hours
View Distance: ≤300m
Mass: 5.2kg
Sun Visors: Rotatable - can be mounting horizontal or vertical
Right angle metal mounting brackets included

Wiring:

12-24VDC - Terminal 1: (Neg -), Terminal 2: (Pos +)

85-265VAC - Terminal 1: (Neutral N), Terminal 2: (Active L)
