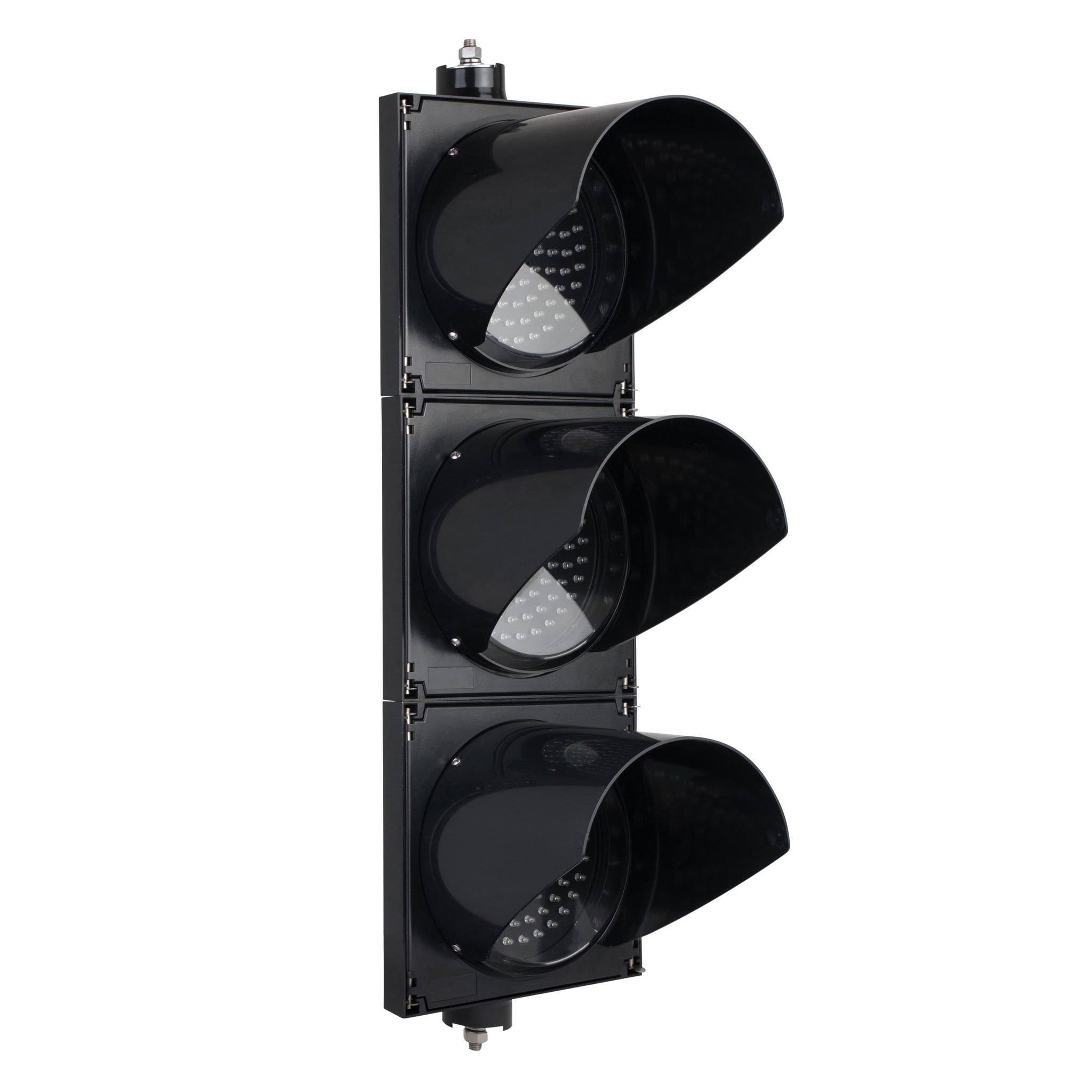

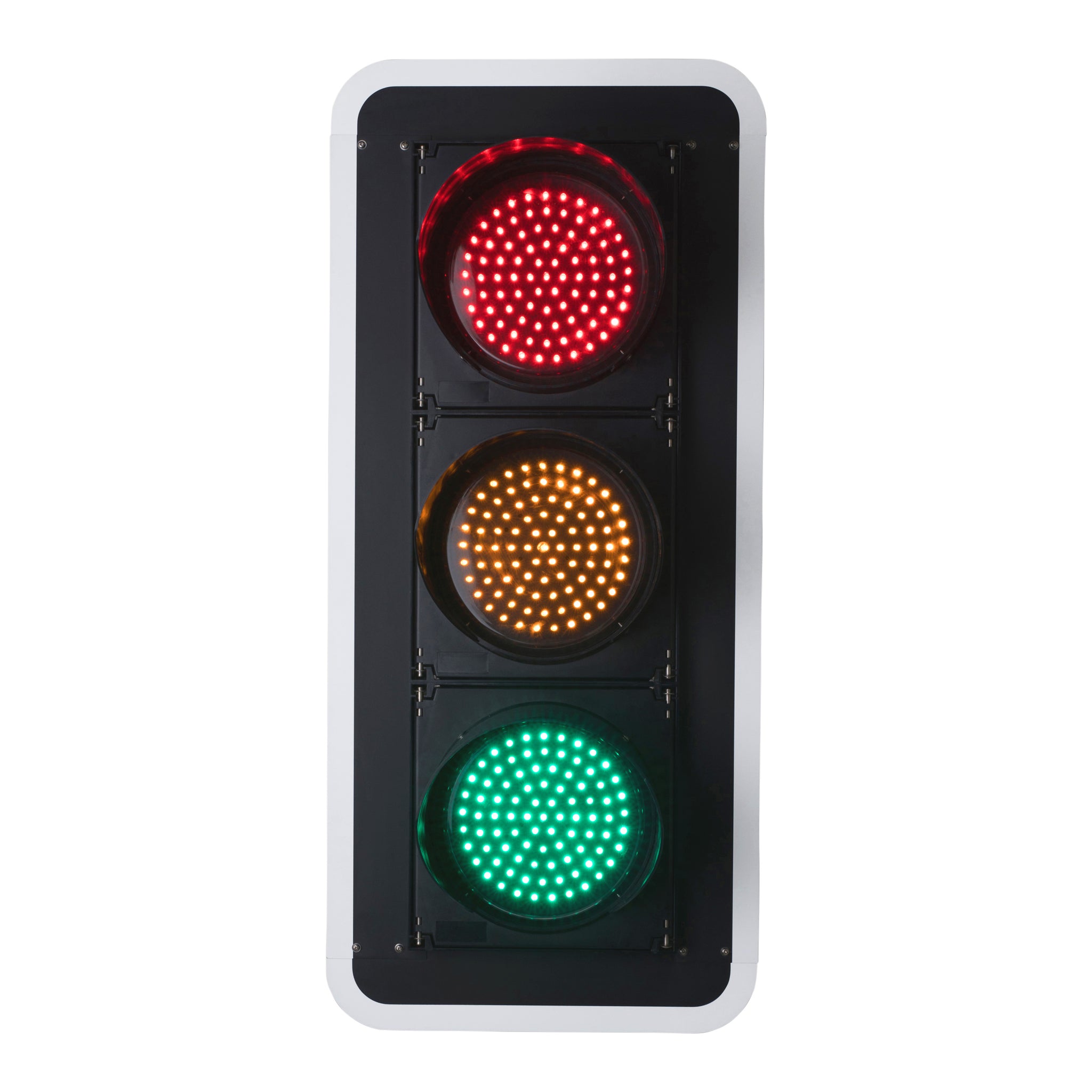

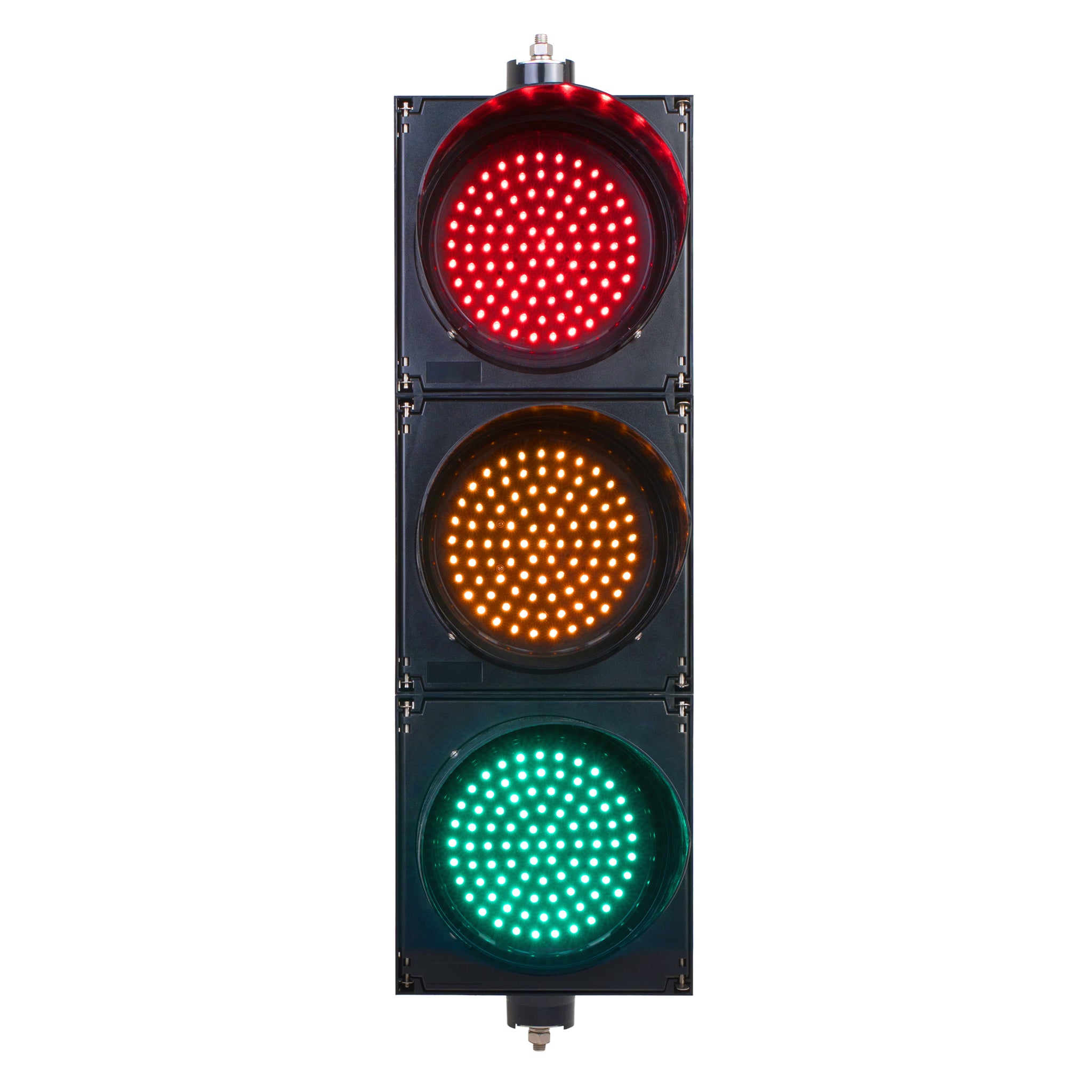

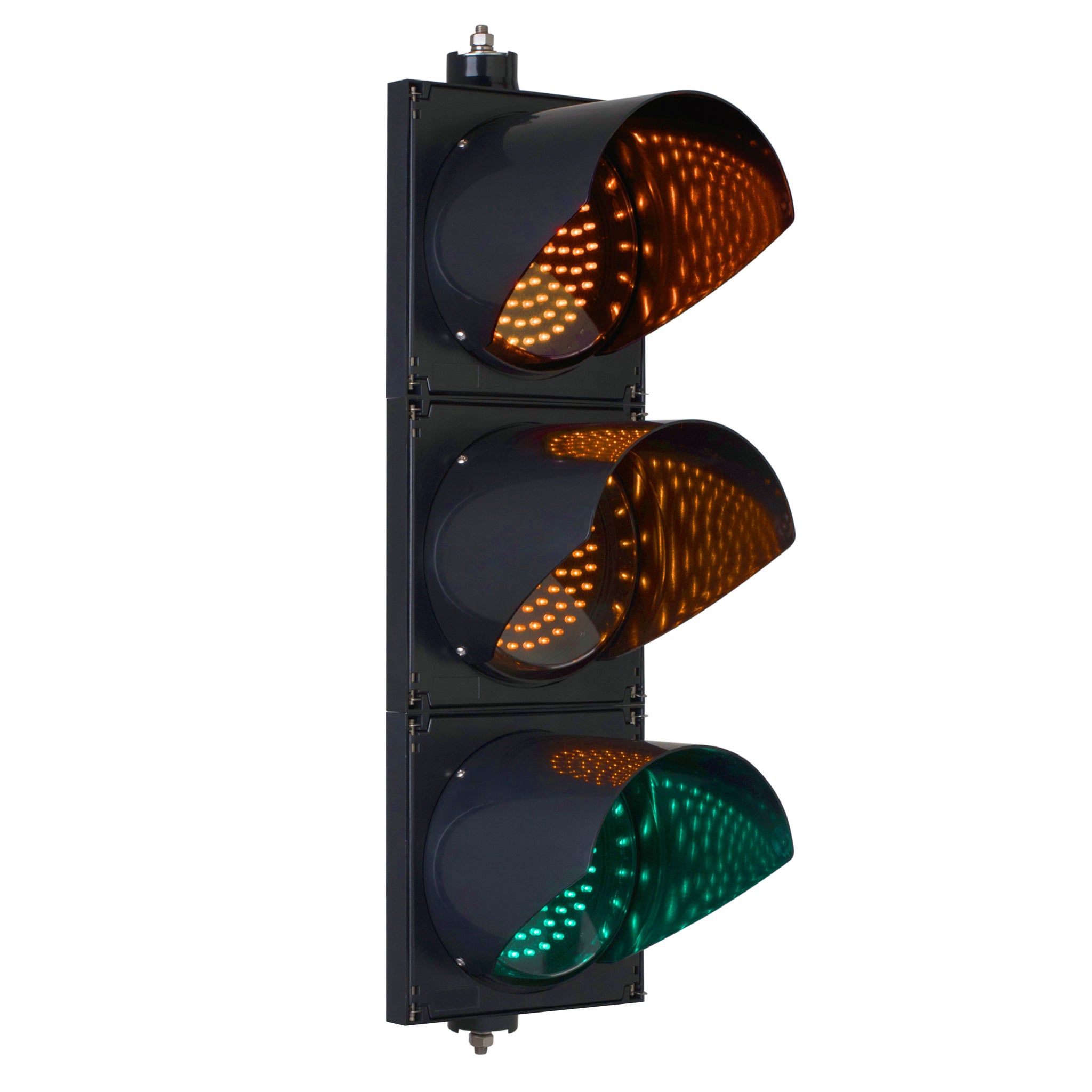

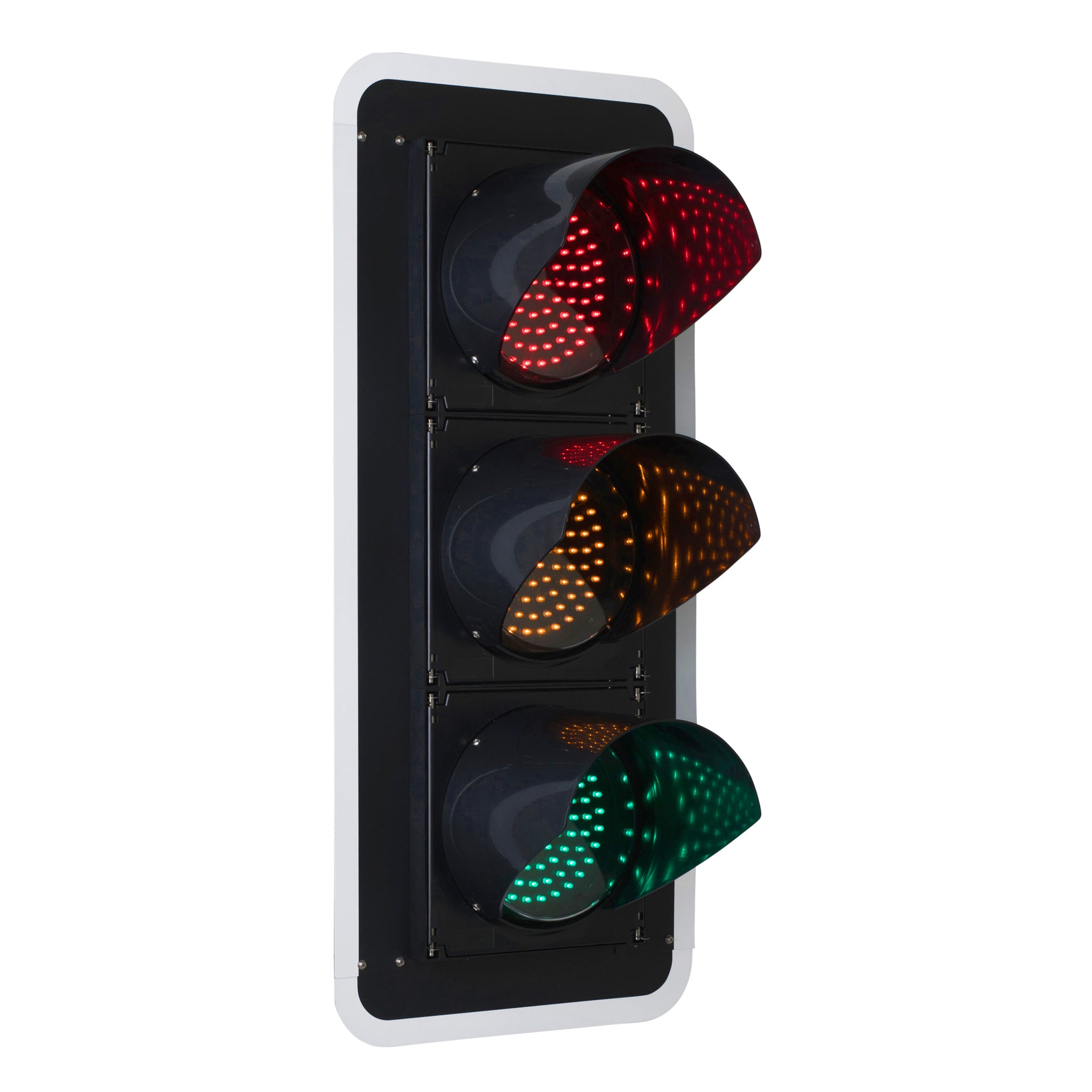

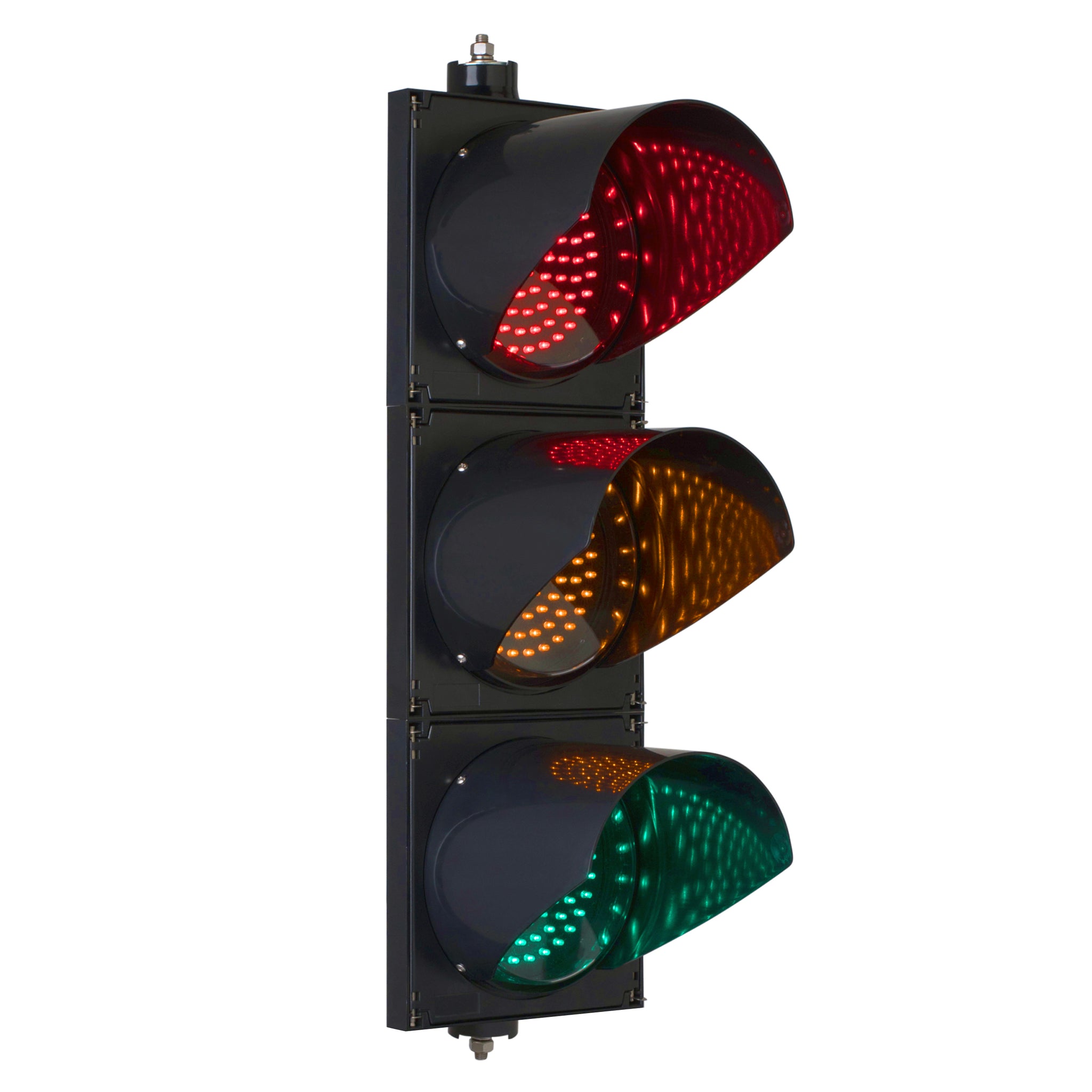

Customisable 3 Aspect 200mm LED Traffic Lights 12-24VDC - Arrows and Colours

BNR

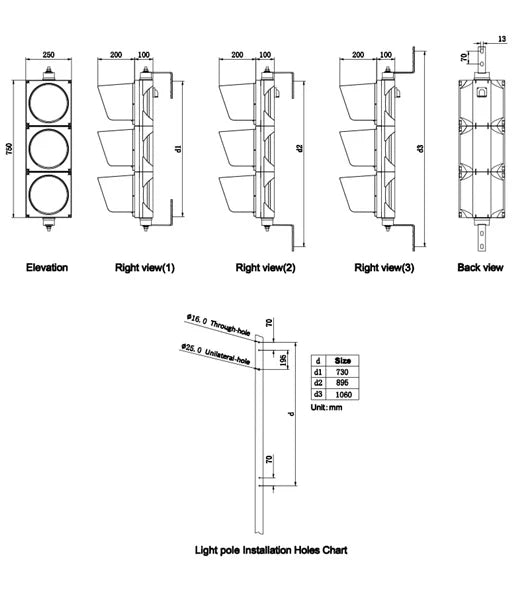

Size


Custom order your Traffic light with the following modules to choose from

Directional Arrows (Can be installed in any direction):

Colour Modules:



Features

  • Comply with: CE, GB14887,EN12368, RoHS and other related international standards.
  • Energy saving, power consumption 90% less than incandescent bulbs
  • High-intensity and efficient LED source, Life span more than 80,000 hrs.
  • Rational designed optical lens, anti-phantom effect, optimal viewing angle.
  • IP65 Dust-proof and waterproof construction. Environmental friendly, RoHS compliant.

Specifications

200mm LED TRAFFIC LIGHT

Power supply: 12-24VDC

Power Consumption: 260mA @ 12VDC,160mA @ 24VDC (Red and Yellow Module)

420mA @ 12VDC, 220mA @ 24VDC (Green Module)

Average life of LEDS: 80,000 hours.

Lens diameter: 200mm.

Number of LEDs: 90 per aspect.

Light output: >4000mcd/m

Dominant wavelength: Red 625nm +/- 5, Yellow 590nm +/- 5, Green 505nm +/- 2

Housing: PMMA, UV stabilised.

Mass: 6.6kg (3 aspect)

IP rating: IP65

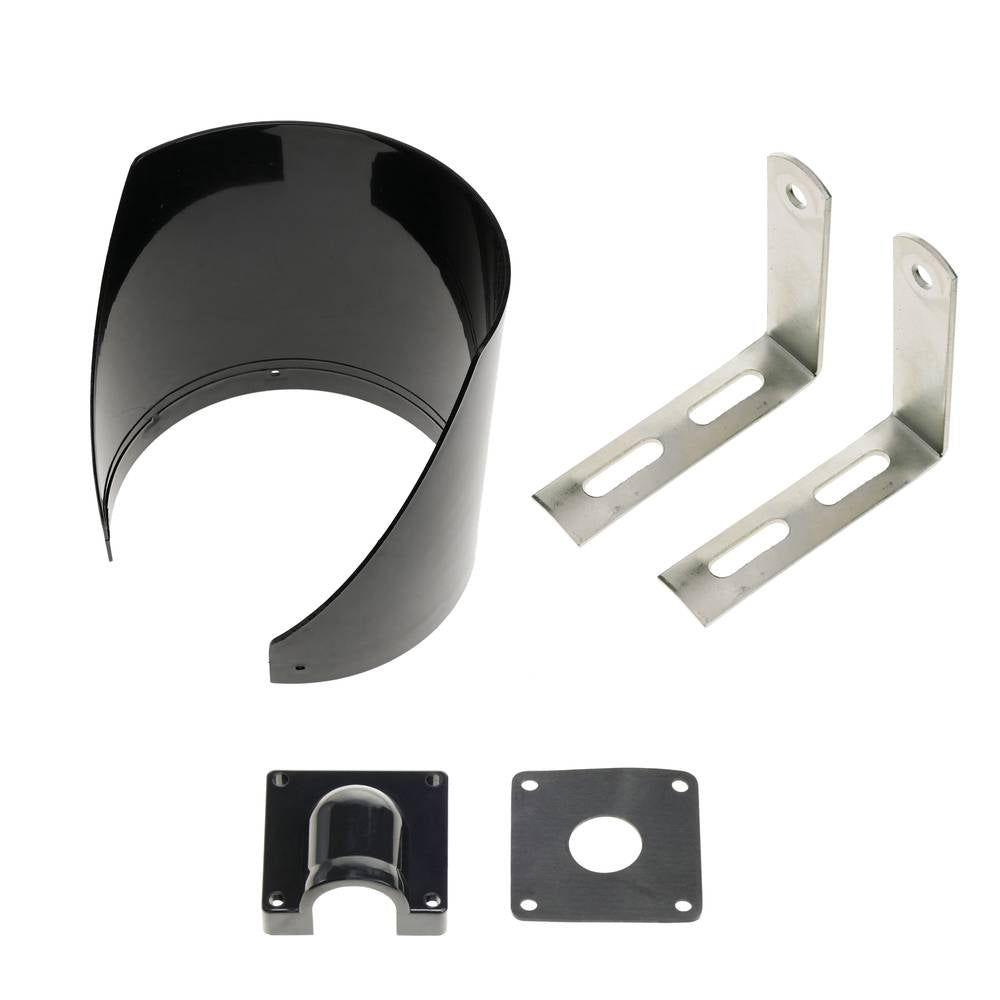

Sun visors: Separate, horizontal or vertical.

Operating Temp: -40℃ ~ +80℃

Mounting: Adjustable wall brackets (incl)

Click Here for PDF Datasheet



Wiring Diagram

LED Traffic Lights Wiring Diagram

For Standard Red/Yellow/Green model click here
