E2S B300LDA LED Beacon - Multi-Function Array

E2S

Voltage
Colour
Amber
Blue
Clear
Green
Red

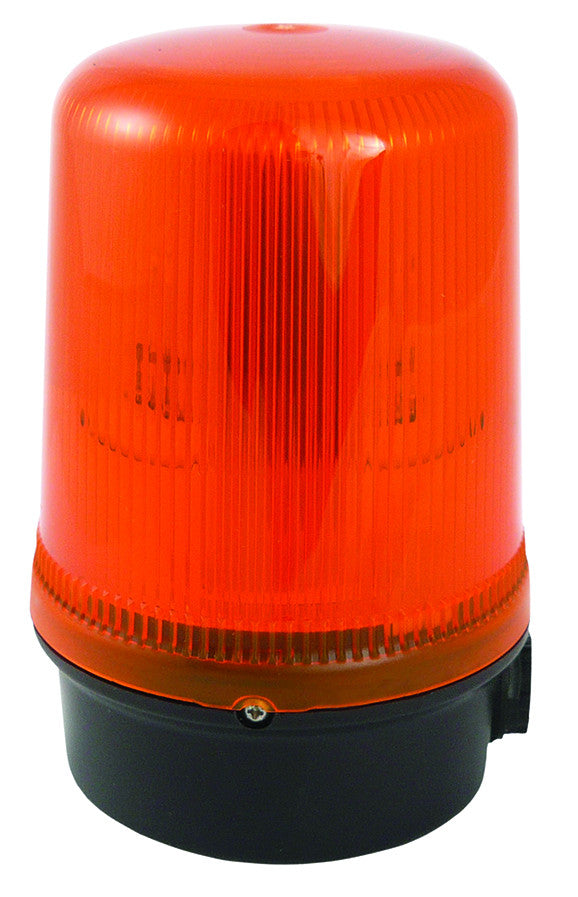

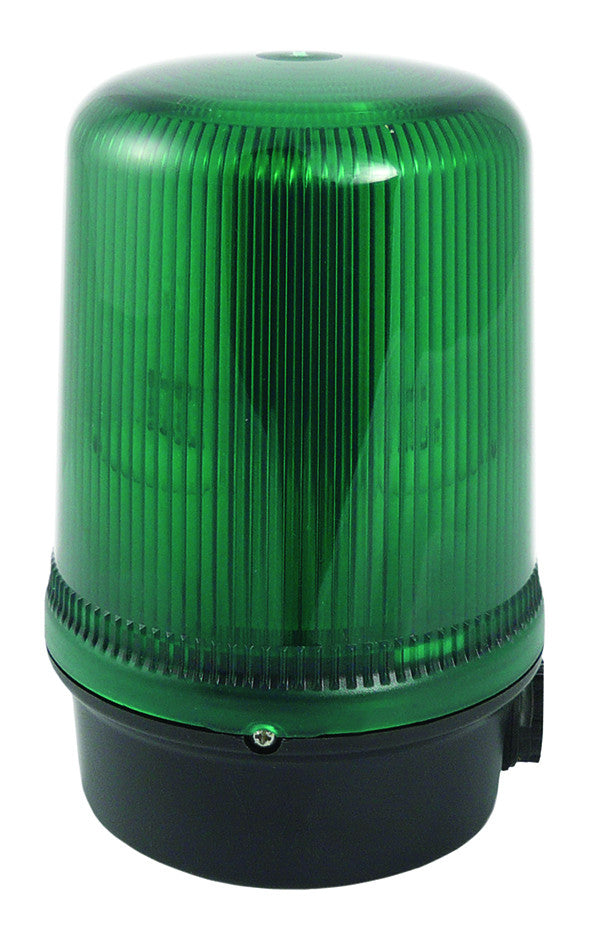

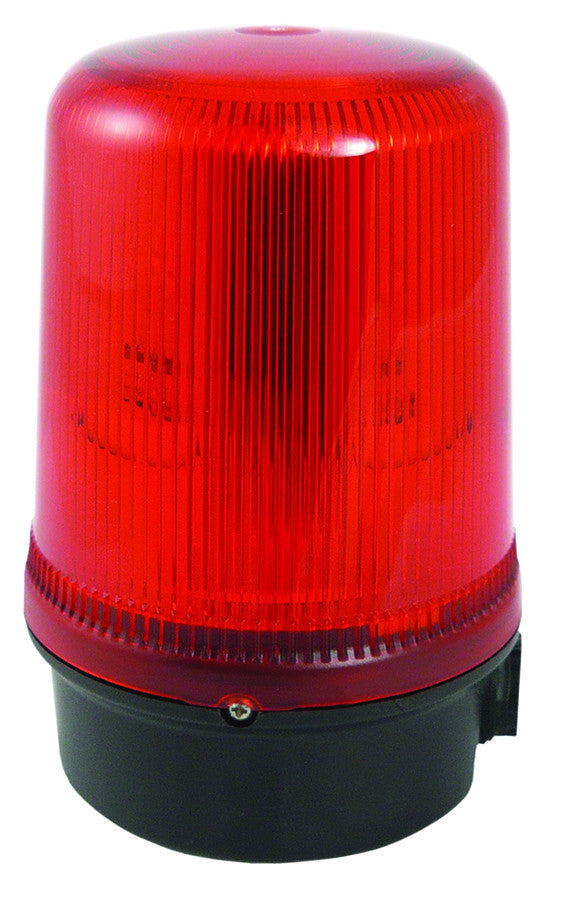

    The B300LDA LED Beacon with Multi Function Array

    The surface mount base can also be supplied with a right angle bracket or with a pole mounted assembly.

    Features

    • LED multi function beacon - 4 Rotating configurations, 4 Flashing configurations and a Steady Mode
    • 2 Stage alarm, remotely selectable (10-50VDC model only)
    • IP65
    • Anti-tamper locking screw.
    • Stainless steel fixings
    • Approval: GOST-R certificate: POCC GB.JB05.H00144.

    Specifications

    Light intensity: 19cd

    Protection: IP65

    Duty: continuous

    Temp rating (°C): -25 to +50°C

    Cable entry: M20 Side Entry

    Construction: Polycarbonate base and lens

    Weight: 370g

    Current Consumption: 130mA @ 24VDC, 90-50mA @ 90-240VAC

    For more information, please click here

    Flash Patterns
