E2S B300STR 5J Xenon Beacon

E2S

Voltage
Colour
Amber
Blue
Clear
Green
Red

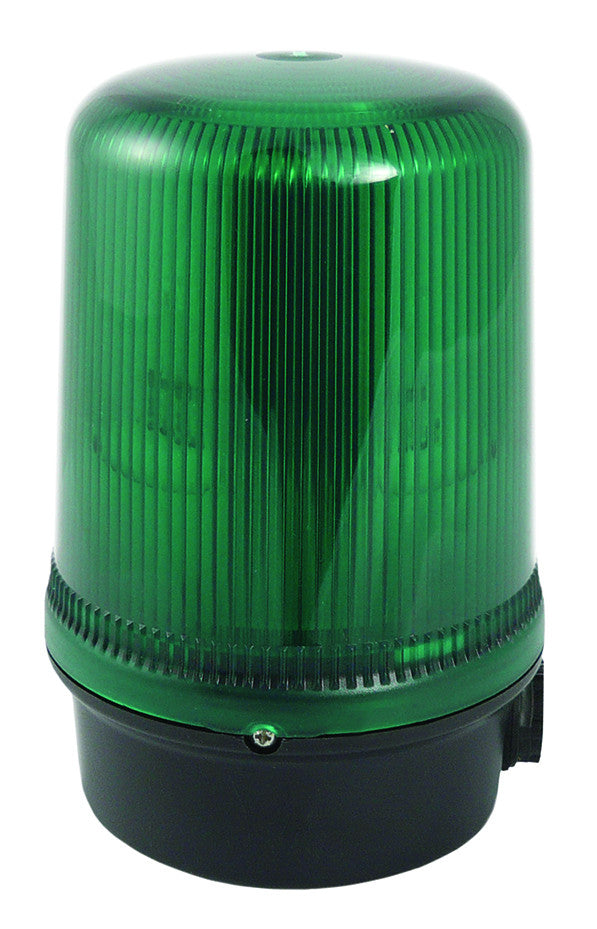

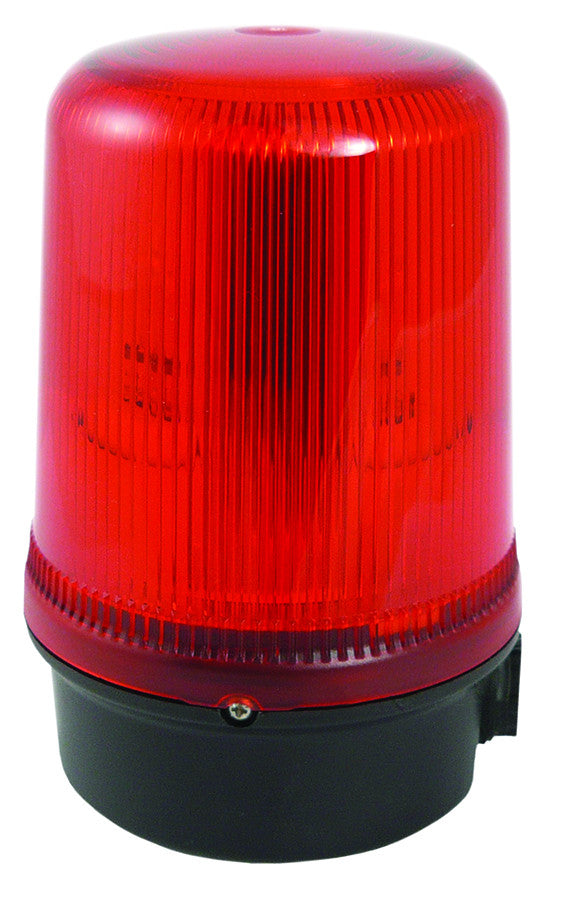

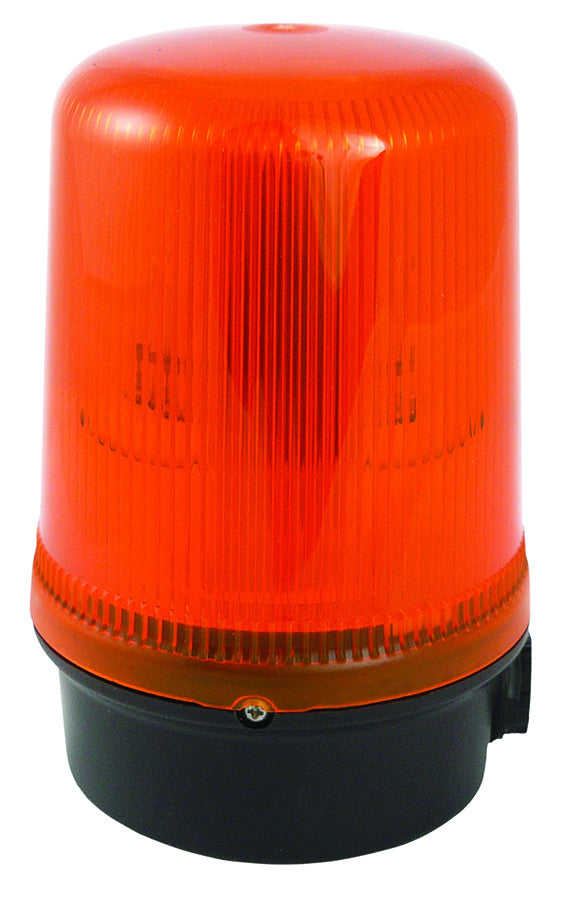

    The B300STR 5J Xenon Permanent Beacon

    The B300STR Xenon beacon features an automatically synchronised flash rate of 1Hz (60 flashes per minute) as standard. The DC voltage versions also have user selectable 1.5Hz (90 flashes per minute) and double-strike flash rates. The double strike flash rate can be remotely activated via a third wire enabling a visual communication of a two stage alarm condition.
    The surface mount base can also be supplied with a right angle bracket or with a pole mounted assembly.

    Features

    • 5J Xenon strobe
    • Synchronised 1Hz flash with adjacent beacons connected to the same supply
    • IP65
    • Anti-tamper locking screw.
    • Stainless steel fixings
    • Approval: GOST-R certificate: POCC GB.JB05.H00144.

    Specifications

    Light intensity: 125cd(e)

    Flash Energy: 5J

    Flash Rate: 60fpm (also 90fpm and double strike flash on DC powered versions)

    Protection: IP65

    Duty: Continuous

    Temp rating (°C): -25 to +50°C

    Cable entry: M20 Side Entry

    Construction: Polycarbonate base and lens

    Weight: 370g

    Current Consumption: 600-500mA @ 12VAC/DC, 300-250mA @ 24VAC/DC, 250-175mA @ 48VAC/DC, 70mA @ 115VAC, 35mA @ 230VAC

    For more information, please click here
