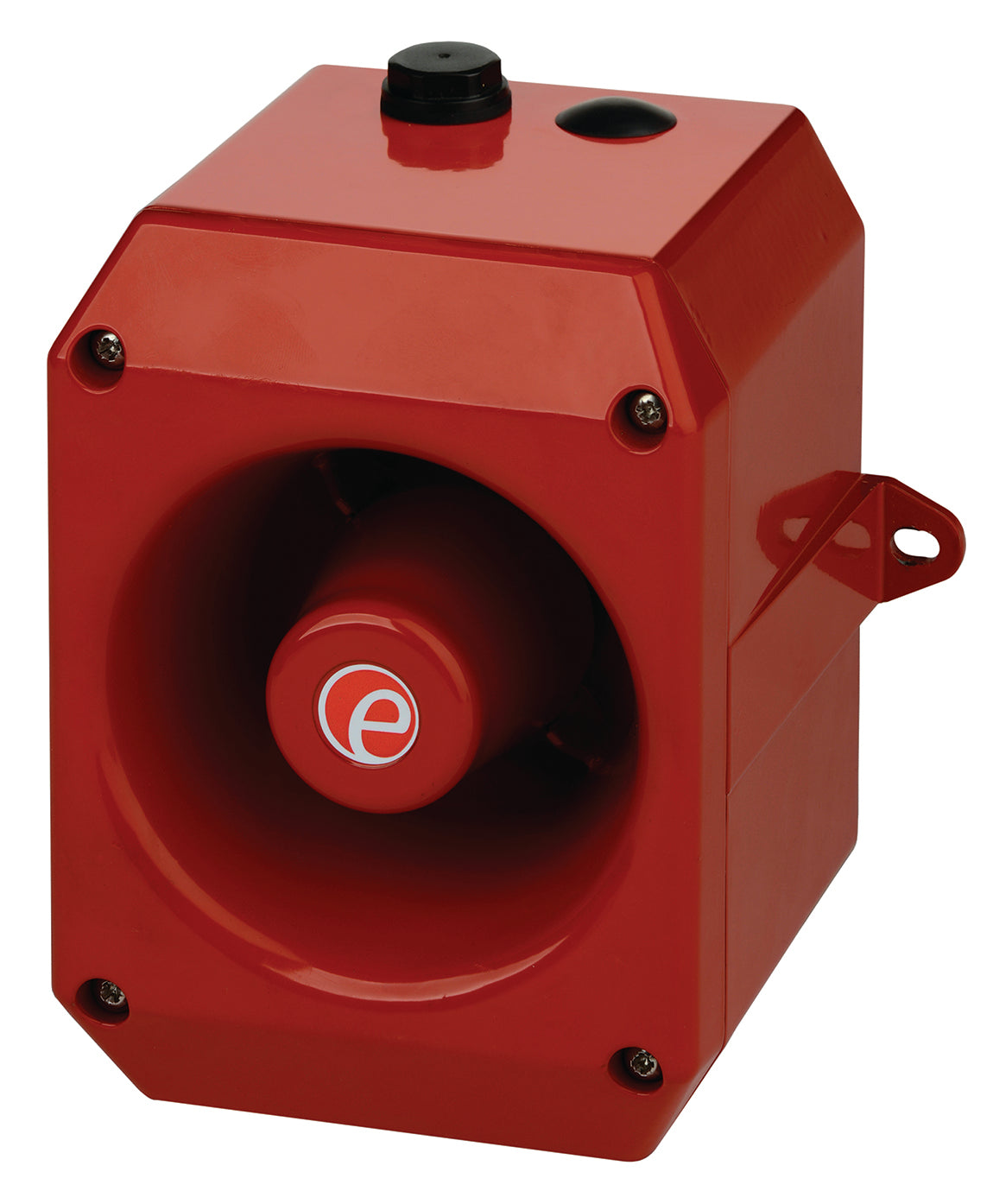

E2S D105 Robust IP66 Metal Sounder

E2S

Voltage

The D105 is a high output, 112dB(A) alarm sounder. Low current consumption and high SPL in a robust IP66 housing ensure the D105 is suitable for all general signalling applications including fire, security and process control.

The corrosion proof, marine grade aluminium die cast enclosure is phosphated and powder coated providing resilience in the harshest of industrial environments.

  • Heavy duty marine grade aluminium housing
  • Electronic sounder
  • 32 tones, includes ISO tones to Australian Standards
  • Automatic synchronisation on multi-sounder systems**
  • Volume control
  • Three stage alarm (reverse polarity stage switching on DC units)
  • IP66

Specifications

Maximum sound output: 112dB @ 1m

Nominal sound output: 105dB @ 1m (105dB max. - 65dB min. on tone 2 with volume control)

Sounder Frequency: 3 stages - 32 tones

Protection: IP66

Temp Rating (°C): -25 to +55

Cable Entry: 2 x M20 x 1.5mm threaded cable entries

Rating: Continuous

Construction: Marine grade aluminium A1 Si12 Cu

Current Rating: 10-30VDC - 25mA @ 24VDC, 24VAC±10% - 40mA, 35-60VDC - 50mA @ 48VDC, 115VAC ±10% - 20mA, 240VAC ±10% - 15mA
