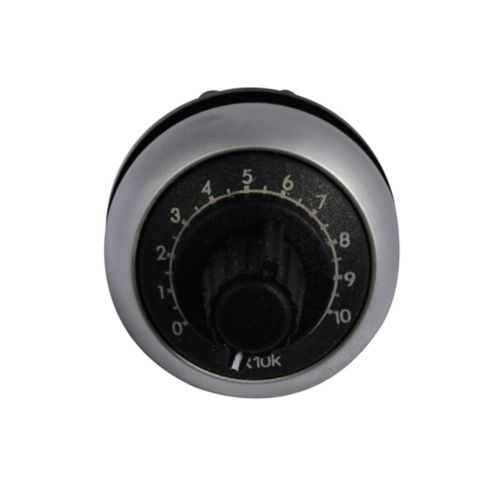

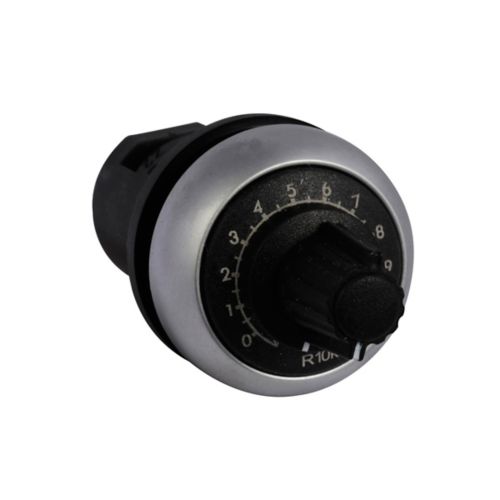

Eaton M22-R10K M22 Potentiometer, 10kΩ, 0.5W, 22.5mm, Titanium Bezel, IP66
Regular price
$98.70
Sale price
$98.70
Regular price
Unit price
per
Tax included.
M22-R10K
1 in stock
Eaton Moeller® series M22 potentiometer, 10 kΩ, 0.5 W, with knob actuator and titanium bezel. Designed for 22.5 mm panel cut-outs, it provides front-panel analogue setpoint adjustment and connects via three individual screw terminals. Rated IP66 at the front of the panel, it suits harsh industrial environments.
| Manufacturer part no. | M22-R10K |
| Eaton catalogue no. | 229491 |
| Series / design | M22, Classical |
| Type | Potentiometer (single turn) |
| Resistance | 10 kΩ, ±10 % (linear) |
| Rated power | 0.5 W |
| Actuator | Knob |
| Bezel | Titanium |
| Mounting hole | 22.5 mm |
| Connection | 3 individual screw terminals, 0.5–1.5 mm² (solid or stranded), 0.5 Nm |
| Rated insulation voltage (Ui) | 250 V |
| Rated impulse withstand voltage (Uimp) | 4000 V |
| Overvoltage category / pollution degree | III / 3 |
| Degree of protection | IP66 |
| Operating temperature | -25 °C to +70 °C |
| Mechanical life | 25,000 operations |
| Shock resistance | 30 g, 11 ms sinusoidal (IEC/EN 60068-2-27) |
| Dimensions (W x H x D) | 29 x 29 x 70 mm |
| Weight | 34 g |
| Used with | Eaton DILET and ETR4-70 series timing relays |
| Standards / approvals | IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14-05, VDE 0660, CE |
