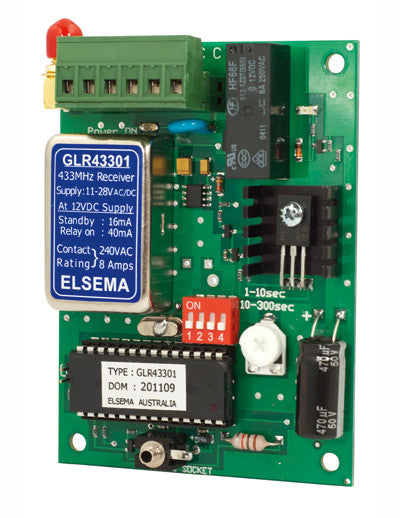

ELSEMA GLR43301, 1 Channel Gigalink™ Series 433MHz Receiver - 11-28VAC/DC in

ELSEMA

Model

This Gigalink™ receiver gives you a relay output that can switch currents up to 8 Amps. There is an on-board relay test switch (4th Dip Switch) and a LED to indicate when the relay is "On". The receiver has a power "On" LED to indicate that the correct supply voltage is connected

The receiver's micro-controller can store unlimited number of transmitters with a high security level using the encrypted 32-bit digital code. Included with the receiver is the Gigalink™ programming cable.

Features

  • Single channel receiver with relay output
  • Over 4 billion code combinations
  • Highly sensitive receiver input stage
  • Crystal controlled for high reliability
  • Can store unlimited number of transmitters
  • Built in test switch to activate relay
  • Optional QM100 bracket available for easy mounting to cases or wall

Specifications

  • Supply Voltage: 11.0 - 28 VAC/DC. Can use Elsema DC or AC power supply, 12PP1000 or 24PP.
  • Current Consumption: 16mA standby
  • User selectable relay output modes
  • Receiving Frequency: 433.920MHz (other frequencies available on request)
  • Sensitivity: Better than 1µV (for relay output to switch on)
  • Relay Output: Change over relay output, rated at 8 Amps / 240VAC
  • Antenna: Elsema ANT 433MHz series
  • Dimensions: 96 x 70 x 20mm
  • Useable Transmitters: All Elsema type GLT433 series



Click Here for User Manuel

Wireless Remote Sold Separately
