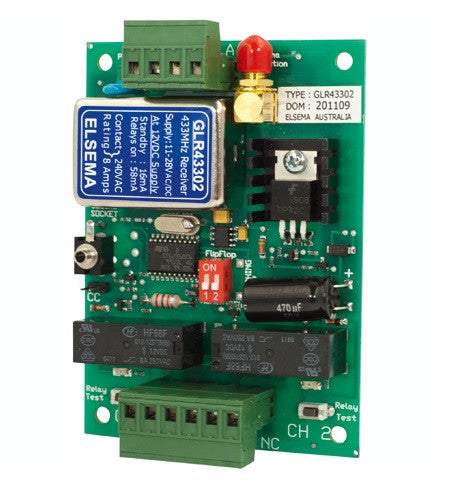

ELSEMA GLR43302, 2 Channel Gigalink™ Series 433MHz Receiver - 11-28VAC/DC in

ELSEMA

This Gigalink™ receiver gives you two relay outputs that can switch currents up to 8 Amps each. There is an on-board switch to test each relay and a LED to indicate when the relay is "On". The receiver has a power "On" LED to indicate that the correct supply voltage is connected.

The receiver's micro-controller can store unlimited number of transmitters with a high security level using the encrypted 32-bit digital code. Included with the receiver is the Gigalink™ programming cable.

Features

  • Two channel receiver with relay outputs
  • Over 4 billion code combinations
  • Supply voltage can be AC or DC
  • Highly sensitive receiver input stage
  • Crystal controlled for high reliability
  • Can store unlimited number of transmitters
  • Momentary, Latching and Security Latching output modes can be selected by the user

Specifications

  • Supply Voltage: 11.0 - 28 VAC/DC. Can use Elsema DC or AC power supply, 12PP1000 or 24PP.
  • Current Consumption: 16mA standby
  • Receiving Frequency: 433.920MHz (other frequencies available on request)
  • Sensitivity: Better than 1µV (for relay output to switch on)
  • Relay Output: Two change over relay outputs, rated at 8 Amps / 240VAC
  • Antenna: Elsema ANT 433MHz series
  • Dimensions: 96 x 70 x 20mm
  • Useable Transmitters: All Elsema type GLT433 series

Click Here for Programming Instructions

Click Here for User Manuel

Wireless Remote Sold Separately
