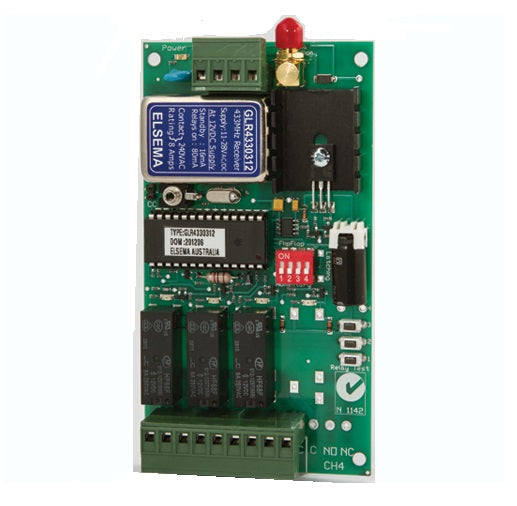

ELSEMA GLR43303, 3 Channel Gigalink™ Series 433MHz Receiver - 11-28VAC/DC in
$156.50
This Gigalink™ receiver gives you two relay outputs that can switch currents up to 8 Amps each. There is an on-board switch to test each relay and a LED to indicate when the relay is "On". The receiver has a power "On" LED to indicate that the correct supply voltage is connected.
The receiver's micro-controller can store unlimited number of transmitters with a high security level using the encrypted 32-bit digital code. Included with the receiver is the Gigalink™ programming cable.
Note: GLR43303 (Channel 3) is being replaced by the GLR43304 (4 Channel)
Features
- Three channel receiver with relay outputs
- Over 4 billion code combinations
- Supply voltage can be AC or DC
- Highly sensitive receiver input stage
- Crystal controlled for high reliability
- Can store unlimited number of transmitters
- Momentary, Latching and Security Latching output modes can be selected by the user
Specifications
- Supply Voltage: 11.0 - 28 VAC/DC. Can use Elsema DC or AC power supply, 12PP1000 or 24PP.
- Current Consumption: 16mA standby
- Receiving Frequency: 433.920MHz (other frequencies available on request)
- Sensitivity: Better than 1µV (for relay output to switch on)
- Relay Output: Two change over relay outputs, rated at 8 Amps / 240VAC
- Antenna: Elsema ANT 433MHz series
- Dimensions: 130 x 70 x 20mm
- Useable Transmitters: All Elsema type GLT433 series
Click Here for Programming Instructions
Click Here for User Manuel
Wireless Remote Sold Separately
