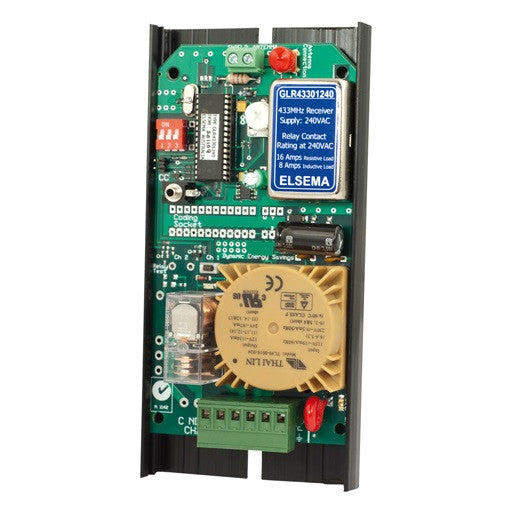

ELSEMA GLR43301240, 1 Channel Gigalink™ Series 433MHz Receiver - 240VAC In and Out


Great for wirelessly activating 240VAC Sirens or any other 240VAC Device

This Gigalink™ receiver can be connected directly to the mains supply, 240VAC. There is an on-board switch to test the relay and a LED to indicate when the relay is "On". The receiver has a power "On" LED to indicate that the correct supply voltage is connected.

The receiver's micro-controller can store unlimited number of transmitters with a high security level using the encrypted 32-bit digital code. Included with the receiver is the Gigalink™ programming cable.


  • Single channel receiver with relay output
  • Over 4 billion code combinations
  • Highly sensitive receiver input stage
  • Crystal controlled for high reliability
  • Can store unlimited number of transmitters
  • E version available with Weatherproof case
  • Built in test switch to activate relay
  • Optional QM100 bracket available for easy mounting to cases or wall


  • Supply Voltage: 240 VAC Mains
  • Current Consumption: 2.2mA standby
  • User selectable relay output modes
  • Receiving Frequency: 433.920MHz (other frequencies available on request)
  • Sensitivity: Better than 1µV (for relay output to switch on)
  • Relay Output: Change over relay output, rated at 8 Amps / 240VAC
  • Antenna: Elsema ANT 433MHz series
  • Dimensions: 130 x 70 x 37mm (circuit board)
  • Useable Transmitters: All Elsema type GLT433 series
  • Ideal for Industrial Automation, eg Crane Control, winches, wireless cement truck operation.

Click Here for User Manuel

Wireless Remote Sold Separately
