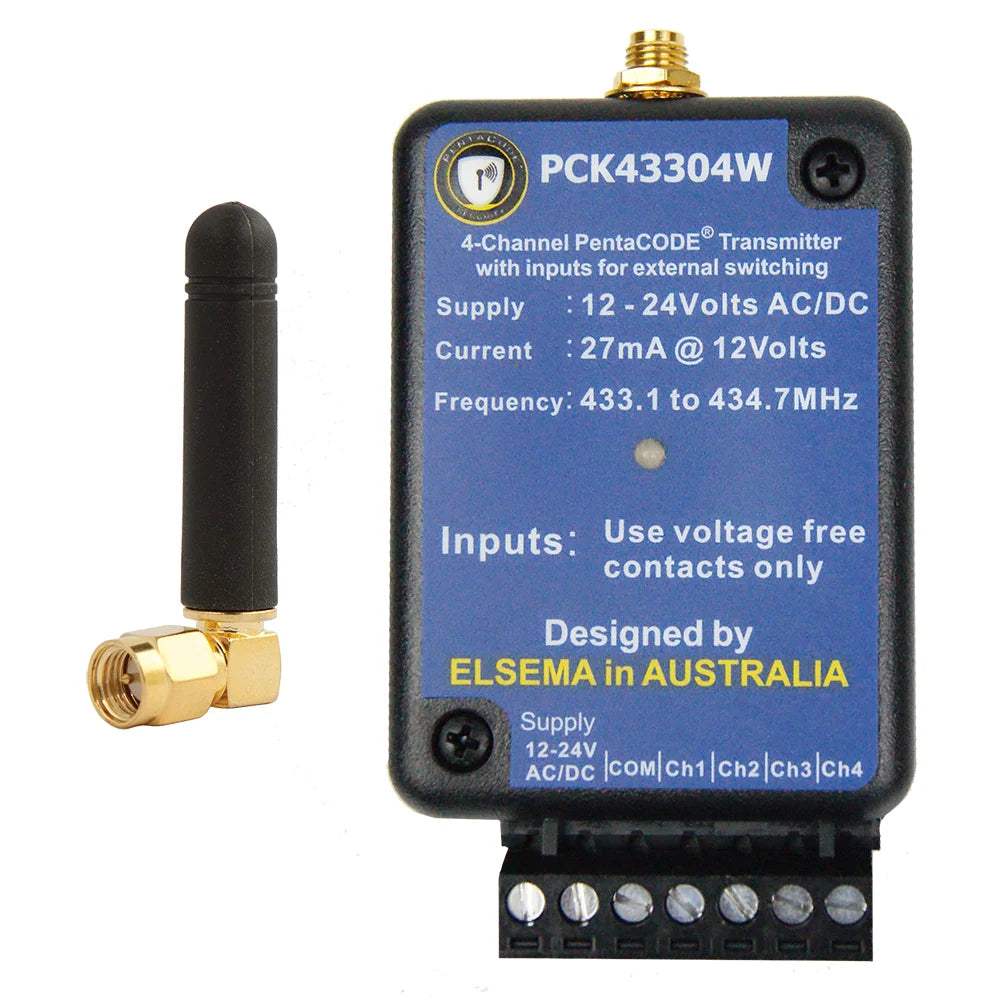

Elsema PCK43304W 4-Channel 433MHz PentaCODE Transmitter with External Inputs

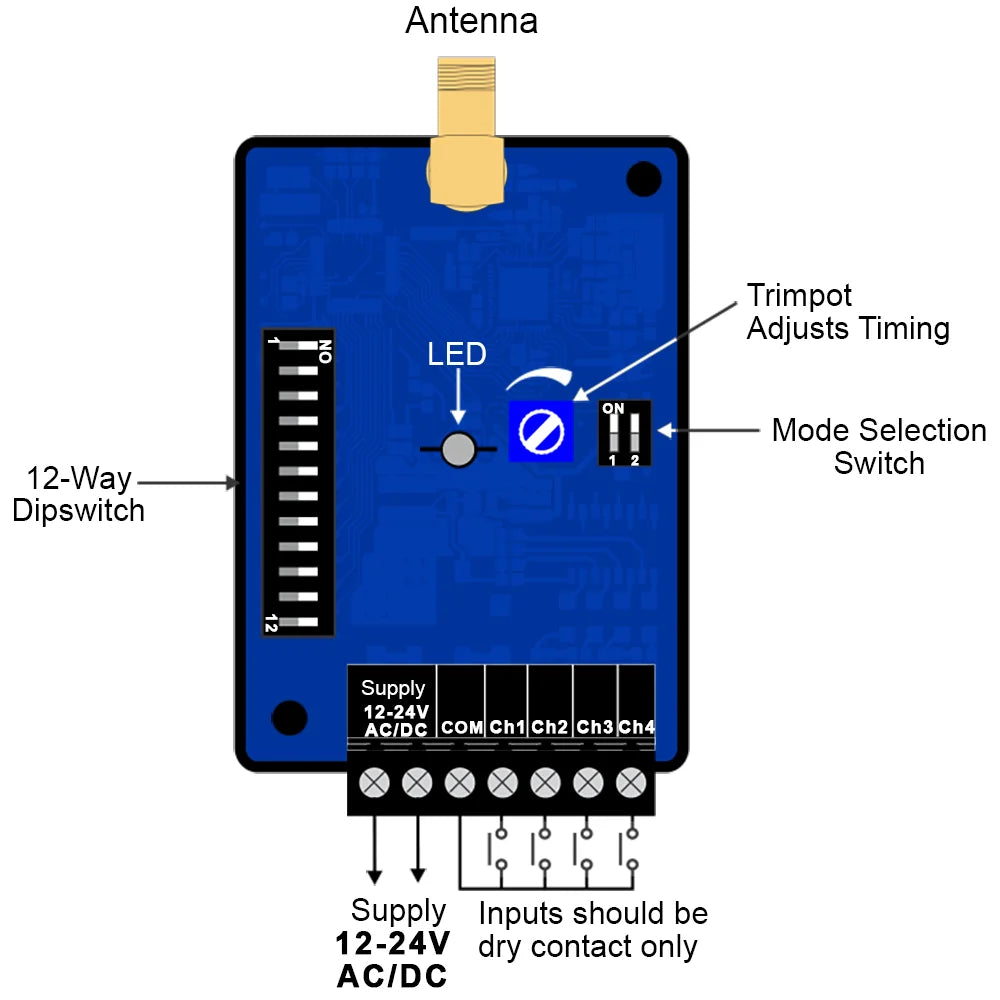

The Elsema PCK43304W is a 4-channel 433MHz PentaCODE® transmitter with hardwired external inputs — a purpose-built bridge between fixed-wired control gear and Elsema's wireless PCR receiver range. Connect a push button, toggle switch, limit switch, relay contact or PLC dry-contact output to one of its four inputs, and the transmitter converts every activation into a secure wireless signal.

It's the right part for sites where running cable to a receiver is difficult, disruptive or expensive — retrofitting an existing control panel with wireless gate triggering, linking an alarm panel's relay output to a remote annunciator, taking a PLC output wirelessly to a motor starter on the other side of a yard, or adding wall-mounted wired buttons to a system that's otherwise driven by key fobs.

Security is handled by Frequency Hopping Spread Spectrum (FHSS) across five 433MHz frequencies, with PentaCODE® dual coding for setup flexibility: classic 12-way DIP switch for quick pairing, or encrypted mode with over 17 billion combinations for high-security installations. Simultaneous transmission is supported, so closing two inputs at once sends both channels together — no missed triggers on multi-button panels.

The PCK43304W runs on 12V AC/DC with a very low 6µA standby current (27 mA when transmitting), which makes battery-powered installations entirely practical. In off-delay mode, a held input triggers short repeating bursts rather than a continuous carrier — keeping the RF channel clear for other devices to operate in the same area. Typical range is up to 500 metres line-of-sight.

Compatible with the full Elsema PCR433 series of receivers (1, 2, 4 and 8 channel; 12–24V AC/DC and 110–240V AC supply options). Custom-labelled versions are available on minimum orders of 100 pieces for OEM and installer branding.

Key features

• 4-channel 433MHz PentaCODE® transmitter with hardwired inputs
• Accepts any voltage-free Normally Open (N/O) contact
• Frequency Hopping Spread Spectrum (FHSS) across five frequencies
• Dual coding: encrypted mode or 12-way DIP switch
• Simultaneous multi-channel transmission
• Up to 500 m line-of-sight operating range
• Very low standby current (6µA) — battery-powered installations viable
• Off-delay burst mode keeps the RF band clear for shared use
• Compatible with all Elsema PCR433 series receivers
• Custom-labelled variants available (MOQ 100 pieces)

Typical applications

• Wireless ON/OFF switching via wall-mounted buttons
• Remote gate triggering where cabling is impractical
• PLC dry-contact outputs taken wirelessly across a site
• Alarm panel relay outputs linked to remote indicators
• Limit-switch signalling from moving machinery
• Industrial automation retrofits
