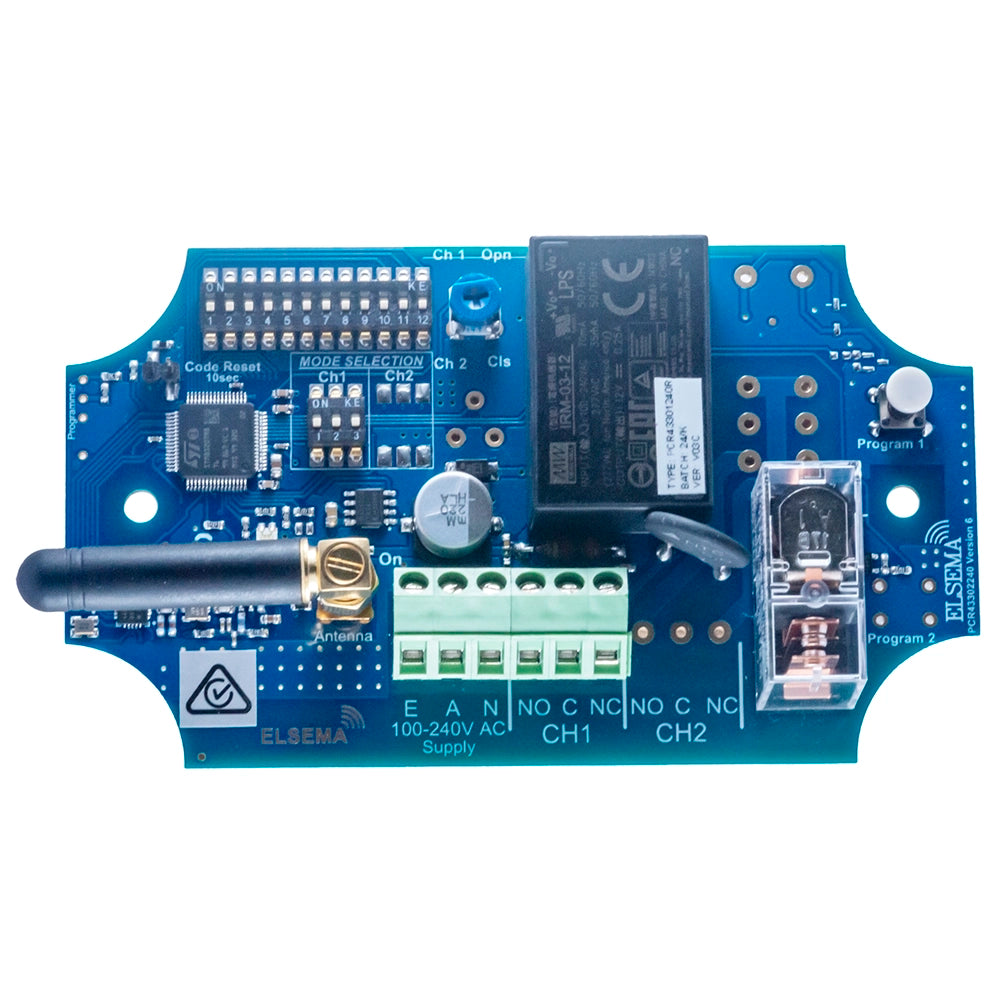

Elsema PCR43301240R 1-Channel 433MHz Penta Series Receiver 110-240V AC

The Elsema PCR43301240R is a mains-powered single-channel 433MHz receiver from the Penta Series, built for installations where a dedicated 12–24V supply isn't practical. A wide 110–240V AC input range makes the same board usable across Australian, European and North American sites, and a voltage-free relay output switches loads cleanly without passing mains through to the controlled device.

Security is handled through Frequency Hopping Spread Spectrum (FHSS) across five 433MHz frequencies combined with PentaCODE® encrypted coding — over 17 billion possible combinations. The receiver also accepts PentaFOB® transmitters on the same board, so mixed-remote sites can standardise on one platform.

Output behaviour is user-selectable across momentary, latching, delayed-off, on-off (button 1 on, button 2 off), security latching and instant-off modes. Unlimited remote storage suits strata, car-park and multi-tenant deployments, and the 8A-at-240V AC relay rating is enough to drive security lighting, pumps, motors or exhaust fans directly.

Key features

• Single-channel 433MHz receiver with voltage-free relay output
• Wide 110–240V AC mains supply — no external power pack required
• Frequency Hopping Spread Spectrum (FHSS) across five frequencies
• PentaCODE® encrypted coding with over 17 billion combinations
• Six output modes including momentary, latching, delayed-off and on-off
• Relay rated 8A at 240V AC
• Unlimited remote storage
• SMA connector for external antenna upgrades

Typical applications

• Automatic gates and boom gates
• Commercial garage and roller doors
• Security and perimeter lighting
• Pump, fan and motor switching
• Solar grid protection
