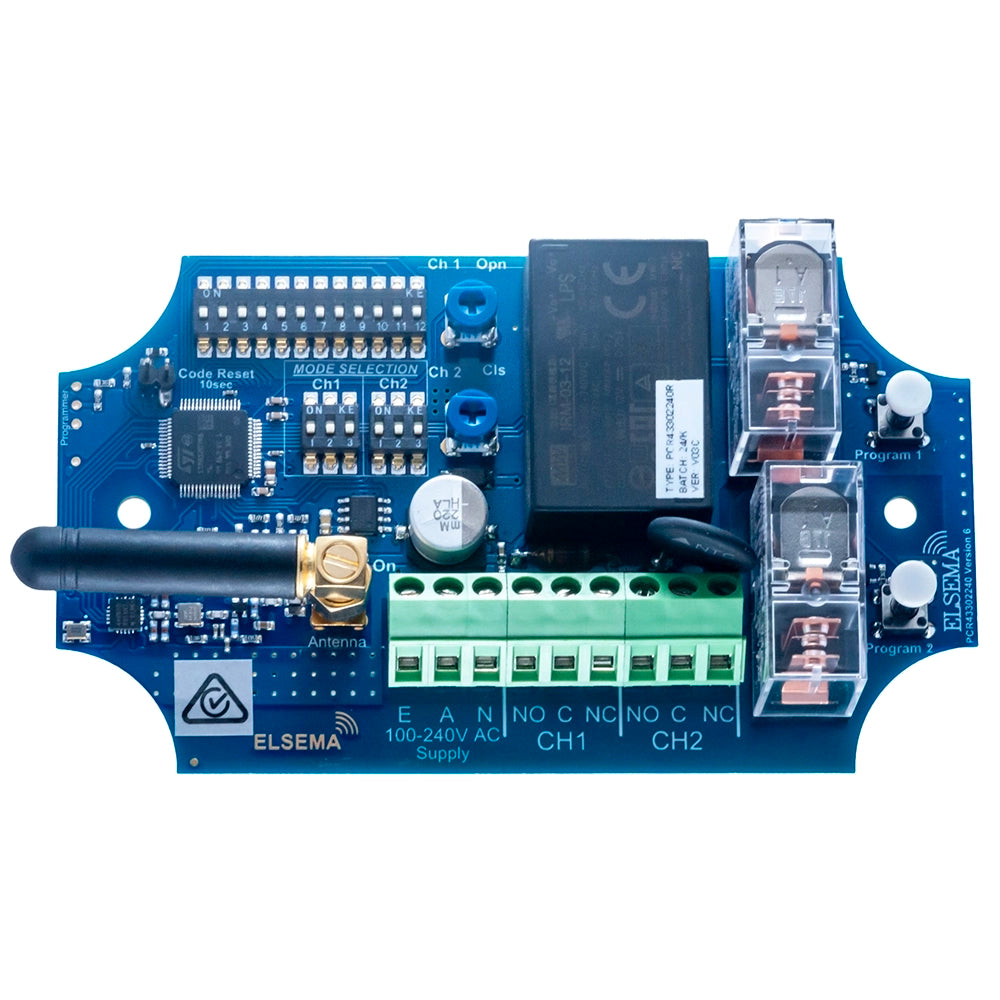

Elsema PCR43302240R 2-Channel 433MHz Penta Series Receiver 110-240V AC

The Elsema PCR43302240R is a mains-powered 2-channel 433MHz receiver from the Penta Series, built for sites where running a dedicated 12–24V supply isn't practical. A wide 110–240V AC input range makes the same board usable across Australian, European and North American installations, and two voltage-free relays let a single receiver drive two independent loads — typical pairings include gate open/close, lighting banks, pump sets, pool equipment or paired roller doors.

Security comes from Frequency Hopping Spread Spectrum (FHSS) across five 433MHz frequencies combined with PentaCODE® encrypted coding — over 17 billion possible combinations. The receiver also accepts PentaFOB® transmitters on the same board, so mixed-remote sites can standardise on one platform.

Output behaviour is configurable per channel: momentary, latching, delayed-off, on-off (button 1 on, button 2 off), security latching and instant-off modes are all user-selectable. Unlimited remote storage suits strata sites, car parks and multi-tenant facilities, and an SMA connector is provided for external antenna upgrades when the receiver sits inside a metal cabinet.

Key features

• Two-channel 433MHz receiver with dual voltage-free relay outputs
• Wide 110–240V AC mains supply — no separate power pack needed
• Frequency Hopping Spread Spectrum (FHSS) across five frequencies
• PentaCODE® encrypted coding with over 17 billion combinations
• Six output modes including momentary, latching, delayed-off and on-off
• Each relay rated 8A at 240V AC
• Unlimited remote storage
• SMA connector for external antenna
• Compact 120 × 70 × 30 mm PCB

Typical applications

• Automatic gates and boom gates
• Commercial garage and roller doors
• Security and perimeter lighting
• Strata and multi-tenant access
• Solar grid protection setups
• Pump, fan and motor switching
