Elsema PCR43302240RE 2-Channel 433MHz Penta Series Receiver 110-240V AC (IP-Rated Enclosure)

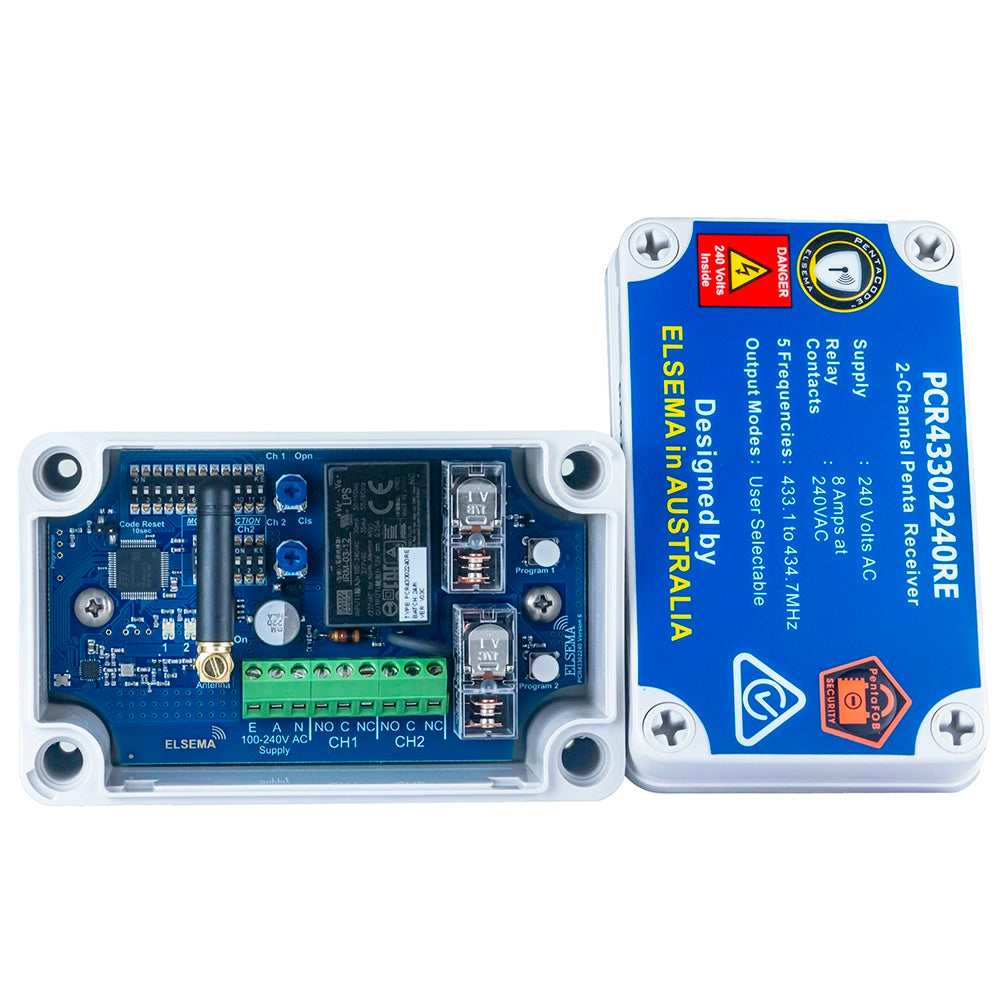

The Elsema PCR43302240RE is the enclosed version of the PCR43302240R mains-powered 2-channel Penta Series receiver, pre-fitted in a rugged IP-rated case for outdoor and wash-down installations. Same 110–240V AC mains supply, same dual 8A-at-240V AC relays, same FHSS frequency hopping and PentaCODE® encrypted coding as the open-board model — ready to install without a second enclosure purchase.

Each channel can be independently configured across momentary, latching, delayed-off, on-off (button 1 on, button 2 off), security-latching and instant-off modes, giving one receiver the flexibility to drive almost any pair of loads. Unlimited remote storage and an SMA external-antenna connector round out the feature set for larger sites and challenging RF environments.

Key features

• Two-channel mains-powered Penta Series receiver in IP-rated enclosure
• Wide 110–240V AC supply — global mains compatibility
• Dual voltage-free relays, each rated 8A at 240V AC
• Frequency Hopping Spread Spectrum (FHSS) across five frequencies
• PentaCODE® encrypted coding with over 17 billion combinations
• Six output modes per channel
• SMA connector for external antenna
• Unlimited remote storage

Typical applications

• External gates, boom gates and perimeter access
• Car park barriers and strata entries
• Outdoor roller shutter pairs
• Pool, spa and pump room enclosures
• Wash-down and food-and-beverage environments
