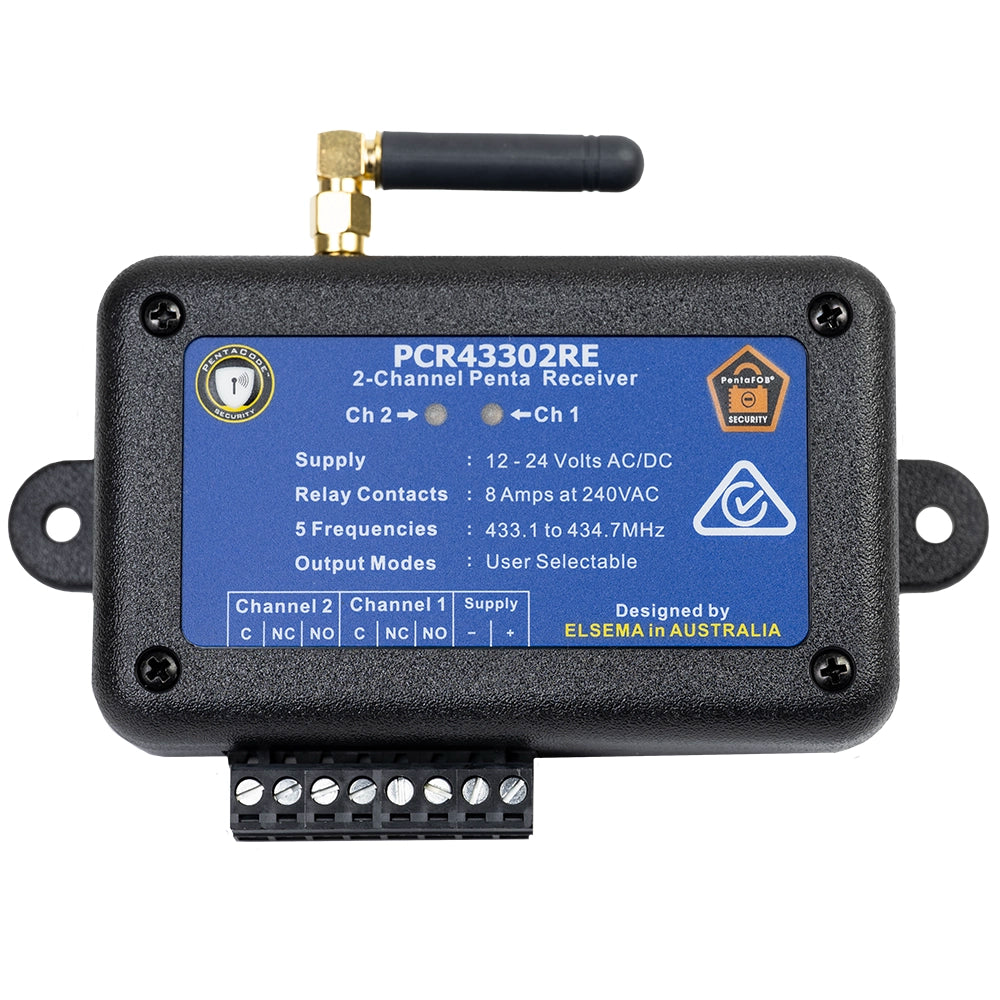

Elsema PCR43302RE 2-Channel 433MHz Penta Series Receiver with Dual Relays (Enclosed)

The Elsema PCR43302RE is the enclosed version of the PCR43302R 2-channel Penta Series receiver, pre-fitted in a compact weatherproof case and ready to mount directly. Same dual voltage-free relay outputs, same FHSS security and same PentaCODE® dual-coding flexibility as the open-board model — with no separate enclosure needed.

Powered from 12–24V AC/DC, the PCR43302RE switches two independent loads up to 10A at 240V AC per relay, with each channel independently configurable across momentary, latching, delayed-off, on-off, roller-shutter and security-latching modes. Ideal for installations where the receiver needs to sit outside a main control cabinet — external gate motors, pool equipment enclosures, pump sheds and boundary access points.

Key features

• Two-channel Penta Series receiver in weatherproof enclosure
• Dual voltage-free relay outputs, each rated 10A at 240V AC
• Frequency Hopping Spread Spectrum (FHSS) across five frequencies
• Dual coding: encrypted mode or 12-way DIP switch
• Six output modes per channel including roller-shutter and security latching
• Unlimited remote storage
• Compatible with PentaFOB® and PentaCODE® transmitters

Typical applications

• External dual-leaf gate installations
• Outdoor roller shutters
• Pool, spa and pump enclosures
• Boundary access points away from a main cabinet
• Farm and rural automation
