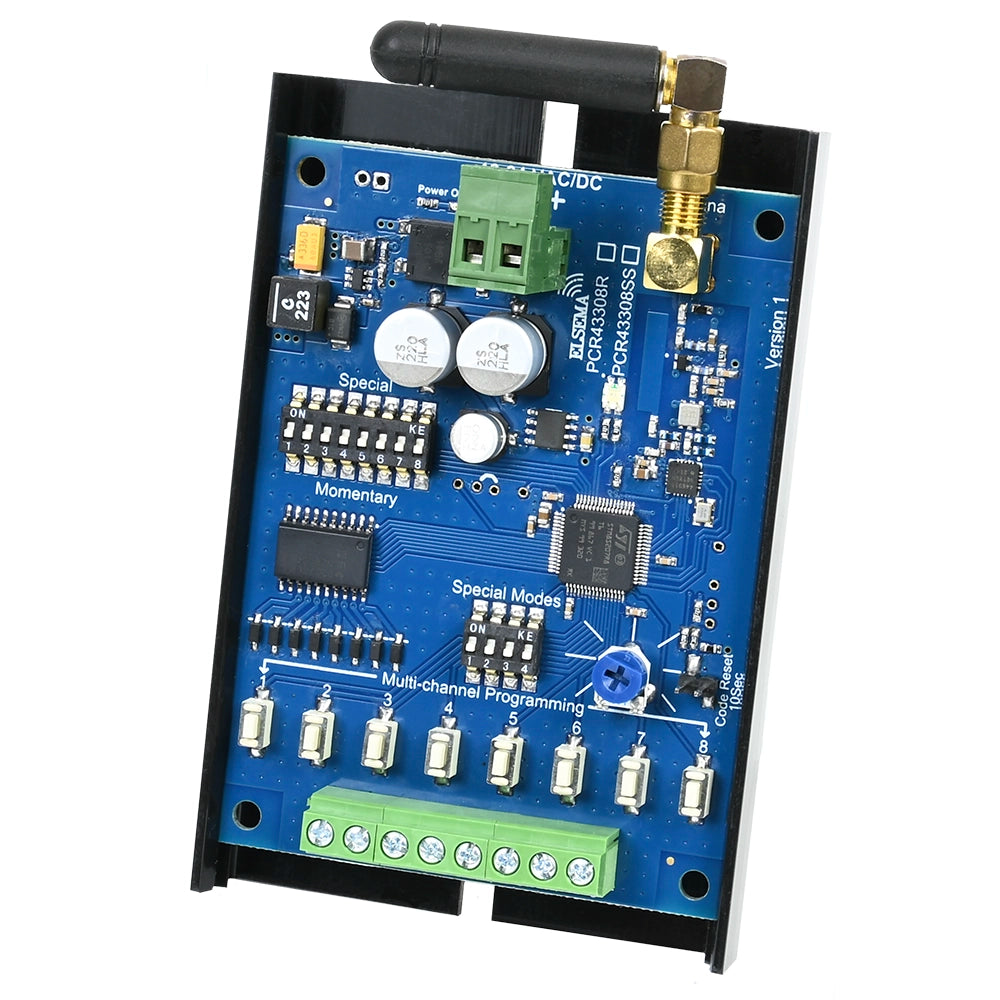

Elsema PCR43308SS 8-Channel 433MHz Penta Series Receiver with 8 Open-Collector Outputs

The Elsema PCR43308SS is the open-collector (solid-state) version of the 8-channel Penta Series receiver, built for applications where direct low-current switching into PLC inputs, microcontrollers, logic boards and control panels is more appropriate than mechanical relays. Eight independent open-collector outputs deliver fast, silent, long-life switching with no contact wear — a natural fit for high-cycle automation and industrial control panels.

Output behaviour is the same rich feature set as the relay-output PCR43308R: momentary, latching, security latching, delayed-on (1–10 s), delayed-off (1–300 s), single-output-latched interlock, timed latching and on-off modes, all configurable per channel through onboard DIP switches. Multi-channel and single-channel programming let one remote button drive multiple outputs or bind one-to-one.

Frequency Hopping Spread Spectrum (FHSS) across five 433MHz frequencies ensures reliable operation in noisy RF environments, and unlimited remote storage makes the PCR43308SS suitable for fleets, sites and multi-user installations.

Key features

• Eight-channel 433MHz receiver with 8 open-collector outputs
• Solid-state switching — fast, silent, no contact wear
• Frequency Hopping Spread Spectrum (FHSS) across five frequencies
• Eight configurable output modes including interlock and timed behaviours
• Multi-channel and single-channel programming
• Unlimited remote storage
• Compatible with PentaFOB® and PentaCODE® transmitters
• Compact PCB for direct panel integration

Typical applications

• PLC and microcontroller input triggering
• High-cycle industrial automation
• OEM control panel integration
• Machine HMI and remote operator stations
• Logic board and access controller front-ends
