Elsema PentaCODE Keyring Remote (PCK43302 / PCK43304) — 433MHz, 2 or 4 Button

The Elsema PentaCODE® Keyring Remote is an Australian-designed 433MHz key fob transmitter built for everyday access control — gates, garage doors, roller doors, lighting and home automation. Choose between the 2-button PCK43302 for single-device installs, or the 4-button PCK43304 when one remote needs to drive multiple outputs from the same keyring.

Both variants share the same Penta® platform: Frequency Hopping Spread Spectrum (FHSS) across five 433MHz frequencies for strong interference and jamming resistance, combined with PentaCODE® dual coding. Installers can set the classic 12-way DIP switch for quick pairing on legacy sites, or switch to encrypted mode for over 17 billion unique combinations on security-critical installations.

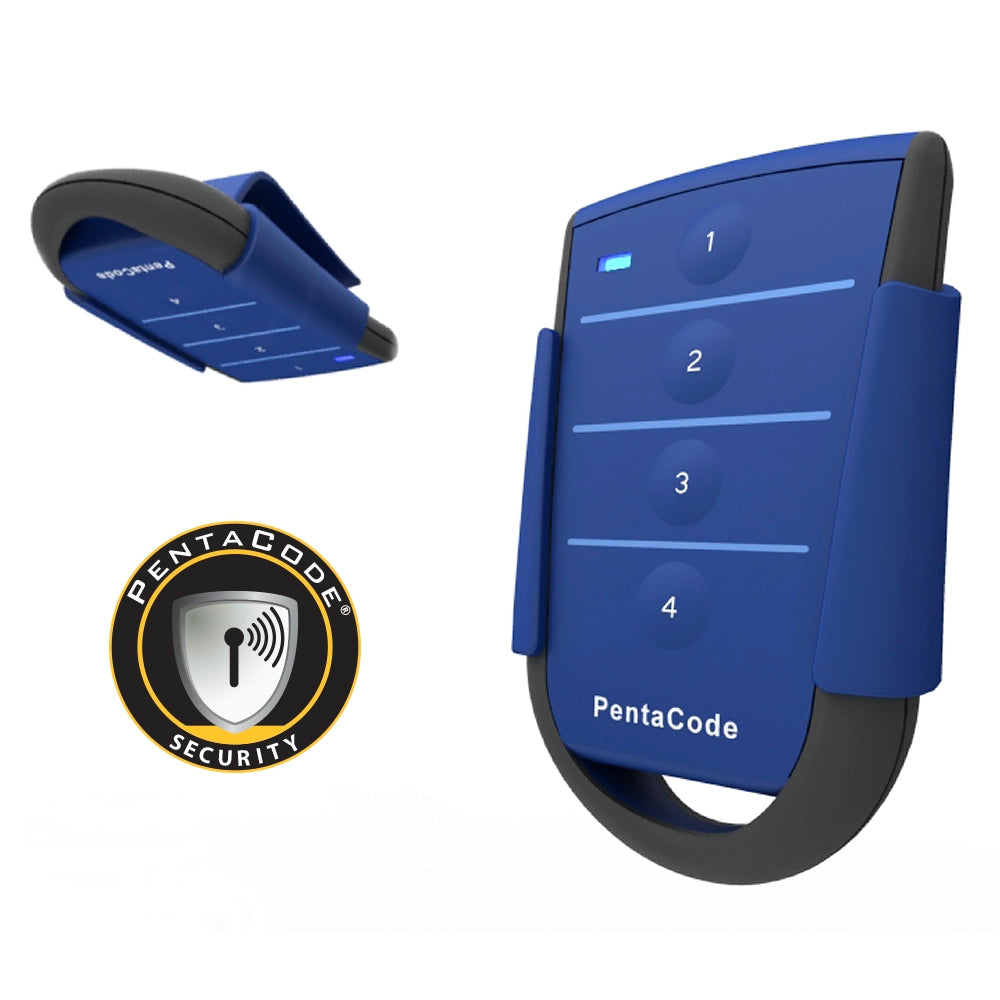

A durable housing, integrated keyring clip, and optional accessories (sun-visor bracket, wall-mount bracket, lanyard on request) make these remotes hard-wearing day to day. A single 12V A23 battery delivers roughly 18 months of typical use, and typical line-of-sight operating range is up to 200 metres.

PentaCODE® remotes work with the full Elsema PCR433 receiver range — 1, 2, 4, 5 and 8-channel receivers, both 12–24V AC/DC and 110–240V AC supply versions, in open-board and IP-rated enclosed formats. They also comply with AS/NZS 4268, CE and FCC standards, so sites with exported equipment or international tenants have nothing extra to specify.

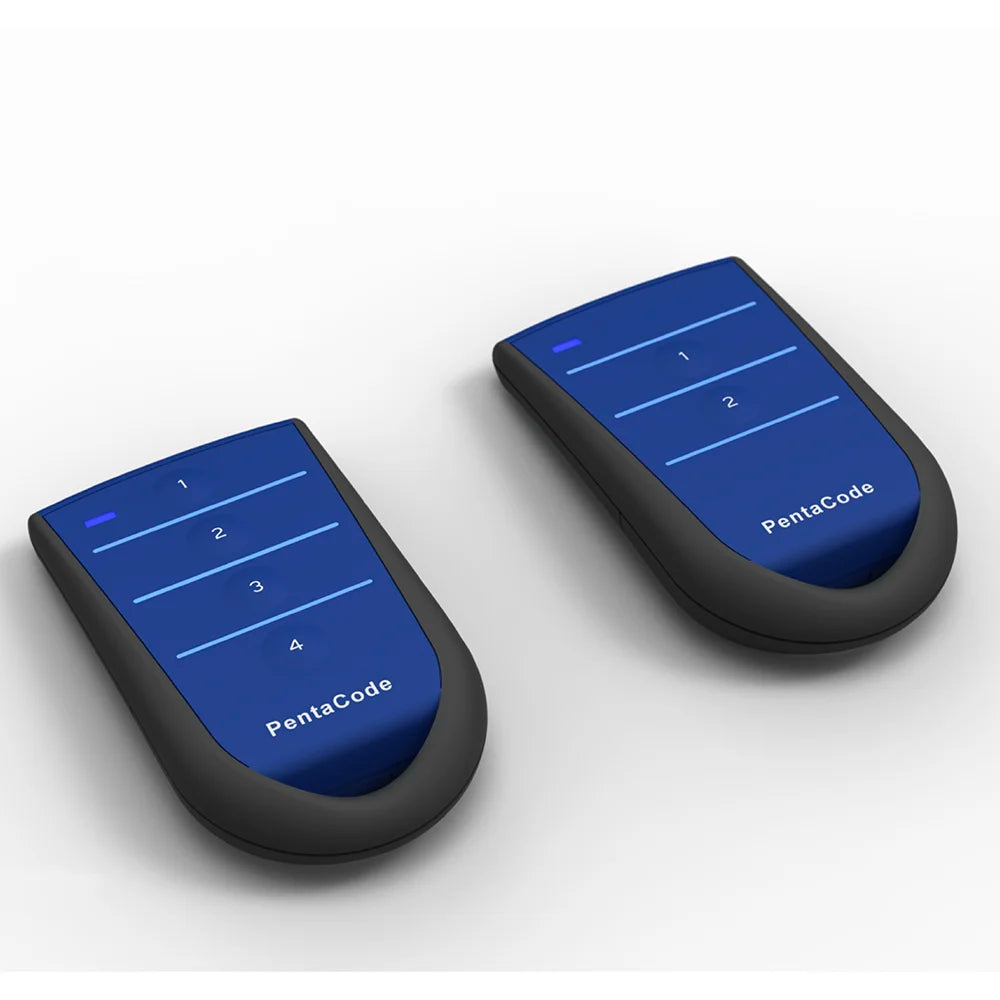

Variants

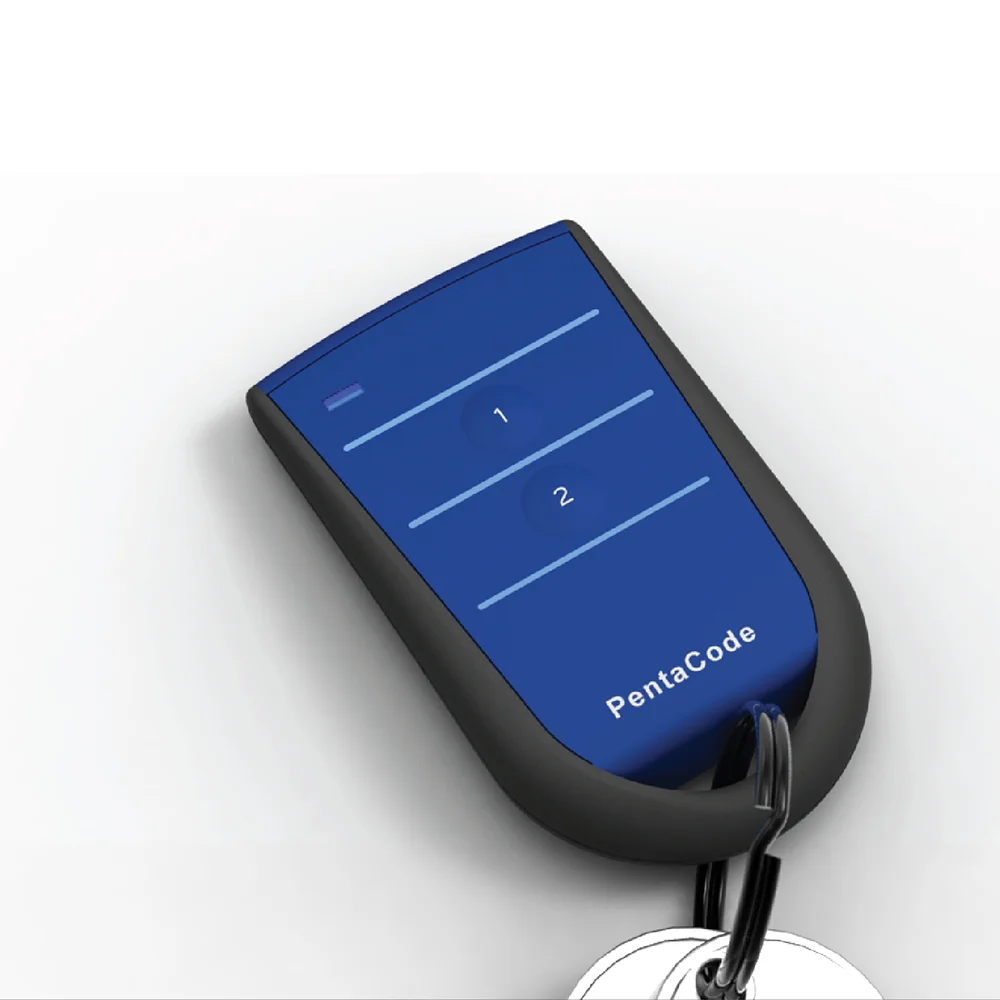

• PCK43302 — 2-button PentaCODE® keyring remote
• PCK43304 — 4-button PentaCODE® keyring remote

Key features

• 433MHz Penta Series key fob transmitter
• Choice of 2 or 4 buttons from one product page
• Frequency Hopping Spread Spectrum (FHSS) across five frequencies

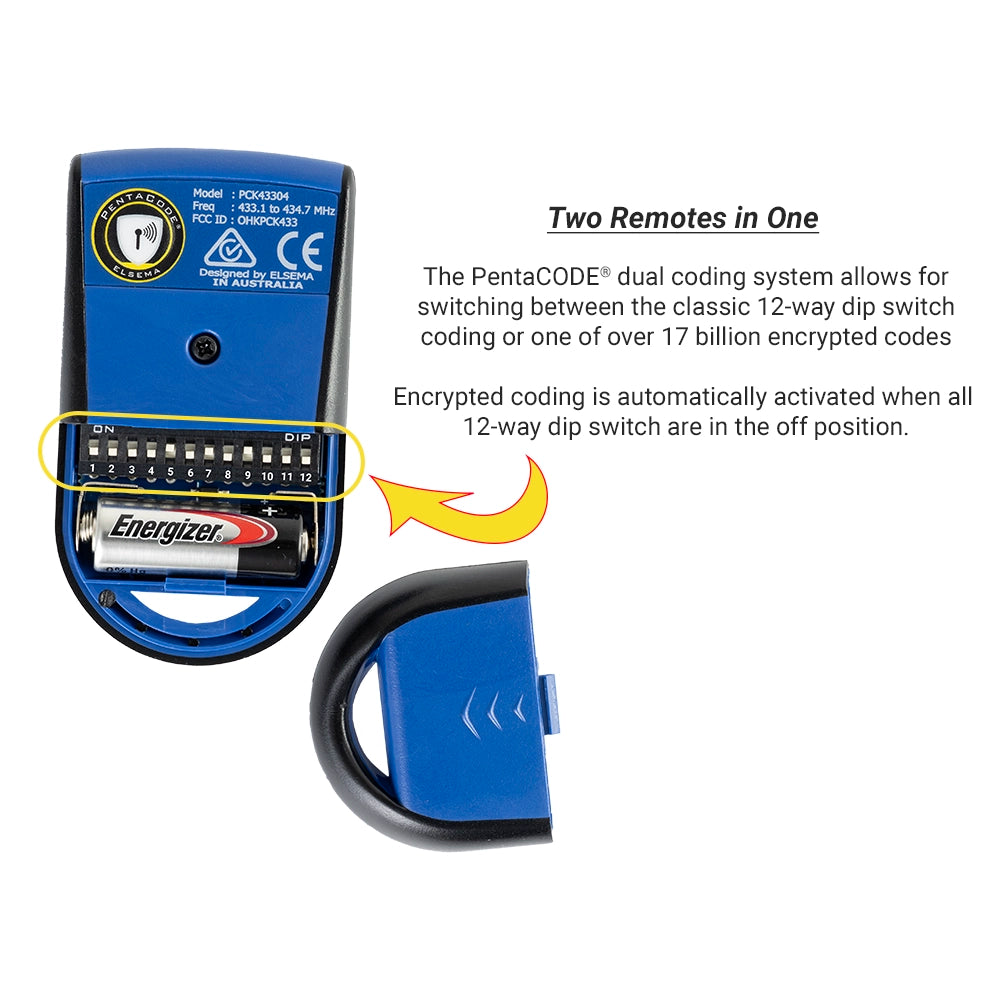

• PentaCODE® dual coding: encrypted mode or 12-way DIP switch
• Over 17 billion encrypted code combinations
• Up to 200 m line-of-sight operating range
• Compatible with the full Elsema PCR433 receiver range
• Durable housing with integrated keyring clip
• 12V A23 battery — typical 1.5-year life
• AS/NZS 4268, CE and FCC compliant
• Custom-labelled designs available (MOQ 100 pcs)

Typical applications

• Residential and commercial automatic gates
• Garage doors and roller doors
• Home and office lighting control
• Boom gates, strata and estate access
• Farm and rural gate operation
• General wireless switching and automation
