Please see PDF for full range, selection guide, measurements for all FLEXICON Conduit products. Gives us a call on 03 9314 7877 for quotes.

Summary of Flexicon Conduit:

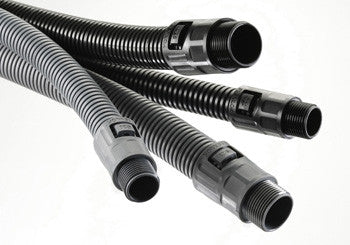

Non-Metallic Conduit Range

FPAS System

FPAS.jpg picture by Dambros_2005

Nylon LFH PA6 corrugated, std weight

Construction
Standard weight, flame retardant nylon (PA6) corrugated flexible conduit. Colour black or grey (RAL 7031). Orange available on request.
Typical Applications
All types of machinery, public buildings.

  • Highly flexible and high fatigue life
  • High impact strength and recovers if crushed
  • Temperature range -40°C to +120°C (-20°C to + 100°C for moving applications)
  • Lloyd's Register Type Approval
  • UL listed / UL recognised
  • Low fire hazard (LFH)
  • UL94 V2 flame retardancy
  • Halogen, sulphur and phosphorus free
  • UV resistant (black)
  • Abrasion resistant
  • Highly resistant to solvents and oils

FPAH System

FPAHh.jpg picture by Dambros_2005

Nylon LFH PA6 corrugated, heavy weight

Construction
Heavy weight, flame retardant, nylon (PA6) corrugated flexible conduit. Colour black.
Typical Applications
All types of machinery and public buildings where high mechanical strength required.

  • High mechanical strength
  • High impact resistance
  • Temperature range -40°C to +120°C
  • UL recognized
  • Low Fire Hazard (LFH)
  • UL 94 V2 flame retardancy
  • Halogen, sulphur and phosphorus free
  • UV resistant
  • Abrasion resistant
  • Highly resistant to solvents and oils



FPR System

FPR.jpg picture by Dambros_2005

Nylon extra LFH PA6 corrugated, std weight

Construction
Standard weight nylon (highly flame retardant PA6) corrugated flexible conduit. Colour black.
Typical Applications
Railways, underground and public buildings.

  • Highly flexible and high fatigue life
  • High impact strength and recovers if crushed
  • Temperature range -40°C to +120°C (-20°C to +100°C for moving applications)
  • UL recognized
  • Lloyd's Register Type Approval
  • Extra Low Fire Hazard (LFH)
  • UL 94 V0 flame retardancy
  • Halogen, sulphur and phosphorus free
  • UV resistant
  • Abrasion resistant
  • Highly resistant to solvents and oils



FPADS System

FPADS.jpg picture by Dambros_2005

Nylon PA6 double slit corrugated

Construction
Double slit nylon (PA6) corrugated conduit. Colour black.
Typical Applications
Retrofit.

  • Make from 2 interlocking slit corrugated conduits
  • Temperature range -40°C to +110°C
  • Cables can be inserted laterally
  • Provides abrasion resistance and routing of cables for static applications
  • Self extinguishing
  • UL94V2
  • Halogen, sulphur and phosphorus free

FU System

FU.jpg picture by Dambros_2005

Galvanised Steel

Construction
Galvanised steel, helically wound, flexible conduit. Colour zinc, self colour.
Typical Applications
Underfloor wiring in office blocks.

  • High mechanical strength
  • Highly flexible
  • Temperature Range: -100°C to +300°C
  • IP rating: IP40 with standard fittings
  • Inherent Low Fire Hazard Product

FSU System

FSU.jpg picture by Dambros_2005

Galvanised steel PVC coated

Construction
Galvanised steel, helically wound, flexible steel conduit with pvc coating. Colour black. Grey or orange on request
Typical Applications
General factory wiring and connections to machines.

  • High mechanical strength
  • Highly flexible
  • IP rating: IP54 with standard fittings
  • IP65 with type C compression fittings
  • Temperature range: -15°C to +70°C
  • Low Fire Hazard version available (see type LFHU on page 22)
  • Nickel plated brass fittings



FNU System

FNU.jpg picture by Dambros_2005

Galvanised steel Nylon coated

Construction
Galvanised steel, helically wound, flexible steel conduit with elastomeric nylon coating. Colour black.
Typical Applications
Demanding applications requiring higher temperatures or solvent and abrasion resistance.

  • High mechanical strength
  • Highly flexible
  • IP rating: IP54 with standard fittings
  • IP65 with type C compression fittings
  • Temperature range: -40°C to +120°C
  • FNU offers high abrasion resistance and solvent resistance
  • Low Fire Hazard version available (see type LFHU on page 22)
  • Nickel plated brass fittings

LTP System

LTP.jpg picture by Dambros_2005

Galvanised steel PVC coated Liquid Tight

Construction
Galvanised steel, helically wound, flexible conduit with smooth oil resistant and high temperature pvc cover. Colour black. Grey or orange on request.*
Typical Applications
Machine tools or outdoor installations where liquid tight is a requirement.

  • High mechanical strength
  • Good flexibility
  • IP rating: IP66 + IP67+ IP68 (5 bar)
  • Smooth
  • wipe clean outer cover
  • Cover does not wrinkle when bent
  • Temperature range: LTP -20°C to +105°C
  • LTP has LloydÕs Register Type Approval
  • Resistant to oils and greases
  • UV resistant (black) and suitable for external use
  • Nickel plated brass or stainless steel fittings as shown on page 26

LTPSS System

LTP.jpg picture by Dambros_2005

Stainless Steel PVC coated Liquid Type

Construction
Stainless steel (316), helically wound, flexible conduit with oil resistant and high temperature pvc smooth cover. Colour black.
Typical Applications
Food processing machinery or outdoor applications where high corrosion resistance and liquid tight are a requirement.

  • High mechanical strength
  • Good flexibility
  • IP rating: IP66 + IP67+ IP68 (5 bar)
  • Smooth
  • wipe clean outer cover
  • Cover does not wrinkle when bent
  • Temperature range: -20°C to +105°C
  • Resistant to oils and greases
  • UV resistant and suitable for external use
  • Stainless Steel (316) inner core

LTPBRD System

LTPBRD.jpg picture by Dambros_2005

galvanised steel core, thermoplastic rubber coated and stainless steel overbraid

Construction
Galvanised steel, helically wound, flexible conduit with thermoplastic rubber cover and stainless steel (316) overbraid.
Typical Applications
Very arduous industrial environments such as steel works.

  • High mechanical strength
  • Good flexibility
  • IP rating: IP66 + IP67 + IP68 (5 bar)
  • Temperature range -45°C to +135°C
  • High abrasion resistance
  • Very high tensile strength

FSB System

FSB.jpg picture by Dambros_2005

galvanised steel core, PVC coated, galvanised steel overbraid

Construction
Galvanised steel, helically wound, flexible conduit with pvc coating and galvanised steel overbraid. Colour zinc, self colour.
Typical Applications
Industrial environments where higher abrasion resistance or screening are required.

  • High mechanical strength
  • Tensile strength with standard fittings 120kg for 20mm size
  • Tensile strength with C type fittings 300kg for 20mm size
  • Highly flexible
  • IP rating: IP54 for standard fittings
  • IP65 for C type fittings
  • High abrasion resistance Resists hot metal swarf and splashes
  • Provides EMC screening
  • Temperature range: FSB -15°C to +70°C
  • Nickel plated brass fittings
