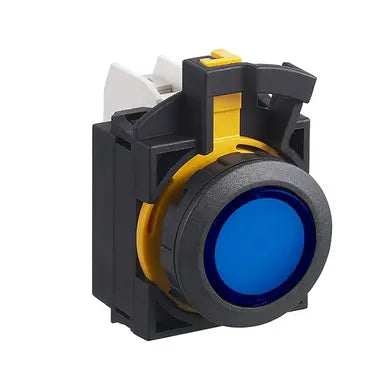

IDEC LED Panel Mount Indicators Pilot Light 22MM 24V - CW1P-1EQ4S

IDEC LED Panel Mount Indicators Pilot Light 22MM 24V - CW1P-1EQ4S

IDEC

$45.00
$45.00 $70.00
Tax included.

CW1P-1EQ4S

3 in stock

IDEC CW 22mm Flush Mount - CW1P-1EQ4S

Key Features

  • With a 2-stage contact block containing 2 contacts, a 4-contact configuration is possible (ensuring insulation between the 2 contacts).
  • Panel depth of 39.9mm (*11-stage contact block), 59.9mm (*22-stage contact block). Space-saving design is possible.
  • 3rd generation safety structure: 2-action release, integrated guard, IP20 finger protection structure.

Specifications

Bezel Type: φ28
Illumination Colour: Blue (S)
Illuminated Portion Shape: Round
Rated Working Voltage: 24V AC/DC
Degree of Protection: IP65
Terminal Shape: M3.5 Screw Terminal
Mounting Hole Size: φ22
IDEC CW1P-1EQ4S Datasheet
