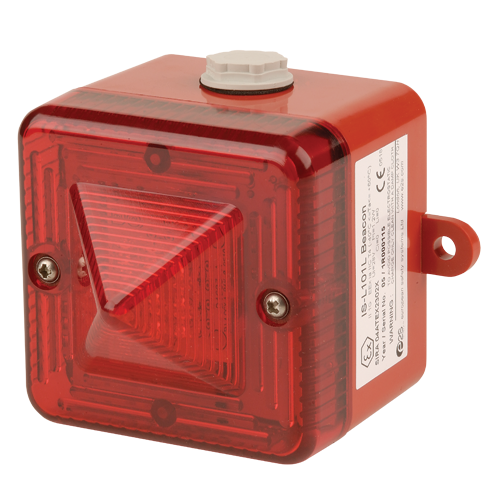

E2S IS-L101L Hazardous Area Intrinsically Safe LED Beacon

E2S

Colour
Amber
Blue
Green
Red

The IS-L101L unit is an intrinsically safe field mounting beacon which provides a bright flashing warning signal.

The unit can be used independently or combined with an IS-A105N 49 alarm sounder. Combination units can utilise a common zener barrier or galvanic isolator and may be coupled together or mounted seperately. With the IS-A105N the alarm accept function can be utilised. By closing a pair of external contacts (i.e push switch) the operator may silence the alarm for set periods between 5 seconds and 2 hours. If after the preset time the alarm condition still exists the sounder will activate again.

  • High output LED
  • IECEx EExia IIC T4 Intrinsically Safe, zone 0
  • IP66

Specifications

Voltage: 10-28VDC via zener barrier

Current: 25mA

Light Source: High output LED’s

Flash Rate: Stand-alone mode - 120fmp

Protection: IP56

Temp Rating (°C): -40 to +60

Duty: continuous

Cable Entry: 1x 20mm gland knockouts

Construction: Flame retardant ABS

Weight: 0.4Kg

Approval: EEx ia IIC T4

Certificate: IECEx (SIR 04.0039X)



Unit may be powered by any certified zener barrier with output parameters not exceeding-Uo: 28VDC Io: 110mA Po: 0.8W

For more Specifications, please click here

Dimensions
