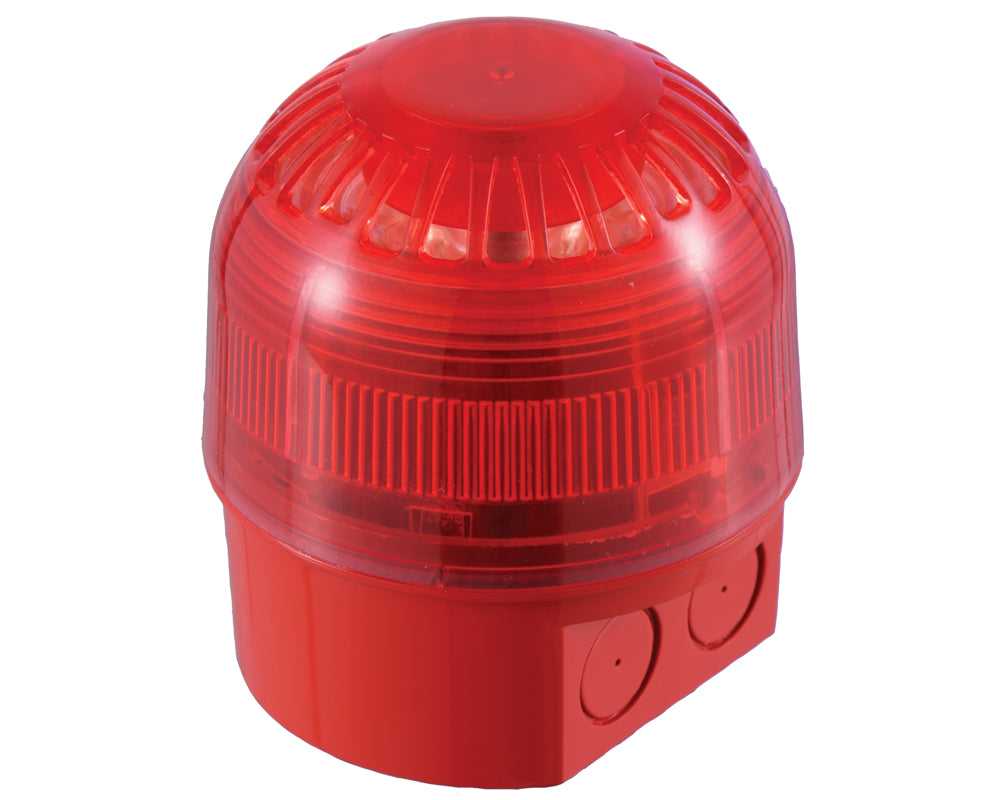

Klaxon Sonos Sounder/Beacon - LED - Up to 106dB at 1m


Lens Colour
Klaxon Logo - BNR Industrial

A general purpose electronic sounder for fire, security and industrial applications

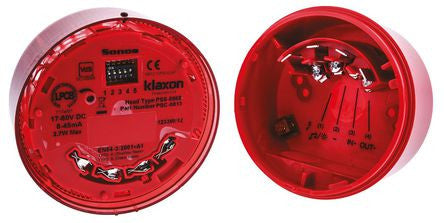

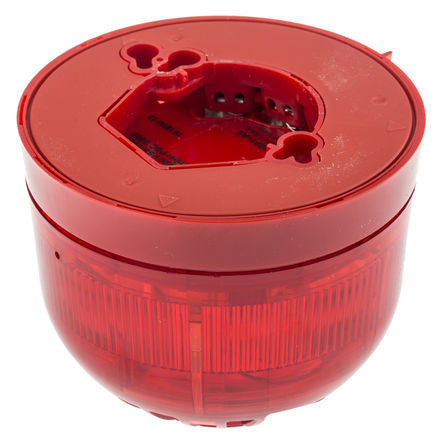

The Sonos Sounder Beacon is certified to EN54. With the TimeSaver base, connections are made to the base during the initial wiring phase which results in faster and more reliable installation. The sounder head ‘twists and clicks’ into the base on commissioning, avoiding the wiring and connection problems associated with traditional sounders. With a choice of 32 tones including all the major international standards, the Sonos Sounder Beacon has universal acceptance.


  • Low current LED beacon
  • 17-60VDC or 110/240VAC
  • Up to 106dB at 1m
  • Simple ‘First Fix’ installation
  • Weatherproof to IP65 (deep base units) IP21 (shallow base)
  • Choice of lens colours
  • Sounder and beacon can be controlled separately
  • Tone and volume can be preset or adjusted off-base - 20dB
  • Separate connections for sounder & beacon (17-60VDC Model Only)
  • Operating Temp: -25ºC to +70ºC
  • Construction: Flame Retardant Polycarbonate
  • Cable Entries: Deep Base: 2 x 20mm cable glands
  • Weight: 0.22kg (shallow base) 0.25kg (deep base)

DC Voltage Data Sheet

DC Instructions

AC Voltage Data Sheet

AC Instructions

Audio Tone Sample Chart - Click Here
