LAPP KABEL ÖLFLEX® CLASSIC 100 300/500V Colour-Coded Oil Resistant PVC Control Cable

LAPP KABEL



LAPP KABEL LOGO

Multiconductor Control Cable with Colour Coded cores Special Lapp PVC Compound P8/1 - Slim, Light, VDE certified

  • Space-saving installation due to small cable diameters
  • High electrical performance due to 4 kV test voltage
  • High flexibility due to short-twisted conductor layers
  • Now available with conductor cross-section from 2,5mm² as 300/500V version
Application
  • Plant engineering Industrial machinery Heating and air-conditioning systems Power stations
  • Dry or damp rooms that are subject to medium mechanical loads
  • For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Product Features
  • Flame-retardant according IEC 60332-1-2
  • Good chemical resistance

Approvals
  • Based on IEC 60227-5 and EN 50525-2-51
Cable Make-up
  • Fine-wire strand made of bare copper wires
  • PVC insulation LAPP P8/1
  • Cores twisted in layers
  • PVC outer sheath, grey (RAL 7001)

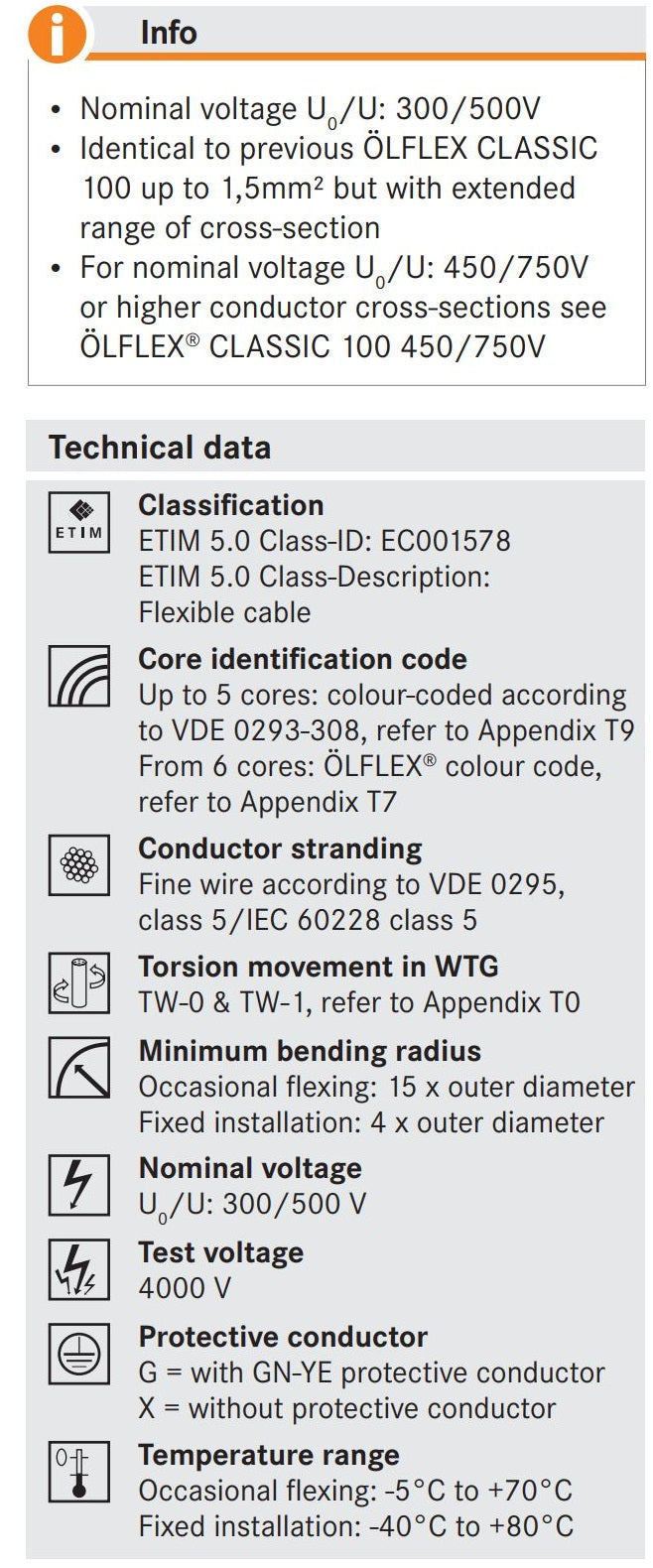

Click here for PDF Data Sheet

Give us a call on 03 9314 7877 for a quote

For large core sizes in 450/700V Click Here
