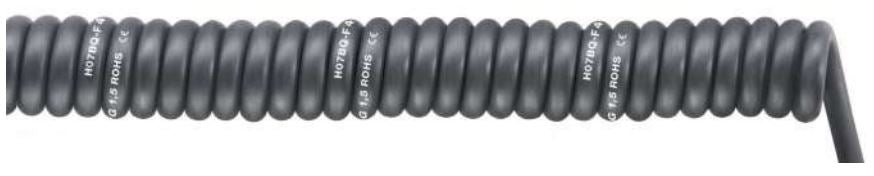

LAPP KABEL SPIRAL H07BQ-F Robust Black PUR Spiral Cable

LAPP KABEL



LAPP KABEL LOGO

Black PUR spiral cable, robust and with high recoiling forces. Colour-coded connection cable

Application
  • Increased durability under harsh conditions thanks to robust PUR outer sheath
  • Resistant to contact with many mineral oil based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
  • Wide application range
Area of use
  • Construction on engines and appliances with flexible power connections as well as dockyards
  • Construction of machinery and powered doors
  • Measurement and control technology
  • Mechanical engineering
  • Any commercial/industrial/agricultural facility: connection of tools, appliances and mobile motors
  • For indoor and outdoor use
Features
  • Black, robust outer PUR sheath
  • High tensile strength and abrasion resistance
  • High restoring forces
  • High resistance to oil, low temperatures, microbes and hydrolysis
Cable Make-up
  • Tinned stranded copper wire of braided conductor class 5 according to IEC 60228/VDE 0295
  • Core insulation: EI6 rubber according to EN 50525-1 & EN 50363-1/ VDE 0207-363-1; coloured according to HD 308/VDE 0293-308; VDE and HARD marking of unspiralled H07BQ-F as the basic material for the spiralling
  • Use of Talcum
  • Black, outer PUR Sheath made of TMPU according to EN 50525-2-21
  • Length of straight ends: 1st end = 200mm, 2nd end = 600mm
Norm references / Approvals
  • Based on EN 50525-2-21 H07BQ-F
  • The spiraling modified the properties of the <HAR> certified H07BQ-F cable (sold by the meter) that certain technical requirements stipulated by the H07BQ-F standard are no longer complied with the following spiralling. As a result the <HAR> H07BQ-F design certification of the H07BQ-F cable, also identifiable on the spiral cable, is no longer valid in the conjunction with the spiraled piece. This is a completely logical consequence of the spiraling processing steps.
