Home   /   Products   /   MEAN WELL SDR-480 Slim, High Reliability 480W Din Rail PSU

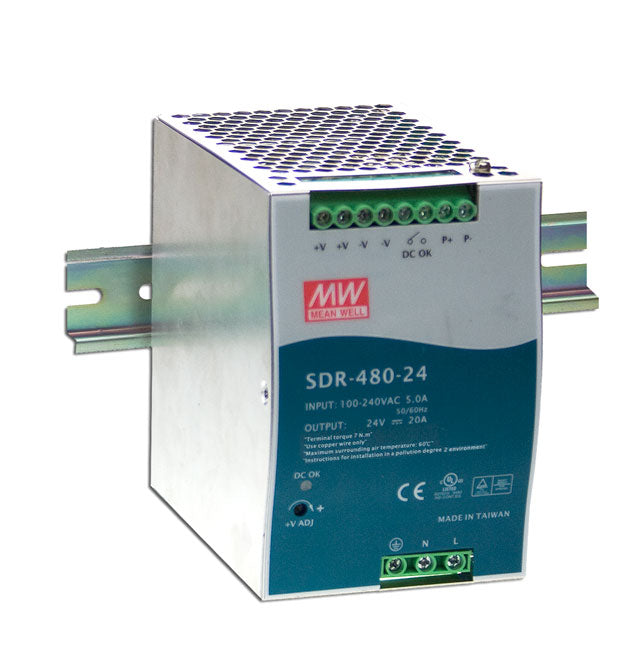

MEAN WELL SDR-480 Slim, High Reliability 480W Din Rail PSU

Mean Well

$420.00

Model

  • High efficiency 94% & low dissipation
  • 150% peak load capability
  • Built-in active PFC, PF>0.93
  • Installable on DIN rail TS-35/7.5 or 15
  • Built-in DC OK relay contact
  • 100% full load burn-in test

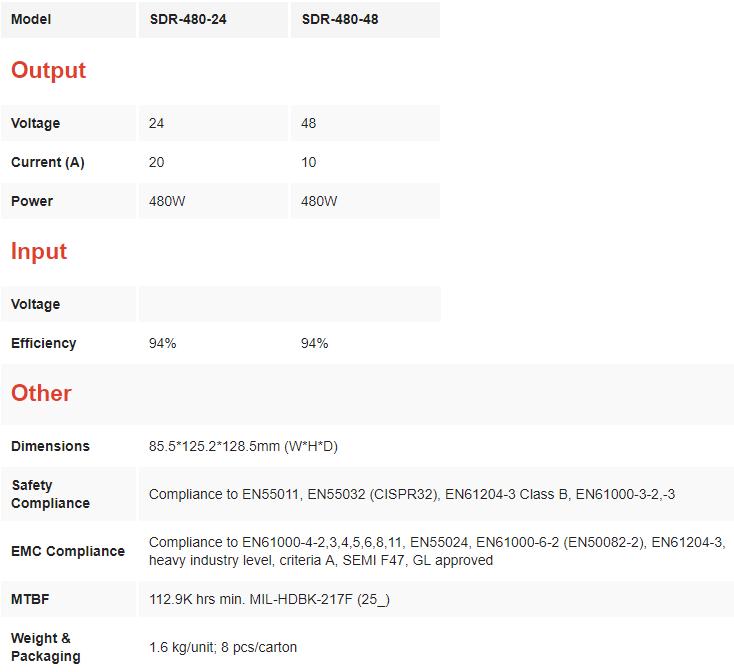

Click Here for PDF Data Sheet

PN# SDR-480-24

PN# SDR-480-48

Collections: Din Rail Mount PSU, Mean Well Power Supplies, New Products, Power Supplies
