SP-500-24

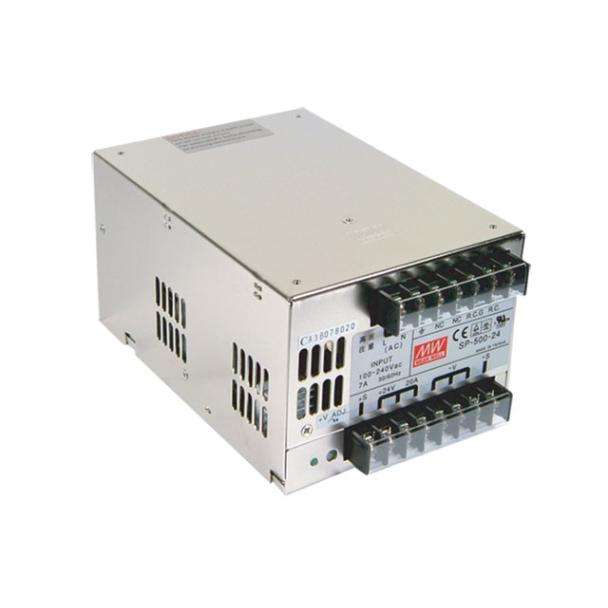

The Mean Well SP-500-24 is a 480W enclosed switching power supply delivering a regulated 24V DC output at 20A, with built-in active power factor correction (PF>0.95). Part of Mean Well's proven SP-500 series, it accepts a universal full-range AC input of 88–264VAC (or 124–370VDC), making it suitable for Australian 240V single-phase supply without any input selection.
Forced air cooling is handled by a built-in DC fan with intelligent fan ON-OFF control, keeping noise down under light loads. Remote ON-OFF control and remote sense functions are built in, allowing the supply to be switched externally and to compensate for voltage drop over long output cable runs — useful in control panels, machinery and distributed 24V DC systems.
Key Features
- 480W rated output — 24V DC at 20A
- Universal full-range AC input, 88–264VAC / 124–370VDC
- Built-in active PFC function, PF>0.95
- Output voltage adjustable 20–26.4V DC
- Protections: short circuit / overload / over voltage / over temperature
- Forced air cooling by built-in DC fan with fan ON-OFF control
- Built-in remote ON-OFF control and remote sense function
- 3-year manufacturer warranty
Technical Specifications
| Output Voltage | 24V DC (adjustable 20–26.4V) |
| Rated Current | 20A |
| Rated Power | 480W |
| Input Voltage | 88–264VAC / 124–370VDC (full range) |
| Input Frequency | 47–63Hz |
| Power Factor | >0.95 (active PFC) |
| Efficiency (typ.) | 85.5% |
| Ripple & Noise (max.) | 240mVp-p |
| Cooling | Forced air by built-in DC fan (fan ON-OFF control) |
| Working Temperature | -10°C to +50°C (refer to derating curve) |
| Protections | Short circuit, overload, over voltage, over temperature |
| Functions | Remote ON-OFF control, remote sense |
| Safety Standards | UL60950-1, TUV EN60950-1 approved |
| MTBF | 133.4K hrs min. (MIL-HDBK-217F, 25°C) |
| Dimensions (L x W x H) | 170 x 120 x 93 mm |
| Weight | 1.9 kg |
| Warranty | 3 years |
Typical applications include industrial control panels, automation machinery, 24V DC distribution, motor and actuator supplies, and LED or signalling systems requiring a robust, PFC-equipped 24V source. Buy online from BNR Industrial Automation, Australia.
